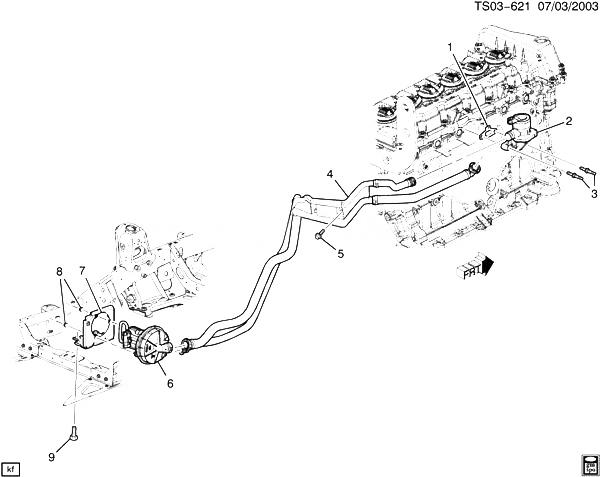

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24577193 |
ПРОКЛАДКА, SECD AIR INJN PIPE CVR (ACDelco #219-351)
| ST1 (LL8) |
2004-2009 |
01 |
|
| 002 |
12619128 |
VALVE, SECD AIR INJN CHK (ACDelco #214-2222)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 003 |
11518994 |
STUD, SECD AIR INJN PIPE CVR (3.671) |
ST1 (LL8) |
2004-2009 |
02 |
| 004 |
15240704 |
HOSE, SECD AIR INJN PUMP
| ST155 (LL8, K18) |
2004-2005 |
01 |
|
| 005 |
11519861 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 9.8, 6280M, MACH, MAT-PT (SECD AIR INJN PIPE BRKT)
|
2004-2009 |
01 |
|
| 006 |
12574379 |
PUMP, SECD AIR INJN (INCLS 8) (ACDelco #215-454)
| ST155 (LL8, K18) |
2004-2005 |
01 |
|
| 007 |
88983115 |
BRACKET, SECD AIR INJN PUMP |
ST155 (LL8, K18) |
2005-2005 |
01 |
| 008 |
|
ГАЙКА, SECD AIR INJN PUMP (PART OF 6) |
|
2004-2009 |
|
| 009 |
11588564 |
БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (SECD AIR INJN PUMP BR) |
|
2004-2009 |
03 |
