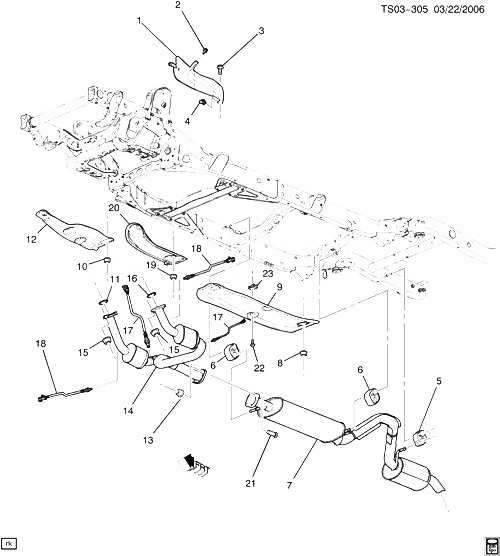

(TS03-305) - 2005 ST155(06) ВЫХЛОПНАЯ СИСТЕМА (LH6/5.3P) CHEVROLET TRAILBLAZER LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15170403 SHIELD, EXH HT ST1 2004-2005 01
002 25642453 RETAINER, EXH H/SHLD (6MM DIA) (3.671) ST1 2004-2005 01
003 11519862 БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, 6280M, MACH, MAT-PT (EXH H/SHLD) 2004-2005 01
004 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (EXH H/SHLD) 2004-2005 01
005 15120136 INSULATOR, EXH MUFF HNGR (W/2 HANGER HOLES) (3.616) (REAR HANGER) ST1 2005-2005 01
005 15120136 INSULATOR, EXH MUFF HNGR (W/2 HANGER HOLES) (3.616) (REAR HANGER) ST155 (LH6) 2005-2005 02
006 15120137 INSULATOR, EXH MUFF HNGR (CENTER HANGER) ST1 2004-2005 01
008 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EXH MUFF H/SHLD) 2004-2005 02
009 15821715 SHIELD, EXH MUFF HT ST155 2004-2005 01
010 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CTLTC CONV H/SHLD) 2004-2005 05
011 15035747 SEAL, EXH MANIF PIPE ST1 (LH6) 2005-2005 01
012 15886422 SHIELD, CTLTC CONV HT ST1 (06-36) 2004-2005 01
013 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF) 2004-2005 02
014 15119821 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) ST155 (LH6) 2005-2005 01
014 15119821 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) ST155 (LH6) 2005-2005 01
015 15032594 ГАЙКА, EXH MANIF PIPE (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) ST1 2005-2005 AR
016 15035747 SEAL, EXH MANIF PIPE ST1 (LH6) 2005-2005 01
016 15077362 SEAL, EXH MANIF PIPE ST1 (LH6) 2005-2005 02
017 12573168 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-1688) ST1 (LH6) 2005-2005 02
018 12573167 ДАТЧИК, HTD OXY (POSN 2) (PRE CONVERTER) (ACDelco #213-1687) ST1 (LH6) 2005-2005 02
019 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CTLTC CONV H/SHLD) 2004-2005 02
020 15932097 SHIELD, CTLTC CONV HT ST1 (LH6) 2005-2005 01
021 15028620 STUD, EXH PIPE (PART OF 7) (M10X1.5X30MM) (BUTTON HEAD) ST1 (06) (LH6, LL8) 2005-2005 02
022 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (EXH MUFF H/SHLD) 2004-2005 01
023 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (EXH MUFF H/SHLD) 2004-2005 01
