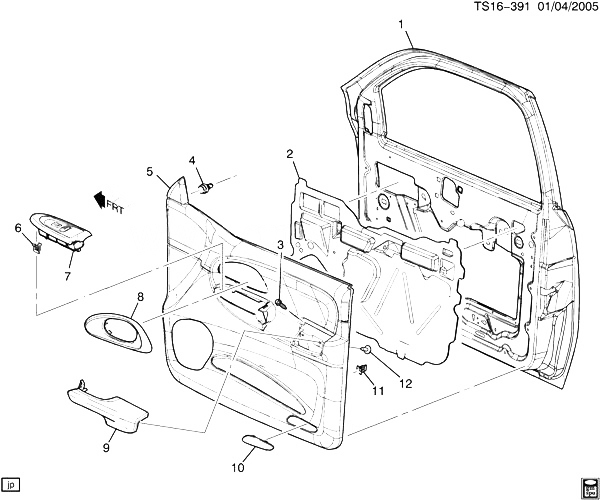

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88937089 |
ДВЕРЬ, ПЕРЕДНЯЯ SI (W/O HINGES)
| ST1 (06) |
2002-2009 |
01 |
|
| 002 |
25779164 |
DEFLECTOR, FRT S/D WAT |
ST158 |
2005-2006 |
01 |
| 003 |
11517342 |
БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (FRT S/D T/PNL) |
|
2002-2009 |
04 |
| 004 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 5)
|
2002-2009 |
08 |
|
| 005 |
10384695 |
PANEL, FRT S/D TR (INCLS 4, 9-12) (GRAY)
| ST1 (X88, YC5, YC6, 28I) |
2005-2005 |
01 |
|
| 005 |
10384696 |
PANEL, FRT S/D TR (INCLS 4, 9-12) (EBONY) |
ST1 (X88, YC5, YC6, 48I) |
2005-2005 |
01 |
| 005 |
10395854 |
PANEL, FRT S/D TR (INCLS 4, 9-12) (CASHMERE) |
ST1 (X88, YC5, YC6, 27I) |
2005-2005 |
01 |
| 005 |
15808467 |
PANEL, FRT S/D TR (INCLS 4, 9-12) (CASHMERE) |
ST1 (X88, 27I) (EXC YC5, YC6) |
2005-2005 |
01 |
| 005 |
25933504 |
PANEL, FRT S/D TR (INCLS 4, 9-12) (GRAY) |
ST1 (X88, 28I) (EXC YC5, YC6) |
2005-2005 |
01 |
| 005 |
25933505 |
PANEL, FRT S/D TR (INCLS 4, 9-12) (EBONY) |
ST1 (X88, 48I) (EXC YC5, UC6) |
2005-2005 |
01 |
| 006 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 7) |
|
2002-2009 |
03 |
| 007 |
10364167 |
SWITCH, DR LK SI WDO (INCLS 6) (PEWTER) (W/MOD THAT NEEDS PROGMG SEE SRVC MANL) |
ST1 (DK2, DK9, DR1, X88, 28I, 48I) (EXC KA1) |
2005-2005 |
01 |
| 007 |
10364175 |
SWITCH, DR LK SI WDO (INCLS 6) (PEWTER) (W/MOD THAT NEEDS PROGMG SEE SRVC MANL) |
ST1 (KA1, X88, 92I) (EXC VCG) |
2002-2005 |
01 |
| 007 |
15133129 |
SWITCH, DR LK SI WDO (INCLS 6) (EBONY) (W/PLT) |
ST1 (DK2, DK9, DR1, X88, 48I) (EXC KA1) |
2005-2005 |
01 |
| 007 |
15133131 |
SWITCH, DR LK SI WDO (INCLS 6) (GRAY) (W/PLT) |
ST1 (DL2, X88, 28I) (EXC KA1) |
2005-2005 |
01 |
| 007 |
15133132 |
SWITCH, DR LK SI WDO (INCLS 6) (EBONY) (INCLS PLATE) |
ST1 (DL2, X88, 48I) (EXC KA1) (EXPORT) |
2005-2005 |
01 |
| 007 |
15133134 |
SWITCH, DR LK SI WDO (INCLS 6) (EBONY) (W/PLT) |
ST1 (DS3, KA1, X88, 48I) (EXC VCG) |
2005-2005 |
01 |
| 007 |
15133137 |
SWITCH, DR LK SI WDO (INCLS 6) (EBONY) (INCLS PLATE)
| ST1 (DL2, KA1, VCG, X88, 48I) (EXPORT) |
2005-2005 |
01 |
|
| 007 |
15133138 |
SWITCH, DR LK SI WDO (INCLS 6) (GRAY) (INCLS PLATE)
| ST1 (DL2, KA1, VCG, X88) (EXPORT) |
2005-2005 |
01 |
|
| 007 |
15133161 |
SWITCH, DR LK SI WDO (INCLS 6) (GRAY) (INCLS PLATE) |
ST1 (DK2, DS3, KA1, VCG, X88, 28I) (EXPORT) |
2005-2005 |
01 |
| 007 |
15133162 |
SWITCH, DR LK SI WDO (INCLS 6) (EBONY) (W/PLT) |
ST1 (DK2, DS3, KA1, VCG, X88, 48I) |
2005-2005 |
01 |
| 007 |
15212585 |
SWITCH, DR LK SI WDO (INCLS 6) (CASHMERE) |
ST1 (DK2, DS3, KA1, VCG, X88, 27I) |
2005-2005 |
01 |
| 007 |
15212586 |
SWITCH, DR LK SI WDO (INCLS 6) (CASHMERE) |
ST1 (DL2, X88, 27I) (EXC KA1) |
2005-2005 |
01 |
| 007 |
15212587 |
SWITCH, DR LK SI WDO (INCLS 6) (CASHMERE) |
ST1 (DS3, KA1, X88) (EXC VCG) |
2005-2005 |
01 |
| 007 |
15212588 |
SWITCH, DR LK SI WDO (INCLS 6) (CASHMERE) |
ST1 (DL2, KA1, VCG, X88, 27I) |
2005-2005 |
01 |
| 007 |
15212591 |
SWITCH, DR LK SI WDO (INCLS 6) (CASHMERE) |
ST1 (DK2, DK9, DR1, X88, 27I) (EXC KA1) |
2005-2005 |
01 |
| 008 |
15214502 |
BEZEL, FRT S/D I/S HDL (EBONY)
| ST1 (06) (X88) |
2002-2007 |
01 |
|
| 009 |
15109985 |
ARMREST, FRT S/D (PART OF 5) (GRAY) |
ST1 (X88, 28I) |
2005-2007 |
01 |
| 009 |
15109986 |
ARMREST, FRT S/D (PART OF 5) (EBONY) |
ST1 (X88, 28I) |
2005-2005 |
01 |
| 009 |
15109987 |
ARMREST, FRT S/D (PART OF 5) (CASHMERE) |
ST1 (X88, 27I) |
2005-2007 |
01 |
| 010 |
15055842 |
REFLECTOR, FRT S/D WRNG (PART OF 5)
| ST158 |
2005-2006 |
01 |
|
| 011 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 5)
|
2002-2009 |
02 |
|
| 012 |
11609461 |
БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (PART OF 5)
|
2002-2009 |
03 |
|
