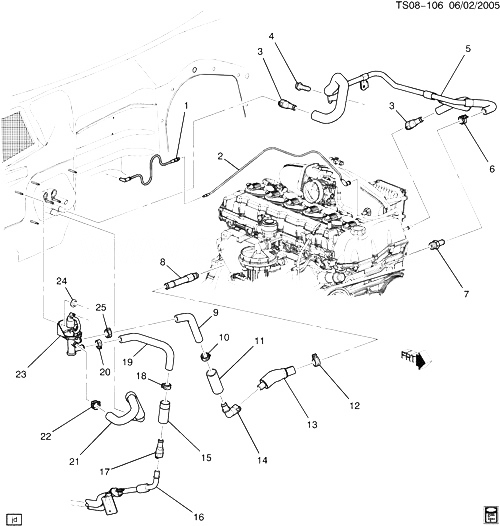

(TS08-106) - 2005 ST158(06) ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ ЧАСТЬ 1 ПЕРЕДНИЙ (LL8/4.2S)(1ST DES-W/O AUX PUMP) CHEVROLET TRAILBLAZER EXT LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15191084 HOSE, HTR WAT SHUTOFF VLV ACTR INL (VALVE SIDE) (*KIT1) ST158 (06) (CJ2, CJ3) 2003-2005 01
002 15183895 HOSE, HTR WAT SHUTOFF VLV ACTR INL ST158 (06) (LL8, CJ2, CJ3) 2003-2005 01
003 15119175 CONNECTOR, AUX HTR INL FRT HOSE (PART OF 5) (STRAIGHT) ST1 (LL8, CJ2, CJ3) 2005-2005 01
003 15139564 CONNECTOR, AUX HTR INL FRT HOSE (PART OF 5) (90 DEGREE ELBOW) (8.866) (ACDelco #15-34069) ST1 (CJ2, CJ3) 2005-2005 01
004 11519894 BOLT-HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) 2002-2005 11
005 15138451 HOSE, HTR OTLT (INCLS 3, 6) (CODE 8451, 9171, 5658) ST158 (06) (LL8, CJ2, CJ3) 2003-2005 01
006 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 5) 2002-2005 01
007 12567908 FITTING, HTR OTLT HOSE ST1 (LL8) 2005-2005 01
008 12598077 FITTING, HTR INL HOSE (ACDelco #15-31230) ST1 (LL8) 2005-2005 01
009 HOSE, HTR WA SHUTOFF VLV INL (*KIT1) 2005-2005
010 01470030 CLAMP, WORM TYPE (11/16 TO 1 5/16) (HTR WA SHUTOFF VLV INL HOSE) (*KIT1) (ACDelco #1470030) 2002-2005 01
011 SLEEVE, HTR HOSE (*KIT1) 2005-2005
012 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 13) 2002-2005 01
013 15180574 HOSE, HTR INL (INCLS 12) (CODE 0574, 9924) ST158 (06) (LL8, CJ2, CJ3) 2003-2005 01
013 19130076 HOSE, HTR INL (INCLS 12) ST1 (LL8, CJ2, CJ3) 2003-2005 01
014 CONNECTOR, HTR INL HOSE (*KIT1) 2005-2005
015 SLEEVE, HTR HOSE (*KIT1) 2005-2005
016 TUBE, AUX A/C EVPR (W/AUX HTR INL PIPE) (СМ. ГРУППУ 08.000 ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ REAR FOR DETAILED ILLUSTRATED VIEW) 2002-2005
017 15119175 CONNECTOR, AUX HTR INL FRT HOSE (STRAIGHT) (*KIT1) ST1 (LL8, CJ2, CJ3) 2005-2005 01
017 15139564 CONNECTOR, AUX HTR INL FRT HOSE (90 DEGREE ELBOW) (*KIT1) (8.866) (ACDelco #15-34069) ST1 (CJ2, CJ3) 2005-2005 01
018 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (AUX HTR INL FRT HOSE) (*KIT1) 2002-2005 01
019 HOSE, AUX HTR INL FRT (*KIT1) 2005-2005
020 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (AUX HTR INL FRT HOSE) (*KIT1) 2002-2005 01
021 HOSE, HTR INL (*KIT1) 2005-2005
022 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR WAT SHUTOFF VLV HOSE) (*KIT1) 2002-2005 01
023 15772294 VALVE, HTR WAT SHUTOFF (EXC HTR HOSES INL, OTLT SHUTOFF) (*KIT1) (ACDelco #15-5886) ST158 (06) (CJ2, CJ3) 2004-2005 01
024 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (HTR WAT SHUTOFF VLV) 2002-2005 01
025 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (HTR WAT SHUTOFF VLV HOSE) (*KIT1) 2002-2005 01
K01 15119174 VALVE, HTR WAT SHUTOFF (W/O AUX PUMP, FOR 2ND DES SEE 15225911) (INCLS 1, 9-11, 14, 15, 17-23, 25) (ACDelco #15-50140) ST158 (06) (LL8, CJ2, CJ3) 2005-2005 01
