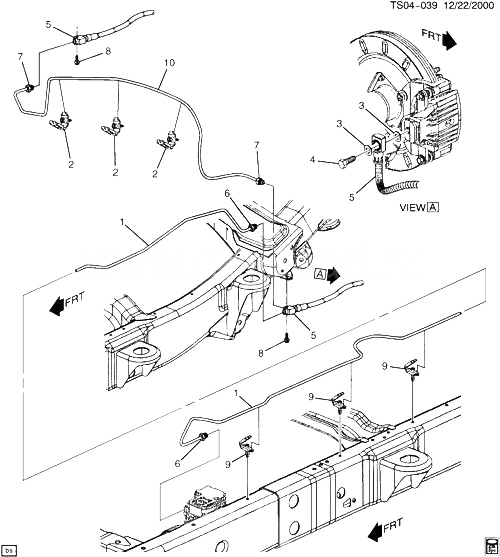

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12548430 |
TUBING, BRK, 1/4 X 16 FT ROLL, STL (BRK FUEL FEED FUEL RTN EVAP EMIS)
|
2002-2005 |
AR |
|
| 002 |
15092110 |
CLIP, RR BRK C/OVR PIPE (W/RET ARM) (HOLDS ONE 6.75 NYLON COATED TUBE) |
ST1 (JF8) |
2002-2005 |
03 |
| 003 |
|
REAR BRAKE HOSE WASHER (PART OF 5) |
|
2002-2005 |
|
| 004 |
|
REAR BRAKE HOSE BOLT (PART OF 5) |
|
2002-2005 |
|
| 005 |
15134754 |
HOSE, RR BRK (INCLS 3, 4) (ACDelco #176-1003)
| ST1 (JF8) |
2002-2005 |
01 |
|
| 005 |
15877297 |
HOSE, RR BRK (INCLS 3, 4) (ACDelco #15877297)
| ST1 (JF8) |
2002-2005 |
01 |
|
| 006 |
15103241 |
ГАЙКА, RR BRK INTER PIPE (1/4 TUBE STL) |
ST158 (JF8) |
2004-2005 |
02 |
| 007 |
15103241 |
ГАЙКА, RR BRK C/OVR PIPE (1/4 TUBE STL) |
ST1 (JF8) |
2004-2005 |
02 |
| 008 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (RR BRK HOSE FTG)
|
2002-2005 |
02 |
|
| 009 |
15092363 |
CLIP, BRK PIPE (PUSH PIN W/2 HOLES 6.75MM) |
ST158 (JF8) |
2002-2005 |
05 |
| 010 |
12548430 |
TUBING, BRK, 1/4 X 16 FT ROLL, STL (BRK FUEL FEED FUEL RTN EVAP EMIS)
|
2002-2005 |
AR |
|
