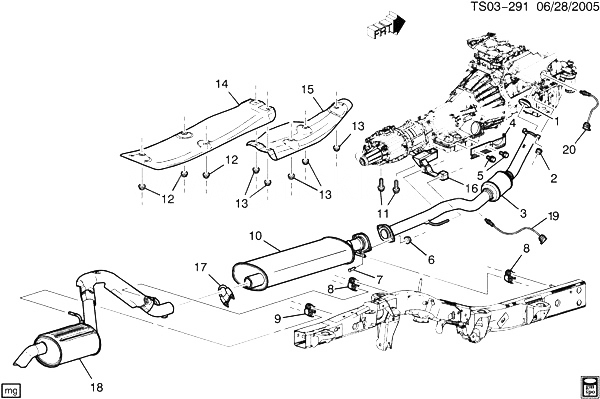

(TS03-291) - 2002-2005 ST158 ВЫХЛОПНАЯ СИСТЕМА (LL8/4.2S) CHEVROLET TRAILBLAZER EXT LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15167765 SEAL, EXH MANIF PIPE ST1 (LL8) 2002-2005 01
002 15032594 ГАЙКА, EXH MANIF PIPE (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) ST1 2005-2005 AR
003 15216001 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) ST158 (LL8) 2004-2005 01
004 15205182 SHIELD, CTLTC CONV HT (MOUNTS TO RH SIDE OF TRANS) ST1 (06-36) 2005-2005 01
005 11515754 БОЛТ, HVY HEX HD, M8X1.25X12, 18 O.D., 10.9, ZE (CTLTC CONV H/SHLD) 2002-2005 02
006 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF) 2002-2005 02
007 15028620 STUD, EXH PIPE (PART OF 10) (M10X1.5X30MM) (BUTTON HEAD) ST1 (06) (LH6, LL8) 2005-2005 02
008 15120137 INSULATOR, EXH MUFF HNGR (CENTER HANGER) ST1 2002-2005 01
009 15120136 INSULATOR, EXH MUFF HNGR (W/2 HANGER HOLES) (3.616) (REAR HANGER) ST1 2005-2005 01
009 15120136 INSULATOR, EXH MUFF HNGR (W/2 HANGER HOLES) (3.616) (REAR HANGER) ST1 (LL8) 2005-2005 02
010 15847577 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 7, 17, 18) ST158 (06) (LL8) 2002-2005 01
010 15847577 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 7, 17, 18) (3.701) ST158 (06) (LL8) 2002-2005 01
010 15847577 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 7, 17, 18) (3.701) ST158 (06) (LL8) 2002-2005 01
011 11518388 БОЛТ, TRANS MT (M10X1.5X45) T1 2005-2005 02
012 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (EXH MUFF H/SHLD) 2002-2005 03
013 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (CTLTC CONV H/SHLD) 2002-2005 05
014 15821716 SHIELD, EXH MUFF HT ST158 2002-2005 01
015 15886422 SHIELD, CTLTC CONV HT ST1 (06-36) 2004-2005 01
016 89040447 BRACKET, EXH PIPE HNGR ST1 (LL8, M30) 2005-2005 01
017 CLAMP, EXH PIPE (2.5) (PART OF 10) 2002-2005
018 PIPE, EXH TAIL (PART OF 10) 2002-2005
019 12578624 ДАТЧИК, HTD OXY (POSN 2) (ACDelco #213-1574) ST1 (LL8) 2005-2005 01
020 12586996 ДАТЧИК, HTD OXY (POSN 1) (IN EXHAUST MANIFOLD) (ACDelco #213-1698) ST1 (LL8) 2004-2005 01
020 19138017 ДАТЧИК, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (4 WIRE) (ACDelco #213-3882) (ALL MAKES) T158 (06) (LL8) 2005-2005 01
