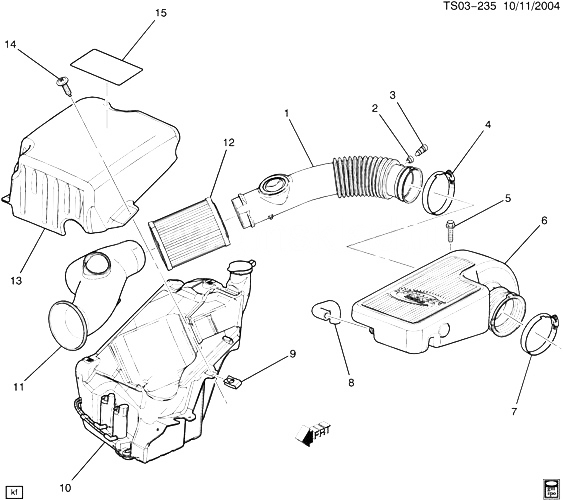

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15181115 |
DUCT, A/CL OTLT (W/INT AIR TEMP SEN) (INCLS 2-4) (INCLS DUCT, SENSOR, CLAMP, COVER, GROMMET) |
ST158 (LL8) |
2005-2005 |
01 |
| 002 |
|
GROMMET, INT AIR TEMP SEN (PART OF 1) |
|
2005-2005 |
|
| 003 |
12160244 |
ДАТЧИК, INT AIR TEMP (PART OF 1) (ACDelco #213-243) |
ST1 |
2005-2005 |
01 |
| 003 |
88864354 |
ДАТЧИК, INT AIR TEMP (PART OF 1) (ALL MAKES) |
ST155, 158 (06) (LL8) |
2005-2005 |
01 |
| 004 |
15045899 |
CLAMP, A/CL OTLT DUCT (PART OF 1) |
ST1 (LL8) |
2005-2005 |
01 |
| 005 |
11517896 |
БОЛТ, HEX W/FL WA, M6X1X40, 29.53 THD, 17 OD, 9.8, 6280M, MACH, P-PT, CONE-PT (A/CL RESO) |
|
2005-2005 |
02 |
| 006 |
15899457 |
RESONATOR, A/CL (INCLS 7, 8)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 007 |
15045899 |
CLAMP, A/CL OTLT DUCT (PART OF 6) |
ST1 (LL8) |
2005-2005 |
01 |
| 008 |
24577310 |
HOSE, PCV (CAM COVER TO AIR CLEANER) (PART OF 6) |
ST1 (LL8) |
2005-2005 |
01 |
| 009 |
11516372 |
ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (PART OF 10)
|
2005-2005 |
03 |
|
| 010 |
|
CONTAINER, WSWA SOLV (W/PUMP) (СМ. ГРУППУ 16.000 WIPER SYSTEM/WINDSHEILD FOR DETAILED ILLUSTRATED VIEW) (INCLS 9) |
|
2005-2005 |
|
| 011 |
15149664 |
SNORKEL, A/CL
| ST1 (LL8) |
2005-2005 |
01 |
|
| 012 |
15036141 |
ЭЛЕМЕНТ, ВОЗДУШНЫЙ ФИЛЬТР (ACDelco #15036141) |
ST1 (LL8) |
2005-2005 |
01 |
| 012 |
19114119 |
ЭЛЕМЕНТ, ВОЗДУШНЫЙ ФИЛЬТР (ACDelco #A2014CF) (DURAPACK) (BULK PKG, QTY 6)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 013 |
15810294 |
HOUSING, A/CL UPR (INCLS 14, 15) (NOTECLEAN AIR INDICATOR PROVISION NO LONGER AVAILABLE)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 014 |
15045901 |
БОЛТ, A/CL HSG (PART OF 13)
| ST1 (LL8) |
2005-2005 |
03 |
|
| 015 |
15103172 |
LABEL, A/C REFRIG WRNG (PART OF 13) (ENGLISH/JAPANESE) |
ST1 (CJ2, CJ3, VBW) (EXPORT) |
2005-2005 |
01 |
| 015 |
15103173 |
LABEL, A/C REFRIG WRNG (PART OF 13) (ENGLISH/FRENCH) (MUST HAVE VIN# WHEN ORDERING) |
ST1 |
2005-2005 |
01 |
