| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

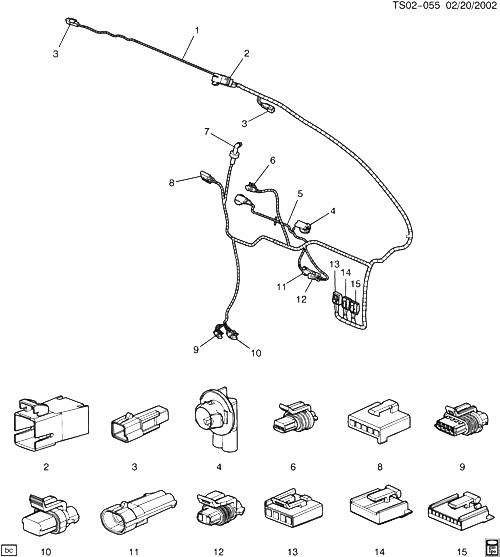

| 001 |
15240054 |
HARNESS, L/GATE WRG (INCLS 2, 3, 6-10, 12-15) |
ST158 (06) |
2005-2006 |
01 |
| 001 |
15240054 |
HARNESS, L/GATE WRG (INCLS 2, 3, 6-10, 12-15) (2.480) |
ST158 (06) |
2005-2006 |
01 |
| 002 |
15305872 |
CONNECTOR, INLINE-TO BODY HARN (SQUARE) (PART OF 1) (BLACK) (6-WAY MALE MP 280) (W/LEADS) (13.100) (ACDelco #PT1013) |
ST155, 158 |
2004-2005 |
01 |
| 003 |
12101893 |
CONNECTOR, INLINE-TO R/WDO DEFG (PART OF 1) (BLACK) (1-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT163) |
ST155, 158 |
2004-2005 |
01 |
| 004 |
88986416 |
SOCKET, RR LIC PLT LP (PART OF 5) (GRAY) (2-WAY FEMALE) (W/LEADS) (2.596) (ACDelco #LS44)
| ST1 |
2005-2009 |
02 |
|
| 005 |
15271206 |
HARNESS, RR LIC PLT LP WRG (INCLS 4, 11)
| ST1 |
2005-2009 |
01 |
|
| 006 |
19115673 |
CONNECTOR, SW-L/GATE AJAR IND (PART OF 1) (BLACK) (4-WAY FEMALE) (W/LEADS) (W/TPA) (ACDelco #PT2203) |
ST1 |
2002-2005 |
01 |
| 006 |
88987993 |
CONNECTOR, SW-L/GATE AJAR IND (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (4.651) (ACDelco #PT1798) |
ST1 |
2002-2008 |
01 |
| 007 |
88987515 |
HOSE, R/WDO WA PUMP (PART OF 1) (LIFTGATE)
| ST158 (06) |
2002-2006 |
01 |
|
| 008 |
12167129 |
CONNECTOR, MOT-R/WDO WPR (PART OF 1) (BLACK) (5-WAY FEMALE) (W/LEADS) (M/P 280) (10.525) (ACDelco #PT795) |
ST1 |
2002-2008 |
01 |
| 009 |
19115673 |
CONNECTOR, SW-L/GATE AJAR IND (PART OF 1) (BLACK) (4-WAY FEMALE) (W/LEADS) (W/TPA) (ACDelco #PT2203) |
ST158 (06) |
2002-2005 |
01 |
| 010 |
12101855 |
CONNECTOR, ACTR-L/GATE LAT (SEALED) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT247) |
ST1 |
2004-2008 |
01 |
| 011 |
12085535 |
CONNECTOR, INLINE-TO L/GATE HARN (PART OF 5) (BLACK) (2-WAY FEMALE) (W/LEADS) (SQUARE) (2.535) (ACDelco #PT146)
| ST1 |
2003-2006 |
01 |
|
| 011 |
12162343 |
CONNECTOR, INLINE-TO L/GATE HARN (PART OF 5) (GRAY) (2-WAY MALE) (W/O LEADS) (4.720) |
ST1 |
2002-2008 |
01 |
| 011 |
15305888 |
CONNECTOR, INLINE-TO L/GATE HARN (PART OF 5) (BLACK) (6-WAY FEMALE W/LEADS) (13.090) (ACDelco #PT1032) |
ST1 |
2005-2009 |
01 |
| 012 |
15306302 |
CONNECTOR, INLINE-TO RR LIC PLT LP (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (4.710) (ACDelco #PT1357)
| ST1 |
2002-2008 |
01 |
|
| 013 |
12125636 |
CONNECTOR, MDL-DR LK CONT (PART OF 1) (BLACK) (4-WAY FEMALE) (W/LEADS) (12.243) (ACDelco #PT548) |
ST1 |
2002-2009 |
01 |
| 014 |
12101874 |
CONNECTOR, MDL-DR LK CONT (PART OF 1) (BLACK) (8-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT265) |
ST1 |
2002-2005 |
01 |
| 015 |
12102628 |
CONNECTOR, MDL-DR LK CONT (PART OF 1) (NATURAL) (9-WAY FEMALE) (W/LEADS) (4.329) (ACDelco #PT315) |
ST1 |
2002-2005 |
01 |
