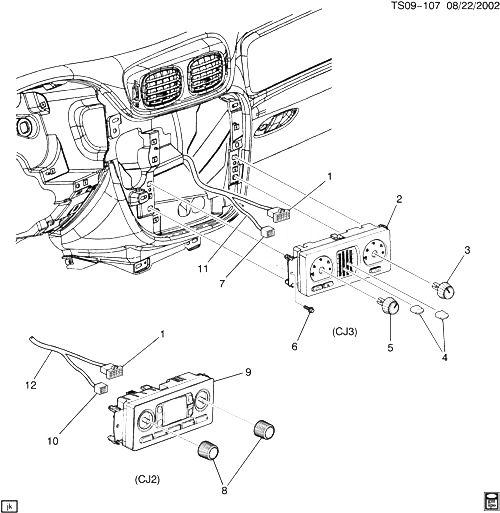

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12110206 |
CONNECTOR, CONT-HTR A/C (PART OF 11, 12) (BLUE) (24-WAY FEMALE) (W/O LEADS) (3.670) |
ST1 |
2002-2008 |
01 |
| 002 |
10395426 |
CONTROL, HTR A/C (INCLS 3-5) (LABELED 10395426, 15220318, 15203181, 15132072, OR 15195333) (ACDelco #15-73227) |
ST1 (06) (CJ3, C49) |
2003-2007 |
01 |
| 002 |
25945046 |
CONTROL, HTR A/C (INCLS 3-5) (ACDelco #15-73933) (LABELED 25945046) |
ST1 (06) (CJ3, C49) |
2005-2007 |
01 |
| 002 |
25945047 |
CONTROL, HTR A/C (INCLS 3-5) (ACDelco #15-73934) |
ST1 (06) (CJ3) (EXC C49) |
2003-2009 |
01 |
| 003 |
12227670 |
KNOB, HTR A/C CONT MODE (PART OF 2) (PART OF CONT IN I/P) (USED IN IP CONTROL FLOOR CONSOLE) |
ST1 (06) (CJ3) |
2003-2009 |
01 |
| 004 |
09369572 |
KNOB, HTR A/C CONT TEMP (SLIDING CONTROL) (PART OF 2) |
ST1 (06) (CJ3) |
2002-2009 |
02 |
| 005 |
12227670 |
KNOB, HTR A/C CONT BLO SW (PART OF CONT IN I/P) (PART OF 2) (PART OF CONT IN I/P) (USED IN IP CONTROL FLOOR CONSOLE) |
ST1 (06) (CJ3) |
2003-2009 |
01 |
| 006 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (HTR A/C CONT) (9.665)
|
2002-2009 |
02 |
|
| 007 |
|
CONNECTOR, MDL-HTR, A/C PROGMR (PART OF 11) |
|
2005-2009 |
|
| 008 |
09390673 |
KNOB, HTR A/C CONT TEMP (TURNING CONTROL) (PART OF 9) |
ST1 (CJ2) (EXC EC0) |
2002-2005 |
02 |
| 009 |
15814152 |
CONTROL, HTR A/C (INCLS 8) (ACDelco #15-73468) |
ST1 (CJ2, W49, X88, Z88, Z89) (EXC EC0) |
2005-2005 |
01 |
| 010 |
15336594 |
CONNECTOR, CONT-HTR A/C (PART OF 12) (GRAY) (12-WAY FEMALE) (W/O LEADS) |
ST1 |
2002-2005 |
01 |
| 011 |
|
HARNESS, I/P WRG (INCLS 1, 7) (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
| 012 |
|
HARNESS, I/P WRG (INCLS 1, 10) (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
