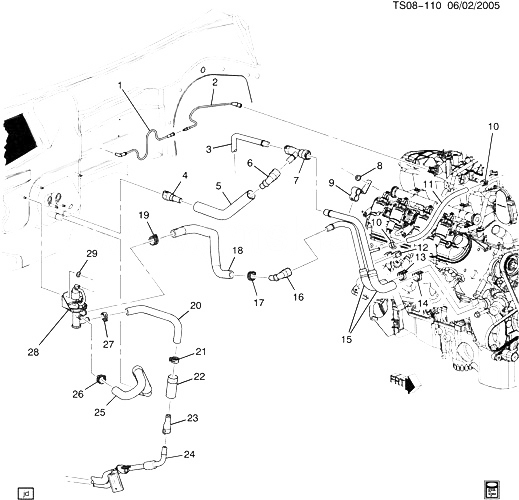

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15191084 |
HOSE, HTR WAT SHUTOFF VLV ACTR INL (VALVE SIDE) (*KIT1) |
ST158 (06) (CJ2, CJ3) |
2003-2005 |
01 |
| 002 |
15199572 |
HOSE, HTR WAT SHUTOFF VLV ACTR INL (ENGINE SIDE) |
ST158 (06) (LH6, CJ2, CJ3) |
2005-2005 |
01 |
| 003 |
|
TUBE, AUX A/C CMPR (W/AUX HTR OTLT PIPE) (INCLS 7) (СМ. ГРУППУ 08.000 ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2005 |
|
| 004 |
15761641 |
CONNECTOR, HTR OTLT HOSE (PART OF 5) |
ST158 (06) (LH6, CJ2, CJ3) |
2005-2005 |
01 |
| 005 |
15175351 |
HOSE, HTR OTLT (INCLS 4, 6) (TO HEATER CORE) |
ST158 (06) (LH6, CJ2, CJ3) |
2005-2005 |
01 |
| 006 |
|
CONNECTOR, HTR INL HOSE (PART OF 5) |
|
2005-2005 |
|
| 007 |
|
TEE, AUX HTR INL HOSE (PART OF 3) |
|
2005-2005 |
|
| 007 |
15161789 |
TEE, AUX HTR INL HOSE (ENGINE SIDE) (PART OF 3) |
ST158 (06) (LH6, CJ2, CJ3) |
2005-2005 |
01 |
| 008 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR HOSE CLIP BRKT)
|
2003-2005 |
01 |
|
| 009 |
|
BRACKET, HTR INL OTLT HOSE (PART OF 15) |
|
2005-2005 |
|
| 010 |
|
CLAMP, HTR OTLT HOSE (PART OF 15) |
|
2005-2005 |
|
| 011 |
|
HOSE, HTR OTLT (PART OF 15) |
|
2005-2005 |
|
| 012 |
|
CLIP, HTR INL OTLT HOSE (PART OF 15) |
|
2005-2005 |
|
| 013 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 15) |
|
2003-2005 |
01 |
| 014 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 15) |
|
2003-2005 |
01 |
| 015 |
10385281 |
HOSE, HTR INL OTLT (INCLS 9-14) (MAY ALSO REQUIRE T CONNECTOR) |
ST1 (LH6, CJ2, CJ3) |
2005-2005 |
01 |
| 016 |
|
CONNECTOR, HTR INL HOSE (PART OF 18) |
|
2005-2005 |
|
| 017 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (PART OF 18) (ACDelco #1470030) |
|
2003-2005 |
01 |
| 018 |
15249056 |
HOSE, HTR WA SHUTOFF VLV INL (INCLS 16, 17, 19) |
ST158 (06) (LH6) |
2005-2005 |
01 |
| 019 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 18) |
|
2003-2005 |
01 |
| 020 |
|
HOSE, AUX HTR INL FRT (*KIT1) |
|
2005-2005 |
|
| 021 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (AUX HTR INL FRT HOSE) (*KIT1) |
|
2003-2005 |
01 |
| 022 |
|
SLEEVE, HTR HOSE (*KIT1) |
|
2005-2005 |
|
| 023 |
15139564 |
CONNECTOR, AUX HTR INL FRT HOSE (90 DEGREE ELBOW) (*KIT1) (8.866) (ACDelco #15-34069) |
ST1 (CJ2, CJ3) |
2005-2005 |
01 |
| 024 |
|
TUBE, AUX A/C EVPR (W/AUX HTR INL PIPE) (СМ. ГРУППУ 08.000 ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2005 |
|
| 025 |
|
HOSE, HTR INL (*KIT1) |
|
2005-2005 |
|
| 026 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR WAT SHUTOFF VLV HOSE) (*KIT1) |
|
2003-2005 |
01 |
| 027 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (AUX HTR INL FRT HOSE) (*KIT1) |
|
2003-2005 |
01 |
| 028 |
15772294 |
VALVE, HTR WAT SHUTOFF (EXC HTR HOSES INL, OTLT SHUTOFF) (*KIT1) (ACDelco #15-5886) |
ST158 (06) (CJ2, CJ3) |
2004-2005 |
01 |
| 029 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (HTR WAT SHUTOFF VLV)
|
2003-2005 |
01 |
|
| K01 |
15119173 |
VALVE, HTR WAT SHUTOFF (INCLS 1, 20-23, 25-28) (ACDelco #15-50096) |
ST158 (06) (LH6, CJ2, CJ3) |
2005-2005 |
01 |
