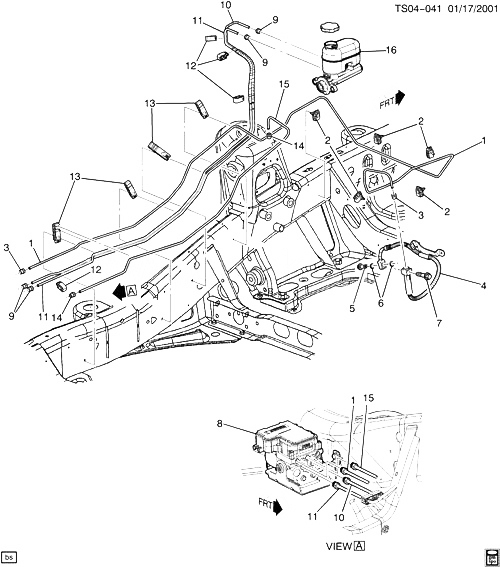

(TS04-041) - 2002-2005 ST158 ТОРМОЗНАЯ МАГИСТРАЛЬ/ПЕРЕДНЯЯ CHEVROLET TRAILBLAZER EXT LT (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (FRT BRK FRT) 2002-2005 AR
002 15000257 CLIP, FRT BRK PIPE (2-LINE FREESTANDING CLIP) (PUSH PIN 2 HOLES 6.75) ST158 (JF8) 2005-2005 03
002 15092111 CLIP, FRT BRK PIPE (4-LINE CLIP) ST158 (JF8) 2002-2005 04
003 15103241 ГАЙКА, FRT BRK PIPE (1/4 TUBE STL) ST1 (JF8) 2004-2005 02
004 15112267 HOSE, FRT BRK (INCLS 5) ST1 2002-2005 01
004 15112268 HOSE, FRT BRK (INCLS 5) ST1 2002-2005 01
005 RETAINER, FRT BRK HOSE (PART OF 4) 2002-2005
006 21012386 ПРОКЛАДКА, FRT BRK HOSE FTG (M10.3 X 17 X 1.30) (10.3X14.5X1.61) (COPPER) (4.681) (ACDelco #21012386) ST1 2002-2005 02
007 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE BRKT) 2002-2005 02
008 MODULE, ELEK BRK CONT (СМ. ГРУППУ 04.000 МОДУЛЬ УПРАВЛЕНИЯ ТОРМОЗАМИ И КРЕПЛЕНИЕ FOR DETAILED ILLUSTRATED VIEW) 2002-2005
009 15103241 ГАЙКА, FRT BRK RR PIPE (PART OF 10, 11) (1/4 TUBE STL) ST158 (JF8) 2004-2005 04
010 15104864 PIPE, FRT BRK RR (INCLS 9) (INCLS NUTS) ST158 (JF8) 2005-2005 01
011 15104865 PIPE, FRT BRK RR (INCLS 9) (INCLS NUTS AND CLIPS) ST158 (JF8) 2005-2005 01
012 15000257 CLIP, FRT BRK PIPE (2-LINE FREESTANDING CLIP) (PUSH PIN 2 HOLES 6.75) ST158 (JF8) 2005-2005 03
012 15092111 CLIP, FRT BRK PIPE (4-LINE CLIP) ST158 (JF8) 2002-2005 04
013 15092111 CLIP, FRT BRK PIPE (4-LINE CLIP) ST158 (JF8) 2002-2005 04
014 15103241 ГАЙКА, FRT BRK PIPE (1/4 TUBE STL) ST1 (JF8) 2004-2005 02
015 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK) 2002-2005 AR
016 18060788 CYLINDER, BRK MAS (ACDelco #174-775) ST1 (JF8) 2002-2005 01
