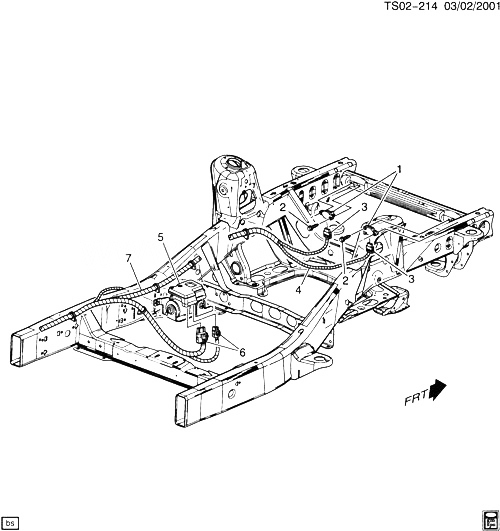

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15077445 |
ДАТЧИК, F/END INFL RST DISCRM
| ST1 (06-36) |
2005-2005 |
02 |
|
| 002 |
11516569 |
БОЛТ, HEX HD, W/FLAT WA, M6X1X30, P-PT, 9.8, 7114M (F/END INFL RST DISCRM SEN) |
|
2002-2009 |
04 |
| 003 |
15306439 |
CONNECTOR, SEN-INFL RST ARMING (PART OF 7) (YELLOW) (W/GRAY TIP) (2-WAY FEMALE) (W/LEADS) (ACDelco #PT1500) |
ST1 |
2002-2005 |
02 |
| 004 |
|
HARNESS, INFL RST WRG (PART OF 7) |
|
2002-2009 |
|
| 005 |
|
MODULE, ELEK BRK CONT (СМ. ГРУППУ 04.000 МОДУЛЬ УПРАВЛЕНИЯ ТОРМОЗАМИ И КРЕПЛЕНИЕ FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
| 006 |
12085212 |
CONNECTOR, MDL-ELEK BRK CONT (PART OF 7) (BLACK) (2-WAY FEMALE) (W/LEADS) (M/P 480) (2.535) (ACDelco #PT1116) |
ST1 |
2002-2005 |
01 |
| 007 |
|
HARNESS, CHAS RR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) (INCLS 3, 4, 6) |
|
2002-2009 |
|
