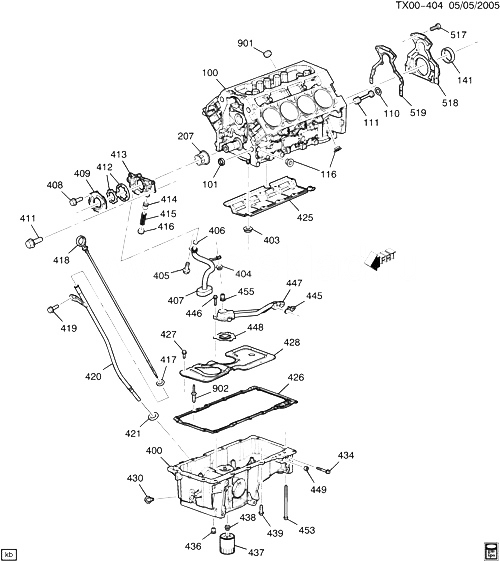

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
БЛОК, ДВИГАТЕЛЯ |
|
2005-2005 |
|
| 101 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2005-2006 |
01 |
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2005-2005 |
|
| 111 |
12573460 |
PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) |
S1 (LS2) |
2005-2005 |
01 |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL)
|
2005-2006 |
02 |
|
| 141 |
89060436 |
SEAL KIT, CR/SHF RR OIL (REVERSE LIP SEAL, INCL INSTRUCTION SHEET)
| S1 (LS2) |
2005-2005 |
01 |
|
| 400 |
12579723 |
PAN, OIL (INCLS 426-428, 430, 434, 436, 438, 439, 445-449, 453, 455, 901, 902) (INCLS PAN, PLUG, GASKETS, BOLTS, PLUG) |
S1 (LS2) |
2005-2005 |
01 |
| 400 |
12613437 |
PAN, OIL (USE W/PF48 OIL FILTER) (INCLS 426-428, 430, 434, 436, 438, 439, 445-449, 453, 455, 901, 902) |
S1 (LS2) |
2005-2005 |
01 |
| 403 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (CR/SHF OIL DFL) |
|
2005-2006 |
08 |
| 404 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (O/PMP SUC PIPE) |
|
2005-2006 |
01 |
| 405 |
11516521 |
БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (O/PMP SUC PIPE) |
|
2005-2006 |
01 |
| 406 |
12584922 |
SEAL, O/PMP (O RING) (PART OF 407) (20.69MM I.D., 4.20MM THICKNESS) (TEFLON COATED)
| S1 (LS2) |
2005-2006 |
01 |
|
| 407 |
12565692 |
SCREEN, O/PMP (W/SUC PIPE) (INCLS 406) (INCLS PIPE, SCREEN, SEAL) |
S1 (LS2) |
2005-2005 |
01 |
| 408 |
11519133 |
БОЛТ, SELF TAP, M6X1X20, 13.2 O.D. (PART OF 413) |
|
2005-2006 |
07 |
| 409 |
|
COVER, O/PMP (PART OF 413) |
|
2005-2005 |
|
| 411 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (O/PMP)
|
2005-2006 |
04 |
|
| 412 |
|
GEAR SET, O/PMP (PART OF 413) |
|
2005-2005 |
|
| 414 |
|
VALVE, OIL PRESS RLF (PART OF 413) |
|
2005-2005 |
|
| 415 |
|
ПРУЖИНА, OIL PRESS RLF VLV (PART OF 413) |
|
2005-2005 |
|
| 416 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 413) |
|
2005-2005 |
|
| 417 |
24504091 |
SEAL, OIL LVL IND TUBE (O RING) (PART OF 418) (BLACK) (6.07MM ID, 1.78MM DIA) |
S1 (LS2) |
2005-2005 |
01 |
| 418 |
12575957 |
ИНДИКАТОР, УРОВНЯ МАСЛА (INCLS 417) |
S1 (LS2) |
2005-2005 |
01 |
| 419 |
11515765 |
БОЛТ, HFH, M10X1.5X25, 22.30 O.D., HDR PT, 10.9, 7112M (OIL LVL IND TUBE) |
|
2005-2006 |
01 |
| 420 |
12567172 |
TUBE, OIL LVL IND (INCLS 421) |
S1 (LS2) |
2005-2006 |
01 |
| 421 |
24504091 |
SEAL, OIL LVL IND TUBE (O RING) (PART OF 420) (BLACK) (6.07MM ID, 1.78MM DIA) |
S1 (LS2) |
2005-2005 |
01 |
| 427 |
11519133 |
БОЛТ, SELF TAP, M6X1X20, 13.2 O.D. (BOLT, OIL PAN BFL) (PART OF 400) |
|
2005-2006 |
07 |
| 428 |
|
BAFFLE, OIL PAN (PART OF 400) |
|
2005-2005 |
|
| 439 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 400)
|
2005-2006 |
13 |
|
| 447 |
|
TUBE, OIL FLTR CTR (PART OF 400) |
|
2005-2005 |
|
| 449 |
92061150 |
PLUG, OIL PAN HOLE (TRANSFER TUBE) (PART OF 400) (0.293) |
S1 (LS2) |
2005-2005 |
01 |
| 455 |
12597920 |
VALVE, OIL PRESS RLF (PART OF 400) |
S1 (LS2) |
2005-2005 |
01 |
| 518 |
12615666 |
HOUSING, CR/SHF RR OIL SEAL (INCLS BOLT, HOUSING, SEAL, GASKET) (INCLS 517, 519) |
S1 (LS2) |
2005-2006 |
01 |
| 519 |
12593587 |
ПРОКЛАДКА, CR/SHF RR OIL SEAL HSG (PART OF 518) |
S1 (LS2) |
2005-2005 |
01 |
| 902 |
12558759 |
RIVET, OIL PAN GSKT (PART OF 400) |
S1 (LS2) |
2005-2005 |
02 |
