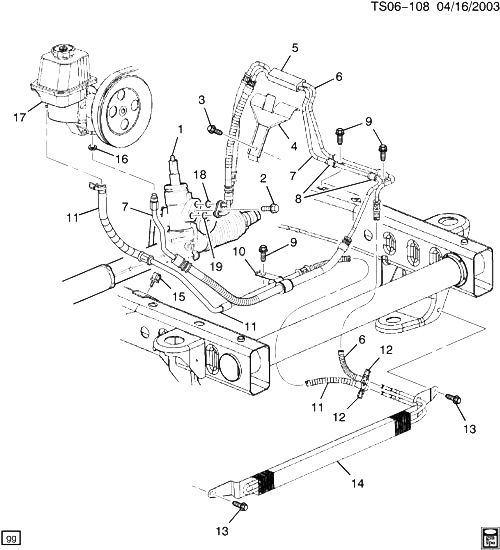

(TS06-108) - 2002-2009 ST НАСОС РУЛЕВОГО УПРАВЛЕНИЯ/МАГИСТРАЛИ (LL8/4.2S) CHEVROLET TRAILBLAZER EXT LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 GEAR, STRG (СМ. ГРУППУ 06.000 РУЛЕВОЙ МЕХАНИЗМ В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2002-2009
002 26084815 БОЛТ, P/S GR INL OTLT PIPE RET ST1 2002-2009 01
002 26084815 БОЛТ, P/S GR INL OTLT PIPE RET (6.670) ST1 2002-2009 01
003 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (PART OF 4) (ACDelco #11517518) 2002-2009 01
004 15090679 CLIP, P/S GR INL HOSE (INCLS 3) ST1 (LL8) 2002-2008 01
005 26082726 INSULATOR, P/S GR INL OTLT PIPE ST1 (LL8) 2005-2009 01
006 26095038 HOSE, P/S GR OTLT (GEAR TO COOLER) (W/SEALS) ST1 (LL8) 2002-2009 01
007 26095037 HOSE, P/S GR INL (W/SEALS) (6.671) ST1 (LL8) 2005-2009 01
008 19148997 BRACKET, P/S GR INL HOSE ST1 (LL8) 2005-2009 02
009 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (P/S GR OTLT HOSE CLIP) (ACDelco #11517518) 2002-2009 03
010 26099618 BRACKET, P/S GR INL OTLT PIPE CLIP (RETAINED BY CLIP) ST1 (LL8) 2005-2009 01
011 26087520 HOSE, P/S GR OTLT (COOLER TO PUMP) ST1 (LL8) 2002-2009 01
012 11516255 CLAMP, SPRING BAND HOSE (M16X1) (P/S FLUID CLG HOSE) 2002-2009 02
013 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (P/S FLUID CLR) (ACDelco #11570082) 2002-2009 02
014 15009093 COOLER, P/S FLUID ST1 (06-36) (LH6, LL8) 2005-2005 01
015 15738800 CLIP, P/S FLUID CLR HOSE (BLACK) (28.2X18.8X7.35MM) (HOLDS ONE PIPE) (PUSH IN) (PLASTIC) (4.128) ST1 2002-2009 01
016 26081619 SEAL, S/GR PIPE (O RING) (6.00MM) ST158 (N40) 2002-2005 02
017 PUMP, P/S (СМ. ГРУППУ 06.000 РУЛЕВОЙ НАСОС В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2002-2009
018 26080380 SEAL, P/S GR OTLT HOSE (9.04MM IDX4.10MM THK) (AT GEAR) ST158 2002-2006 02
019 26001594 SEAL, P/S GR INL HOSE (O RING) (7.65MM IDX1.63MM THK) ST1 (LL8) 2002-2005 01
019 26080380 SEAL, P/S GR INL HOSE (O RING) (9.04MM IDX4.10MM THK) (AT GEAR) ST158 2002-2006 02
