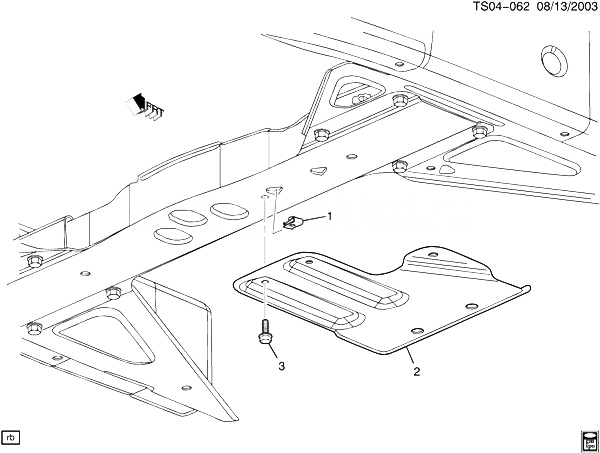

(TS04-062) - 2002-2006 T158(06) ЩИТОК РАЗДАТОЧНОЙ КОРОБКИ (ZM5) CHEVROLET TRAILBLAZER EXT LS (4WD) 2005
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11516149 | ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (TRFER CASE SHLD)|
| 2002-2006 |
03 |
|
| 002 | 10374202 | SHIELD, TRFER CASE (W/NOTCH CUT-OUT FOR ABS CONNECTOR) (FOR 1ST DES SEE 15744524) | T158 (ZM5) (2ND DES) | 2005-2005 | 01 |
| 003 | 11570082 | БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRFER CASE SHLD) (ACDelco #11570082)|
| 2002-2006 |
03 |
|
