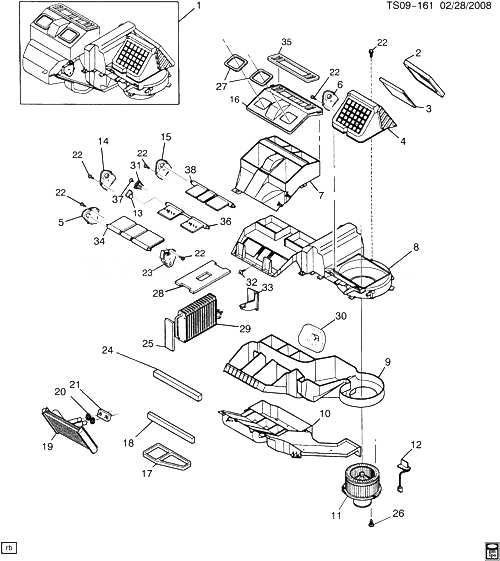

(TS09-161) - 2005-2009 ST(06) КОНДИЦИОНЕР И МОДУЛЬ ПОДОГРЕВАТЕЛЯ В СБОРЕ CHEVROLET TRAILBLAZER EXT LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 MODULE, HTR A/C EVPR BLO 2005-2005
001 MODULE, HTR A/C EVPR BLO 2005-2009
002 89018652 SEAL, AIR INL DUCT ST1 (CJ2, CJ3) 2005-2009 01
003 52489417 VALVE, AIR INL ST1 (CJ2, CJ3) 2005-2009 01
004 52489416 CASE, AIR DISTR ST1 (CJ2, CJ3) 2005-2009 01
005 89018676 ACTUATOR, TEMP VLV (DRIVER) (ACDelco #15-73598) ST1 (CJ2) 2005-2009 01
005 89018676 ACTUATOR, TEMP VLV (DRIVER) (ACDelco #15-73598) ST1 (CJ3) 2005-2009 01
006 89018677 ACTUATOR, AIR INL VLV (ACDelco #15-73597) ST1 (CJ2) 2005-2009 01
006 89018678 ACTUATOR, AIR INL VLV (ACDelco #15-73599) ST1 (CJ3) 2005-2009 01
007 89018644 CASE, A/C EVPR (MODE) ST1 (CJ2, CJ3) 2005-2009 01
008 89018761 CASE, A/C EVPR UPR ST1 (CJ2, CJ3) 2005-2009 01
009 89018762 CASE, A/C EVPR LWR (USE T/W STUD 11610099) ST1 (CJ2, CJ3) 2005-2009 01
010 89018763 CASE, HTR ST1 (CJ2, CJ3) 2005-2009 01
011 89018747 MOTOR, BLO (W/IMPLR) (ACDelco #15-80581) ST1 (06) (CJ3) 2005-2006 01
011 89018747 MOTOR, BLO (W/IMPLR) (ACDelco #15-80581) ST1 (CJ2) 2005-2006 01
011 89018747 MOTOR, BLO (W/IMPLR) (8.855) (ACDelco #15-80581) ST1 (06) (CJ3) 2005-2006 01
011 89018747 MOTOR, BLO (W/IMPLR) (8.855) (ACDelco #15-80581) ST1 (CJ2) 2005-2006 01
012 89018778 MODULE, HTR BLO A/C CONT (9.169) (ACDelco #15-80567) ST1 (CJ2) 2005-2005 01
012 89018778 MODULE, HTR BLO A/C CONT (ACDelco #15-80567) ST1 (CJ2) 2005-2005 01
012 89019100 RESISTOR, HTR A/C CONT (ACDelco #15-81095) ST1 (CJ3, DAY, OKL) 2005-2005 01
013 LEVER, HTR A/C CONT TEMP (PART OF 36) 2005-2005
013 LEVER, HTR A/C CONT TEMP (PART OF 36) 2005-2009
014 89018675 ACTUATOR, MODE VLV (ACDelco #15-73596) ST1 (CJ2, CJ3) 2005-2009 01
015 89018676 ACTUATOR, DEFR VLV (ACDelco #15-73598) ST1 (CJ2) 2005-2009 01
016 52489420 CASE, BLO ST1 (CJ2, CJ3) 2005-2009 01
017 52484902 SEAL, HTR ST1 (CJ2, CJ3) 2005-2009 01
018 52493058 SEAL, HTR CORE CVR ST1 (CJ2, CJ3) 2005-2009 03
019 52498633 CORE, HTR (ACDelco #15-62887) ST158 (06) (CJ2, CJ3, OKL) 2005-2005 01
020 52493057 SEAL, BLO UPR CASE ST1 (CJ2, CJ3) 2005-2009 02
021 52494006 SEAL, A/C EVPR TUBE (HTR A/C EVPR BLO MODULE PKG) (71 X 34 RECTANGLE) (ACDelco #15-32463) ST1 (CJ2, CJ3) 2005-2006 01
022 11609829 БОЛТ, HTR A/C EVPR MDL (4.2X2.25X16) (9.786) ST1 (CJ2, CJ3) 2005-2009 44
023 89018677 ACTUATOR, TEMP VLV (PASS) (ACDelco #15-73597) ST1 (CJ2) 2005-2009 01
023 89018677 ACTUATOR, TEMP VLV (PASS) (ACDelco #15-73597) ST1 (CJ3) 2005-2009 01
024 89018441 SEAL, HTR A/C EVPR LWR CASE ST1 (CJ2, CJ3) 2005-2009 01
025 52489406 SEAL, A/C EVPR (SIDE) (231 X 16 X 12.5MM) ST1 (CJ2, CJ3, DAY, OKL) 2005-2005 01
026 БОЛТ, BLO MOT 2005-2009
027 52484801 SEAL, AUX A/C AIR OTLT DUCT (9.222) (ACDelco #15-31847) ST1 (CJ2, CJ3) 2005-2009 02
028 52491781 SEAL, A/C EVPR (END) (286 X 115 X 5.5MM) ST1 (CJ2, CJ3, DAY, OKL) 2005-2005 01
029 89019026 EVAPORATOR KIT, A/C (ACDelco #15-63383) ST1 (CJ2, CJ3) 2005-2009 01
030 52492934 SEAL, A/C EVPR BLO MDL ST1 (CJ2, CJ3) 2005-2009 01
031 LEVER, HTR A/C CONT MODE 2005-2005
031 LEVER, HTR A/C CONT MODE 2005-2009
032 11610099 STUD, HTR A/C EVPR BLO MDL (CASE, A/C EVAP LWR) (HEX COLLAR) (M6.3X1.69X26, M6X1X15.5) (USED T/W 89018762 (CASE, A/C EVAP LWR)) ST1 (06) (CJ2, CJ3) 2005-2009 01
032 52473657 STUD, HTR A/C EVPR BLO MDL (YELLOW) (M6X1.0X20, M7X2.89X18) (TORX) ST1 (CJ2, CJ3) 2005-2005 07
033 52493545 COVER, A/C EVPR TUBE ST1 (CJ2, CJ3) 2005-2009 01
034 89019056 VALVE, TEMP (ACDelco #15-50702) ST158 (CJ2, CJ3) 2005-2007 01
035 52484800 SEAL, W/S DEFR OTLT DUCT (304 X 99 X 10MM) ST1 (CJ2, CJ3) 2005-2009 01
036 89018440 VALVE, MODE (INCLS 13) (ACDelco #15-50093) ST1 (CJ2, CJ3) 2005-2009 01
037 БОЛТ, MODE CONT CAM 2005-2005
037 БОЛТ, MODE CONT CAM 2005-2009
038 52489422 VALVE, DEFR (ACDelco #15-50549) ST1 (CJ2, CJ3) 2005-2009 01
