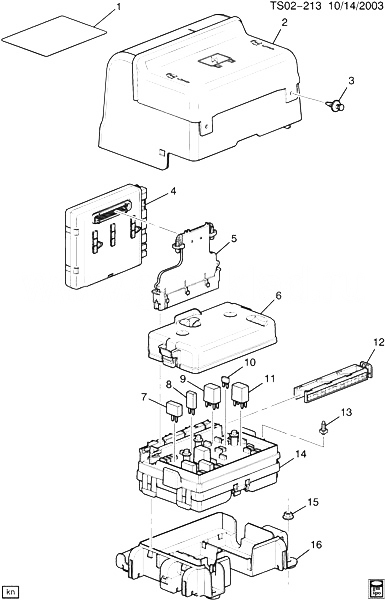

(TS02-213) - 2002-2006 ST158 БЛОК/ЖГУТЫ ПРОВОДОВ КУЗОВА МОДУЛЬ УПРАВЛЕНИЯ КУЗОВОМ CHEVROLET TRAILBLAZER EXT LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 LABEL, ACSRY RLY FUSE BLK IDENT (PART OF 2) 2005-2006
002 15107357 COVER, BODY I/P WRG HARN J/BLK (INCLS 1, 3) (EBONY) ST158 (06) (27I, 48I) 2005-2006 01
002 15107358 COVER, BODY I/P WRG HARN J/BLK (INCLS 1, 3) (GRAY) (INCL LABEL) ST158 (06) (28I) 2005-2006 01
004 15122670 MODULE, BODY CONT (ACDelco #15122670) (USE ON VEHICLES BUILT WITH OEM PN 15122670) (FOR 2ND DES 25802312) ST1 (EXC BAE) (1ST DES) 2005-2005 01
004 15122670 MODULE, BODY CONT (2.560) (ACDelco #15122670) (USE ON VEHICLES BUILT WITH OEM PN 15122670) (FOR 2ND DES 25802312) ST1 (EXC BAE) (1ST DES) 2005-2005 01
004 15122671 MODULE, BODY CONT (ACDelco #15122671) (USED ON VEHICLES BUILT WITH OEM PN 15122671) (FOR 2ND DES SEE 15787810) ST1 (06-36) (BAE) (1ST DES) 2005-2005 01
004 15122671 MODULE, BODY CONT (2.560) (ACDelco #15122671) (USED ON VEHICLES BUILT WITH OEM PN 15122671) (FOR 2ND DES SEE 15787810) ST1 (06-36) (BAE) (1ST DES) 2005-2005 01
004 15787810 MODULE, BODY CONT (ACDelco #15787810) (USED ON VEHICLES BUILT WITH OEM PN 15787810) (FOR 1ST DES SEE 15122671) ST1 (06-36) (BAE) (2ND DES) 2005-2005 01
004 15787810 MODULE, BODY CONT (2.560) (ACDelco #15787810) (USED ON VEHICLES BUILT WITH OEM PN 15787810) (FOR 1ST DES SEE 15122671) ST1 (06-36) (BAE) (2ND DES) 2005-2005 01
004 25802312 MODULE, BODY CONT (ACDelco #25802312) (USE ON VEHICLES BUILT WITH OEM PN 15787809. FOR 1ST DES 15122670) ST1 (06) (EXC BAE) (2ND DES) 2005-2005 01
004 25802312 MODULE, BODY CONT (2.560) (ACDelco #25802312) (USE ON VEHICLES BUILT WITH OEM PN 15787809. FOR 1ST DES 15122670) ST1 (06) (EXC BAE) (2ND DES) 2005-2005 01
005 15077187 HARNESS, BODY WRG HARN EXTN ST1 2005-2006 01
006 COVER, BODY I/P WRG HARN J/BLK (PART OF 14) 2002-2006
007 12077863 BREAKER, CIRCUIT, 30 AMP, GREEN (PART OF 14) 2002-2006 01
007 12088575 BREAKER, CIRCUIT, 25AMP, WHITE (25 AMP NON-CYCLING) (PART OF 14) 2002-2006 02
008 12182113 BREAKER ASM, CIRC (MINI 15AMP NON-CYCLING) (PART OF 14) (2.483) 2002-2006 01
008 12182116 BREAKER ASM, CIRC (MINI 25AMP NON-CYCLING) (PART OF 14) (2.483) 2002-2006 01
008 12182117 BREAKER ASM, CIRC (MINI 30AMP NON-CYCLING) (PART OF 14) (2.483) 2002-2006 01
009 19115082 RELAY, DR LK (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, BLACK, MICRO, CODE 7866) (PART OF 14) (STDT 280 MICRO) (1.055) (ACDelco #15-50448) ST1 2005-2006 02
010 12092075 FUSE, MINI (30A) (GREEN) (PART OF 14) (ACDelco #12092075) 2002-2006 AR
010 12092079 FUSE, 10A, MINI, RED (PART OF 14) 2002-2006 AR
010 15328724 FUSE (MINI, 3 AMP, VIOLET) (PART OF 14) 2002-2006 AR
010 88909754 FUSE, 15A, MINI, BLUE (PART OF 14) (ACDelco #ATM15-25) 2002-2006 AR
010 88909755 FUSE, 20A, MINI, YELLOW (PART OF 14) (ACDelco #ATM20-25) 2002-2006 AR
010 88909756 FUSE, 25A, MINI, CLEAR (PART OF 14) (ACDelco #ATM25-25) 2002-2006 AR
011 19115080 RELAY, PARK LP (CODE 8567) (PART OF 14) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) ST1 2005-2006 01
012 88986346 RETAINER, BODY I/P WRG HARN J/BLK CVR (PART OF 14) (SLIDE LOCK) ST1 2002-2006 01
013 12193775 STUD, ENG WRG HARN J/BLK (PART OF 14) (M8 X 1.25 X 35.9) ST1 2005-2006 01
014 25925580 BLOCK, BODY I/P WRG HARN JUNC (INCLS 6-13) (2.530) ST1 (06) (W49, X88, Z88, Z89) 2005-2006 01
014 25925580 BLOCK, BODY I/P WRG HARN JUNC (INCLS 6-13) ST1 (06) (W49, X88, Z88, Z89) 2005-2006 01
015 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN CONN BRKT) 2002-2006 04
016 15051963 BLOCK, BODY I/P T/LP WRG HARN JUNC (LOCATED UNDER RR SEAT) (2.530) ST158 2002-2006 01
016 15051963 BLOCK, BODY I/P T/LP WRG HARN JUNC (LOCATED UNDER RR SEAT) ST158 2002-2006 01
