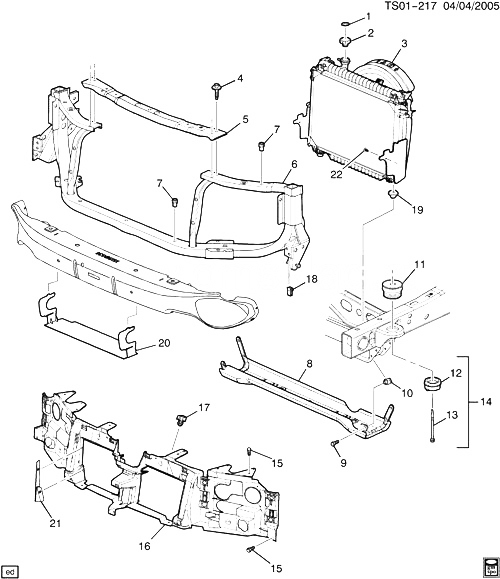

(TS01-217) - 2003-2005 ST(06) КРЕПЛЕНИЕ РАДИАТОРА И СОПРЯЖЕННЫЕ ДЕТАЛИ (CHEVROLET X88) CHEVROLET TRAILBLAZER EXT LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15063597 LABEL, RAD FIL CAP CAUTION (PART OF 2) (DOMESTIC) ST1 2005-2005 01
002 15042975 CAP, RAD FIL (INCLS 1) (ACDelco #RC85) ST1 2005-2005 01
003 RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2003-2005
004 11610010 БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (RAD SUPT) 2003-2005 04
005 15176209 SUPPORT, RAD UPR ST1 (06) 2005-2005 01
006 89025314 SUPPORT KIT, RAD ST1 (06) 2005-2005 01
007 11519952 ГАЙКА, RIVET, HX BODIED, M6X1.0X19.35, TZ (HDLP RAD GRL MT PNL) 2003-2005 08
009 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RAD LWR SUPT SKID PLT) (ACDelco #11570082) 2003-2005 06
010 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (RAD LWR SUPT SKID PLT) 2003-2005 06
011 15768821 CUSHION, RAD SUPT UPR (BLUE) ST1 (06) 2005-2005 02
012 CUSHION, RAD SUPT LWR (PART OF 14) 2003-2005
013 11518078 БОЛТ, HFH W/KNURL, M12X1.75X165, 32 THD, 26.6OD, 10.9, 6173M, MACH, MATCAM-PT (PART OF 14) 2003-2005 02
014 15769290 CUSHION, RAD SUPT LWR (INCLS 12, 13) (YELLOW) ST1 (06) 2005-2005 02
015 11589039 БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (HDLP RAD GRL MT PNL) 2003-2005 08
016 15831182 PANEL, HDLP RAD GRL MT (INCLS HDLP RET CLIPS) ST1 (06) (X88) 2005-2005 01
017 15047946 ДАТЧИК, AMB AIR TEMP GA (W/BRACKET/SCREW ATTACHMENT) ST1 (CJ2) 2005-2005 01
017 15047946 ДАТЧИК, AMB AIR TEMP GA (W/BRACKET/SCREW ATTACHMENT) ST1 (CJ3, DD5) 2005-2005 01
017 25775833 ДАТЧИК, AMB AIR TEMP GA (W/O BRACKET) (ACDelco #25775833) ST1 2005-2005 01
018 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (HDLP RAD GRL MT PNL) 2003-2005 02
019 89019121 INSULATOR, RAD ST1 (M30, M70, CJ2, CJ3) 2005-2005 02
021 15101097 BAFFLE, RAD AIR SI UPR ST1 (06) (X88) 2003-2005 01
021 15101098 BAFFLE, RAD AIR SI UPR ST1 (06) (X88) 2003-2005 01
022 15958694 RETAINER, RAD AIR LWR BFL (PUSH IN) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) ST1 (CJ2, CJ3) 2005-2005 02
