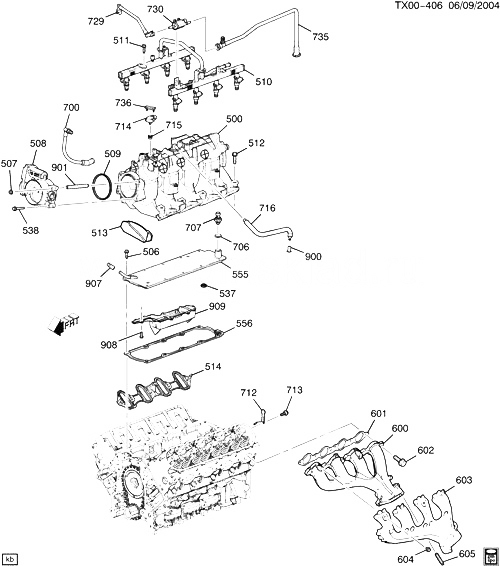

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 500 |
89017588 |
КОЛЛЕКТОР, ВПУСКНОЙ |
S1 (LS2) |
2005-2005 |
01 |
| 506 |
11518075 |
БОЛТ, HFH, THD 22, OD 17, 8.8, GMW14C-PT, HDR POINT (PART OF 555)
|
2005-2005 |
11 |
|
| 507 |
|
ГАЙКА, THROT BODY (*KIT1) |
|
2005-2005 |
|
| 508 |
12572658 |
BODY, THROT (W/THROT ACTR) (ACDelco #217-1620) |
S1 (LS2) |
2005-2005 |
01 |
| 509 |
12572746 |
SEAL, THROT BODY (ACDelco #217-1625) |
S1 (LS2) |
2005-2005 |
01 |
| 510 |
|
RAIL, M/PORT F/INJN FUEL (СМ. ГРУППУ 03.000 FUEL RAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2005 |
|
| 511 |
12580910 |
БОЛТ, F/INJR DRVR MDL |
S1 (LS2) |
2005-2005 |
04 |
| 512 |
12575384 |
БОЛТ, INT MANIF |
S1 (LS2) |
2005-2005 |
10 |
| 513 |
|
INSULATOR KIT, INT MANIF |
|
2005-2005 |
|
| 514 |
89060413 |
GASKET KIT, INT MANIF
| S1 (LS2) |
2005-2005 |
01 |
|
| 537 |
12574886 |
SEAL, ENG BLK VALLEY CVR HIGH PRESS PORT (PART OF 555) |
S1 (LS2) |
2005-2005 |
08 |
| 538 |
|
БОЛТ, THROT BODY (*KIT1) |
|
2005-2005 |
|
| 555 |
12570471 |
COVER, ENG BLK VALLEY (W/PCV BFL) (INCLS 506, 537, 556, 907, 908, 909) (INCLS COVER, BOLTS, BAFFLE, TUBE, ) |
S1 (LS2) |
2005-2005 |
01 |
| 556 |
12610141 |
ПРОКЛАДКА, ENG BLK VALLEY CVR (PART OF 555)
| S1 (LS2) |
2005-2005 |
01 |
|
| 602 |
11518860 |
БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF)
|
2005-2005 |
12 |
|
| 605 |
11589264 |
STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE)
|
2005-2005 |
02 |
|
| 707 |
|
SEAL, ENG OIL PRESS SEN) (PART OF 451) |
|
2005-2005 |
|
| 713 |
11515764 |
БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (F/INJN FUEL RL STOP) |
|
2005-2005 |
07 |
| 729 |
12574897 |
HARNESS, EVAP EMIS CNSTR |
S1 (LS2, LH6) |
2005-2005 |
01 |
| 730 |
12606684 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142)
| S1 (LH6, LL8, LS2) |
2005-2005 |
01 |
|
| 735 |
12592088 |
TUBE, EVAP EMIS CNSTR PURGE |
S1 (LH6, LS2) |
2005-2005 |
01 |
| 901 |
|
БОЛТ, THROT BODY (*KIT1) |
|
2005-2005 |
|
| 908 |
11517094 |
SCREW, M5X.8X15.6, 10.4 THD, 10.2 OD, 6202M, 7114M, TAPER-POINT (PART OF 555) (ACDelco #11517094) |
|
2005-2005 |
08 |
| 909 |
|
BAFFLE, PCV (PART OF 555) |
|
2005-2005 |
|
| K01 |
89017591 |
BOLT KIT, THROT BODY (INCLS 507, 538, 901) (INCLS BOLT, STUD, NUT) |
S1 (LS2) |
2005-2005 |
02 |
