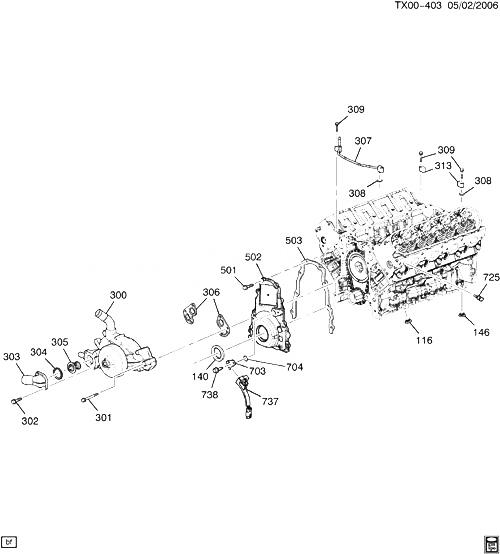

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE)
|
2005-2005 |
02 |
|
| 140 |
12585673 |
SEAL, CR/SHF FRT OIL (PART OF 502) (0.207) (ACDelco #296-02)
| ST1 (LH6, M30) |
2005-2005 |
01 |
|
| 146 |
12561663 |
PLUG, ENG BLK COOL DRN HOLE (M28X1.25X12.4, BRASS) |
ST1 (LH6) |
2005-2005 |
01 |
| 300 |
89017439 |
НАСОС, WAT (INCLS 302-306) (INCLS PUMP, PIPE, PULLEY, THERMOSTAT, SEAL, BOLT, INLET, GASKETS) (ACDelco #251-680) (MUST BE SERVICED WITH 2004 OR NEWER PARTS ONCE PUMP IS REPLACED) |
ST1 (LH6) |
2005-2005 |
01 |
| 301 |
12551926 |
БОЛТ, W/PMP (M8X1.25X83)
| ST1 (LH6) |
2005-2005 |
06 |
|
| 302 |
11516480 |
БОЛТ, W/PMP INL (PART OF 300, 303) (M6X1X25-10MM SOC) |
ST1 (LH6) |
2005-2005 |
01 |
| 303 |
12600172 |
INLET, W/PMP (PART OF 300) (INCLS 302, 304, 305) (INCLS INLET, SEAL, THERMOSTAT) |
ST1 (LH6) |
2005-2005 |
01 |
| 304 |
12570307 |
SEAL, WAT INL (PART OF 300, 303) (ACDelco #131-169)
| ST1 (LH6) |
2005-2005 |
01 |
|
| 305 |
12600171 |
THERMOSTAT, ENG COOL (SEAL NOT INCLUDED) (PART OF 300, 303) (ACDelco #131-156)
| ST1 (LH6) |
2005-2005 |
01 |
|
| 306 |
12559271 |
ПРОКЛАДКА, W/PMP (2 OBLONG 1 ROUND MTG HOLES, AT PUMP MANIFOLD) (PART OF 300) (ACDelco #12559271) |
ST1 (LH6) |
2005-2005 |
02 |
| 307 |
12570675 |
PIPE, ENG COOL AIR BL (INCLS 308) |
ST1 (LH6) |
2005-2005 |
01 |
| 308 |
12602541 |
SEAL, ENG COOL AIR BL PIPE (O RING) (SINGLE TYPE ONE HOLE O-RING) (PART OF 307, 313) |
ST1 (06-36) (LH6) |
2005-2005 |
02 |
| 309 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (ENG COOL AIR BL PIPE)
|
2005-2005 |
04 |
|
| 313 |
12602540 |
COVER, ENG COOL AIR BL PIPE HOLE (INCLS 308) (INCL SEALS) |
ST1 (06-36) (LH6) |
2005-2005 |
02 |
| 501 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 502)
|
2005-2005 |
08 |
|
| 502 |
12600325 |
COVER, ENG FRT (INCLS 140, 501, 503, 703, 737, 738) (INCLS COVER, SEAL, GASKET, BOLT, JUMPER, SENSOR, BRACKET, WIRE) |
ST1 (LH6) |
2005-2005 |
01 |
| 503 |
12574294 |
ПРОКЛАДКА, ENG FRT CVR (PART OF 502)
| ST1 (LH6) |
2005-2005 |
01 |
|
| 703 |
12591720 |
ДАТЧИК, CM/SHF POSN (PART OF 502) (INCLS 704) (ACDelco #213-3826)
| ST1 (LH6) |
2005-2005 |
01 |
|
| 704 |
|
SEAL, CM/SHF POSN ACTR CVR (PART OF 703) |
|
2005-2005 |
|
| 725 |
12608814 |
ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (ACDelco #213-4333)
| ST1 (LH6) |
2005-2005 |
01 |
|
| 725 |
12608814 |
ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (1.150) (ACDelco #213-4333)
| ST1 (LH6) |
2005-2005 |
01 |
|
| 737 |
12593593 |
WIRE, CM/SHF POSN SEN (PART OF 502) (W/3-WAY INLINE CONNECTOR TO ENGINE HARNESS) |
ST1 (LH6) |
2005-2005 |
01 |
| 738 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 502)
|
2005-2005 |
01 |
|
