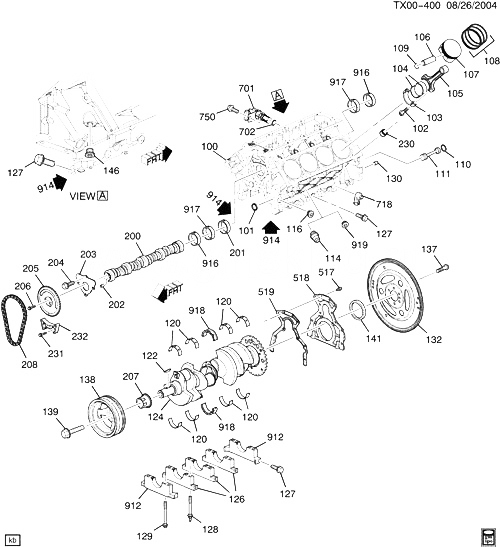

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
БЛОК, ДВИГАТЕЛЯ |
|
2005-2005 |
|
| 101 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2005-2006 |
01 |
| 102 |
12568069 |
БОЛТ, CONN ROD (PART OF 105) (M9X1X43) |
S1 (LS2) |
2005-2005 |
16 |
| 103 |
|
CAP, CONN ROD (PART OF 105) |
|
2005-2005 |
|
| 104 |
12493712 |
ПОДШИПНИК, ШАТУНА (STD) |
S1 (LS2) |
2005-2006 |
08 |
| 106 |
|
BUSHING, CONN ROD (PART OF 105) |
|
2005-2005 |
|
| 108 |
19178307 |
RING KIT, PSTN (W/4 DRILLED OIL DRAIN HOLES ON 3RD RING LAND.USE 19178307 RING T/W 19178305 PISTON ONLY.) (STD) |
S1 (LS2) |
2005-2005 |
08 |
| 108 |
89017484 |
RING KIT, PSTN (STD) (UPPER COMPRESSION IS 1.2MM THICK). WITHOUT 4 DRILLED OIL DRAIN HOLES ON 3RD RING LAND. USE 89017484 RING T/W 89017478 PISTON ONLY.) |
S1 (LS2) |
2005-2005 |
08 |
| 108 |
89017485 |
RING KIT, PSTN (.5MM O.S.) (UPPER COMPRESSION IS 1.2MM THICK) |
S1 (LS2) |
2005-2005 |
08 |
| 109 |
12569638 |
RETAINER, PSTN PIN (PART OF 107) |
S1 (LS2) |
2005-2005 |
16 |
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2005-2005 |
|
| 111 |
12573460 |
PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) |
S1 (LS2) |
2005-2006 |
01 |
| 114 |
12560179 |
HEATER, ENG COOL (W/3-PIN AND BRASS COLORED2ND DES 12586687.)
| S1 (LS2, K05) (1ST DES) |
2005-2005 |
01 |
|
| 114 |
12586687 |
HEATER, ENG COOL (W/2-PIN AND SILVER COLORED 1ST DESIGN 12560179.) |
S1 (LS2, K05) (2ND DES) |
2005-2005 |
01 |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE)
|
2005-2006 |
01 |
|
| 120 |
89017571 |
BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) |
S1 (LS2) |
2005-2006 |
04 |
| 122 |
12561513 |
KEY, CR/SHF BALR (4.8MMX37.5MM)
| S1 (LS2) |
2005-2005 |
01 |
|
| 124 |
12569768 |
КОЛЕНЧАТЫЙ ВАЛ, (FOR USE WITH FLOATING PIN PISTON) |
S1 (LS2) |
2005-2005 |
01 |
| 126 |
|
CAP, CR/SHF BRG |
|
2005-2005 |
|
| 127 |
12556127 |
БОЛТ, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24)
| S1 (LS2) |
2005-2006 |
10 |
|
| 128 |
12560273 |
STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG)
| S1 (LS2) |
2005-2005 |
10 |
|
| 129 |
12560272 |
БОЛТ, CR/SHF BRG CAP (M10X2X102.5, 24.5)
| S1 (LS2) |
2005-2006 |
10 |
|
| 130 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2005-2006 |
02 |
| 137 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| S1 (LS2, M32) |
2005-2006 |
06 |
|
| 138 |
12576652 |
BALANCER, CR/SHF |
S1 (LS2) |
2005-2005 |
01 |
| 139 |
12557840 |
БОЛТ, CR/SHF BALR (M16X2.0X103)
| S1 (LS2) |
2005-2005 |
01 |
|
| 141 |
89060436 |
SEAL KIT, CR/SHF RR OIL (REVERSE LIP SEAL, INCL INSTRUCTION SHEET)
| S1 (LS2) |
2005-2005 |
01 |
|
| 146 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE)
|
2005-2006 |
02 |
|
| 204 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CM/SHF RET)
|
2005-2006 |
04 |
|
| 230 |
12570326 |
PIN, CYL HD LOC
| S1 (LS2) |
2005-2005 |
04 |
|
| 231 |
11588364 |
БОЛТ, HFH, M8X1.25X34, 25 THD, 18 O.D., 9.8, GMW3359 (PART OF 232)
|
2005-2006 |
02 |
|
| 518 |
12615666 |
HOUSING, CR/SHF RR OIL SEAL (INCLS BOLT, HOUSING, SEAL, GASKET) |
S1 (LS2) |
2005-2006 |
01 |
| 519 |
12593587 |
ПРОКЛАДКА, CR/SHF RR OIL SEAL HSG |
S1 (LS2) |
2005-2005 |
01 |
| 702 |
|
SEAL, O-RING CR/SHF POSN (PART OF 701) |
|
2005-2005 |
|
| 750 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN)
|
2005-2006 |
01 |
|
| 912 |
|
CAP, CR/SHF BRG |
|
2005-2005 |
|
| 914 |
12346004 |
SEALANT, LOCTITE PIPE-W/TEFLON 50CC TUBE (SEALER, OIL PAN AT FOUR CORNER (ANAEROBIC GASKET SEALANT)
|
2005-2006 |
AR |
|
| 918 |
89017572 |
BEARING KIT, CR/SHF THR (STD) (#3) |
S1 (LS2) |
2005-2005 |
01 |
