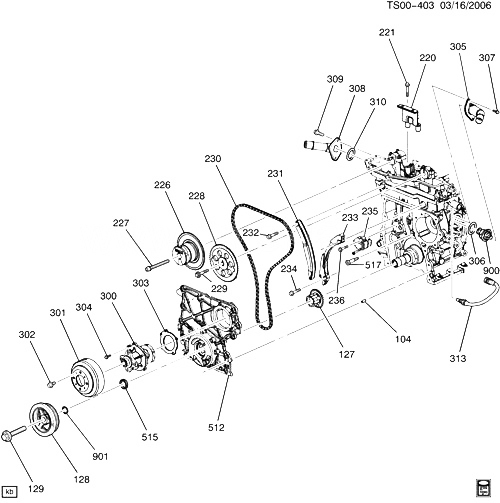

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 104 |
03525915 |
PIN, ENG FRT CVR LOC (DOWEL, 5.99X17.25, CHAM BOTH ENDS, 10.9) |
ST1 (LL8) |
2005-2005 |
02 |
| 127 |
24100061 |
SPROCKET, CR/SHF |
ST1 (LL8) |
2005-2005 |
01 |
| 128 |
12578069 |
BALANCER, CR/SHF (INCLS 12578073 WASHER) (INCLS 901) (HAS A STEP ON THE HUB FOR RETAINMENT OF FRICTION WASHER) (REQUIRES SEAL KIT 89017622) |
ST1 (LL8) |
2005-2005 |
01 |
| 129 |
11609792 |
БОЛТ, CR/SHF BALR (HEX HEAD WASHER, M16X2) |
ST1 (LL8) |
2002-2005 |
01 |
| 220 |
24577380 |
GUIDE, TMG CHAIN (TOP OF ENGINE) |
ST1 (LL8) |
2002-2005 |
01 |
| 221 |
11588718 |
БОЛТ, TMG CHAIN GDE (-HFH, M6X1X50, 22.7 THD, 14.2 OD, 8.8, GMW3359, MAT PT) (HFH, M6X1X50, 18 THD) (0.206) |
ST1 (LL8) |
2005-2005 |
02 |
| 226 |
12569502 |
ACTUATOR, CM/SHF POSN
| ST1 (LL8) |
2005-2005 |
01 |
|
| 227 |
24100263 |
БОЛТ, CM/SHF POSN ACTR (M10X1.5X103MM)
| ST1 (LL8) |
2002-2005 |
01 |
|
| 228 |
24100362 |
SPROCKET, CM/SHF (INCL PIN)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 229 |
12565425 |
БОЛТ, CM/SHF SPKT (M10X1.5-6GX59MM MATERIALMEDIUM CARBON ALLOY STL.)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 230 |
12571725 |
CHAIN, CM/SHF TMG
| ST1 (LL8) |
2005-2005 |
01 |
|
| 231 |
12568766 |
SHOE, TMG CHAIN TENSR
| ST1 (LL8) |
2005-2005 |
01 |
|
| 232 |
11518161 |
БОЛТ, HFH W/SHLDR, M8X1.25X30.5, 11.45 THD, 17OD, 9.8, PL, MACH, 6194M, MAT-PT (TMG CHAIN TENSR SHOE)
|
2002-2005 |
01 |
|
| 233 |
12575159 |
GUIDE, TMG CHAIN (FIXED LH)
| ST1 (LL8) |
2002-2005 |
01 |
|
| 234 |
11519038 |
BOLT-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (TMG CHAIN GDE)
|
2002-2005 |
02 |
|
| 235 |
12598504 |
TENSIONER, TMG CHAIN
| ST1 (LL8) |
2005-2005 |
01 |
|
| 236 |
11518138 |
БОЛТ, HFH, M8X1.25X30, 25.65 THD, 14 OD, 9.8, 4435M, MACH, HDR-PT (TMG CHAIN TENSR)
|
2002-2005 |
02 |
|
| 300 |
24576952 |
PUMP, WAT (W/GSKT) (INCLS 303) (ACDelco #251-635) |
ST1 (LL8) |
2002-2005 |
01 |
| 301 |
24576970 |
PULLEY, W/PMP |
ST1 (LL8) |
2005-2005 |
01 |
| 302 |
24576757 |
БОЛТ, W/PMP PUL (M8X1.25X19, 10.9) |
ST1 (LL8) |
2005-2005 |
04 |
| 303 |
24576956 |
ПРОКЛАДКА, W/PMP (PART OF 300) (ACDelco #251-2029)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 304 |
11517521 |
БОЛТ, HFH, M6X1X35, 17 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (W/PMP) |
|
2002-2005 |
05 |
| 305 |
12620112 |
HOUSING, ENG COOL THERM (THERMOSTAT, SEAL, TO WATER PUMP) (INCLS 306, 900) (ACDelco #15-11006)
| ST1 (LL8) |
2002-2005 |
01 |
|
| 306 |
12561155 |
SEAL, ENG COOL THERM HSG (O RING) (PART OF 305) (1.123)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 307 |
11517590 |
БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (ENG COOL THERM HSG)
|
2002-2005 |
02 |
|
| 308 |
24576963 |
OUTLET, WAT (INCLS 310) (ACDelco #15-1823)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 309 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (WAT OTLT)
|
2002-2005 |
02 |
|
| 310 |
24576967 |
SEAL, CLNT OTLT (O RING) (PART OF 308) (ACDelco #15-1824)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 313 |
12564512 |
ДАТЧИК, ENG COOL TEMP (2-WAY FEMALE) (3.682) (ACDelco #213-963)
| ST1 (LL8) |
2002-2005 |
01 |
|
| 313 |
12564512 |
ДАТЧИК, ENG COOL TEMP (2-WAY FEMALE) (ACDelco #213-963)
| ST1 (LL8) |
2002-2005 |
01 |
|
| 512 |
12601932 |
COVER, ENG FRT (W/OIL PMP) (INCLS SEAL (FRT CVR), GEARS, PLUG AND RELIEF VALVE) (СМ. ГРУППУ 00.000 МАСЛЯНЫЙ НАСОС, ПОДДОН И СВЯЗАННЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) |
ST1 (LL8) |
2005-2005 |
01 |
| 515 |
89017622 |
SEAL KIT, CR/SHF FRT OIL (BALANCERS HAVE A STEP ON THE HUB FOR RETAINMENT OF FRICTION WASHER)
| ST1 (LL8) |
2005-2005 |
01 |
|
| 517 |
12567157 |
SPACER, ENG FRT CVR BOLT
| ST1 (LL8) |
2005-2005 |
01 |
|
| 900 |
|
THERMOSTAT, ENG COOL (PART OF 305) |
|
2002-2005 |
|
| 901 |
12578073 |
WASHER, CR/SHF BALR (WASHER HAS LIP USED ON BALANCER WITH STEP) (FLAT, 33 ID, 45.5 OD, 5 THK) (PART OF 128)
| ST1 (LL8) |
2005-2005 |
01 |
|
