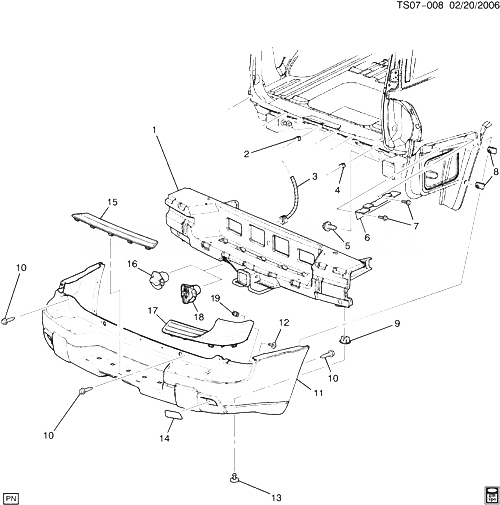

(TS07-008) - 2006-2007 ST(06) ЗАДНИЙ БАМПЕР (CHEVROLET X88, EXC SS PACKAGE B4U, UPLEVEL TRIM YC5,YC6) CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25863531 БАМПЕР, ЗАДНИЙ IMP (INCLS 9) (INCLS HITCH) ST1 (06) 2006-2009 01
002 11570654 ГАЙКА, RR BPR FASCIA (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) ST1 (06) 2006-2009 05
003 HARNESS, CHAS RR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VEIW) 2006-2009
004 11519497 ГАЙКА, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (RR BPR FASCIA) 2006-2009 02
005 11518436 БОЛТ, HFH W/TTH CON WA, M16X2X45, 20.5 THD, 36 OD, 10.9, 7114M, MACH, 6175M (RR BPR IMP BAR) 2006-2009 06
006 15128530 BRACKET, RR BPR FASCIA SI (METAL) ST1 (X88) (EXC B4U, YC5, YC6) 2006-2007 01
006 15128531 BRACKET, RR BPR FASCIA SI (METAL) ST1 (X88) (EXC B4U, YC5, YC6) 2006-2007 01
007 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (RR BPR FASCIA SI BRKT) 2006-2009 04
008 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR BPR FASCIA) 2006-2009 04
009 14103461 RETAINER, RR BPR FASCIA (PART OF 1) ST1 (06) 2006-2009 04
010 11570498 БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (RR BPR FASCIA) 2006-2009 11
011 88937016 FASCIA, RR BPR (PAINT TO MATCH) (W/O PADS) (FOR VEH W/3 STEP PADS) ST1 (06) (X88, ZY7) 2006-2006 01
011 88937016 FASCIA, RR BPR (PAINT TO MATCH) (W/O PADS) (FOR VEH W/3 STEP PADS) ST1 (06) (TGK, ZY1, X88) (EXC T96) 2006-2009 01
011 89045604 FASCIA, RR BPR (LOWER PORTION OF FASCIA HAS GRAINED FINISH) (PAINT TO MATCH) (W/O PADS) ST1 (06) (TGK, ZY1, T96, X88) (EXC BNB, B4U, YC5, YC6) 2006-2007 01
011 89045604 FASCIA, RR BPR (LOWER PORTION OF FASCIA HAS GRAINED FINISH) (PAINT TO MATCH) (W/O PADS) ST1 (06) (BNB, X88, ZY1) (EXPORT) 2006-2008 01
012 11517342 БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (RR BPR FASCIA PAD) 2006-2009 02
013 15733971 RETAINER, RR BPR FASCIA (13MM) (1.272) ST1 (06) 2006-2009 04
014 15000044 REFLECTOR, RR BPR ST1 (X88) (EXC B4U) 2006-2009 01
014 15000427 REFLECTOR, RR BPR ST1 (X88) (EXC B4U) 2006-2009 01
015 88938462 PAD, RR BPR STEP CTR (USED ON VEHICLES WITH 3 STEP PADS) ST1 (06) (X88) 2006-2009 01
016 15366057 CAP, TRLR WRG RCPT ST1 (06) (EXC UY7) 2006-2009 01
017 12335817 PAD, RR BPR STEP OTR ST1 (X88) 2006-2009 01
017 12335818 PAD, RR BPR STEP OTR ST1 (X88) 2006-2009 01
018 12191503 RECEPTACLE, TOW VEH ELEC (W/DOOR) ST1 2006-2009 01
019 11516372 ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (RR BPR FASCIA PAD) 2006-2009 04
