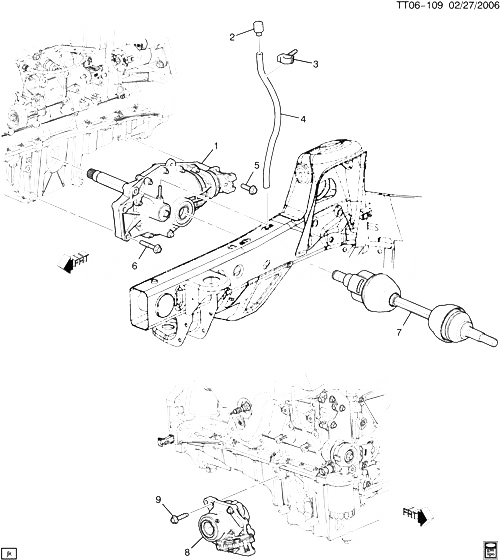

Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
001 |
|
CARRIER, FRT DIFF (СМ. ГРУППУ 06.000 ДИФФЕРЕНЦИАЛ/ПЕРЕДНЯЯ ОСЬ FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
002 |
15743069 |
VENT, FRT DIFF CARR |
T1 |
2005-2009 |
01 |
003 |
12160859 |
CLIP - CONDUIT, PUSH-IN FIR-TREE TYPE FOR 6MM CONVOLUTED CONDUIT (FRT DIFF CARR VENT HOSE) |
|
2002-2009 |
02 |
004 |
09438381 |
HOSE, BULK 5/32X25FT (FRT DIFF CARR VENT) |
|
2002-2009 |
01 |
005 |
11515778 |
БОЛТ, FRT DIFF CARR (M12X1.75X45, 30 THD) (8.900)
| T1 |
2002-2009 |
01 |
006 |
11515783 |
БОЛТ, FRT DIFF CARR (M12X1.75X70) (8.900) |
T1 |
2002-2009 |
03 |
007 |
|
SHAFT KIT, FRT WHL DRV (СМ. ГРУППУ 06.000 ПРИВОД/ПЕРЕДНИЕ КОЛЕСА FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
008 |
|
BEARING, FRT WHL DRV INTER SHF (СМ. ГРУППУ 06.000 ДИФФЕРЕНЦИАЛ/ПЕРЕДНЯЯ ОСЬ FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
009 |
11516504 |
БОЛТ, FRT WHL DRV INTER SHF BRG (M10X1.5X50) (4.083) |
T1 |
2005-2007 |
04 |
