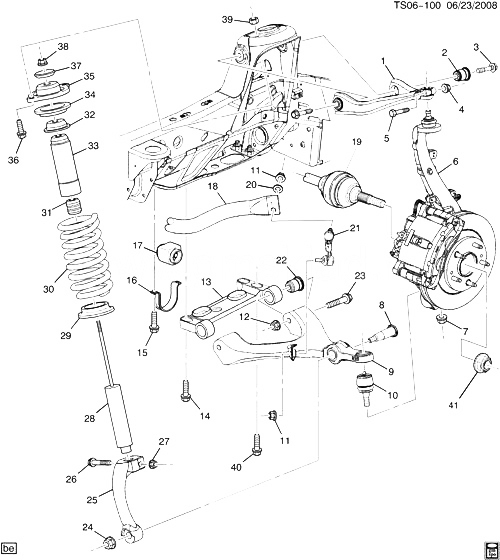

(TS06-100) - 2002-2007 ST ПЕРЕДНЯЯ ПОДВЕСКА CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25786774 ARM, FRT UPR CONT (INCLS 2) ST1 2002-2007 01
001 25786775 ARM, FRT UPR CONT (INCLS 2) ST1 2002-2007 01
002 BUSHING, FRT UPR CONT ARM (PART OF 1) 2002-2007
003 11519424 БОЛТ, FRT UPR CONT ARM (8.900) ST1 2005-2007 04
004 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (S/KNU) (ACDelco #11517996) 2002-2007 02
005 11518631 БОЛТ, HFH, M10X1.5X65, 26 THD, 22.3 OD, 10.9 STL, GMW3359 (S/KNU) 2002-2007 02
006 KNUCKLE, STRG (W/HUB) (СМ. ГРУППУ 04.000 КРЕПЛЕНИЕ СУППОРТА ТОРМОЗА/FRT KNUCKLE FOR DETAILED ILLUSTRATED VIEW) 2002-2007
007 11516383 ГАЙКА, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (S/KNU) 2002-2007 02
008 BUSHING, FRT SPR (PART OF 9) (*KIT2) 2002-2007
009 19133555 ARM, FRT LWR CONT (INCLS 8) (INCLS BALL JOINT) ST1 (06-36) 2004-2007
009 19133556 ARM, FRT LWR CONT (INCLS 8) (INCLS BALL JOINT) (INCLS STUD ASM AND BUSHING) ST1 (06-36) 2004-2007
010 19133670 STUD, FRT LWR CONT ARM BALL (*KIT2) ST1 2005-2007 02
011 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (PART OF 21) 2002-2007 04
012 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (FRT LWR CONT ARM) 2002-2007 04
013 15280281 BRACKET, FRT LWR CONT ARM (INCLS 22) (INCLS BUSHINGS) (*KIT2) ST1 2005-2007 01
013 25918965 BRACKET, FRT LWR CONT ARM (INCLS 22) (*KIT2) ST1 2005-2007 01
014 11518576 БОЛТ, FRT LWR CONT ARM FRT (M16X2X70) (8.900) ST1 2005-2007 02
015 11519083 БОЛТ, HEX W/CON WA, M10X1.5X36, 23.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (FRT STAB SHF INSL CLA) 2002-2007 04
016 15267515 CLAMP, FRT STAB SHF ST1 (B4U, Y91) 2006-2007 02
016 25797990 CLAMP, FRT STAB SHF ST1 (EXC B4U, Y91) 2006-2007 02
017 15125531 INSULATOR, FRT STAB SHF ST1 (B4U) 2006-2007 02
017 15125531 INSULATOR, FRT STAB SHF ST1 (Y91) 2006-2007 02
017 15128365 INSULATOR, FRT STAB SHF (INSULATOR HAS A COLLAR ON EACH SIDE) ST1 (06) (W49, X88, Z88, Z89) (EXC B4U, Y91) 2005-2006 02
018 15125526 SHAFT, FRT STAB (INCLS SLEEVE) (*KIT3) ST1 (B4U) 2005-2006 01
018 15125526 SHAFT, FRT STAB (INCLS SLEEVE) (*KIT3) ST1 (Y91) 2006-2006 01
018 15932191 SHAFT, FRT STAB (*KIT3) ST1 (06) (W49, X88, Z88, Z89) (EXC B4U, Y91) 2006-2006 01
019 SHAFT KIT, FRT WHL DRV (СМ. ГРУППУ 06.000 ПРИВОД/ПЕРЕДНИЕ КОЛЕСА FOR DETAILED ILLUSTRATED VIEW) T 2002-2007
020 11518404 WASHER, FLAT W/PLASTISOL INSERT, 9X27.2X4.5, 1050, 4345M (FRT STAB SHF LINK) 2002-2007 02
021 15918822 LINK, FRT STAB SHF ST1 2004-2007 01
021 15918823 LINK, FRT STAB SHF ST1 2004-2007 01
022 BUSHING, FRT LWR CONT ARM (PART OF 13) 2002-2007
023 11518255 BOLT-HFH, M14X2X100, 26.7 THD, 30.5 OD, 10.9, 7114M, MACH, CONE-PT (FRT LWR CONT ARM) (*KIT2) (CONTROL ARM TO BRACKET) 2002-2007 04
024 11516383 ГАЙКА, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (FRT SPR) 2002-2007 01
025 15743860 YOKE, FRT S/ABS ST1 2005-2007 02
026 11609232 БОЛТ, HFH, M12X1.75X75, 28.25 THD, 26.6 OD, 10.9, 7114M, MACH, HDR-PT (FRT SPR) 2002-2007 01
027 11516781 ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (FRT SPR) (*KIT1) (8.917) 2002-2007 01
028 15195074 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-128) ST158 (6FZ, 6HA, 6HB, 6HC, 6HD, 6HF, 6HH, 6HJ, 6HL, 6HM) 2004-2006 01
028 15195074 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-128) ST158 (7FZ, 7HA, 7HB, 7HC, 7HD, 7HF, 7HH, 7HJ, 7HL, 7HM) 2004-2006 01
028 15789588 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-229) ST158 (6HK, 6HM, 6HN, 6HP, 6HR, 6HS, 6HT, 6HU, 6HW) 2006-2006 01
028 15789588 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #540-229) ST158 (7HK, 7HM, 7HN, 7HP, 7HR, 7HS, 7HT, 7HU, 7HW) 2006-2006 01
028 15881659 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #560-562) ST158 (6TR, 6TS, 6TU, 6TW, 6TX, 6TY, 6UD, 6UF, 6UH) 2006-2006 01
028 15881659 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (*KIT1) (ACDelco #560-562) ST158 (7TR, 7TS, 7TU, 7TW, 7TX, 7TY, 7UD, 7UF, 7UH) 2006-2006 01
029 15757064 INSULATOR, FRT SPR (CODE DL, DM, DP, DR, DS, DT, DU, DW, DX, DY, DZ, FA, FB, FC, FD) (LOWER) (7.420) ST1 2002-2007 02
030 15125881 ПРУЖИНА, FRT ST158 (6FZ, 6HM, 6HU, 6JB, 6JC) 2006-2006 01
030 15125881 ПРУЖИНА, FRT ST158 (6TR) 2006-2006 01
030 15125881 ПРУЖИНА, FRT T158 (6HK) 2006-2006 01
030 15125881 ПРУЖИНА, FRT ST158 (7FZ, 7HM, 7HU, 7JB, 7JC) 2006-2006 01
030 15125881 ПРУЖИНА, FRT ST158 (7TR) 2006-2006 01
030 15125881 ПРУЖИНА, FRT T158 (7HK) 2006-2006 01
030 15125881 ПРУЖИНА, FRT ST1 (6DL, 6FH, 6FP) 2006-2007 01
030 15125881 ПРУЖИНА, FRT ST1 (7DL, 7FH, 7FP) 2006-2007 01
030 15125882 ПРУЖИНА, FRT ST158 (6HA) 2006-2006 01
030 15125882 ПРУЖИНА, FRT ST158 (6TS) 2006-2006 01
030 15125882 ПРУЖИНА, FRT ST158 (7HA) 2006-2006 01
030 15125882 ПРУЖИНА, FRT ST158 (7TS) 2006-2006 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST158 (6HZ) 2006-2006 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST158 (6TU) 2006-2006 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) T158 (6HN) 2006-2006 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST158 (7HZ) 2006-2006 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) ST158 (7TU) 2006-2006 01
030 15125883 ПРУЖИНА, FRT (CODE 7CP, 7DA, 7DX, 7FD, 7LM, 7NH) T158 (7HN) 2006-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (6HC) 2004-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (6JL) 2004-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (7HC) 2004-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (7JL) 2004-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (6FT, 6JA) 2006-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (6HP) 2006-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (6TW) 2006-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (7FT, 7JA) 2006-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (7HP) 2006-2006 01
030 15125884 ПРУЖИНА, FRT ST158 (7TW) 2006-2006 01
030 15125885 ПРУЖИНА, FRT ST158 (6HD) 2005-2006 01
030 15125885 ПРУЖИНА, FRT ST158 (7HD) 2005-2006 01
030 15125885 ПРУЖИНА, FRT ST158 (6FU) 2006-2006 01
030 15125885 ПРУЖИНА, FRT ST158 (6JB) 2006-2006 01
030 15125885 ПРУЖИНА, FRT ST158 (6TX) 2006-2006 01
030 15125885 ПРУЖИНА, FRT T158 (6HR) 2006-2006 01
030 15125885 ПРУЖИНА, FRT ST158 (7FU) 2006-2006 01
030 15125885 ПРУЖИНА, FRT ST158 (7JB) 2006-2006 01
030 15125885 ПРУЖИНА, FRT ST158 (7TX) 2006-2006 01
030 15125885 ПРУЖИНА, FRT T158 (7HR) 2006-2006 01
030 15125886 ПРУЖИНА, FRT ST158 (6HF, 6JC) 2005-2006 01
030 15125886 ПРУЖИНА, FRT ST158 (7HF, 7JC) 2005-2006 01
030 15125886 ПРУЖИНА, FRT ST158 (6TY) 2006-2006 01
030 15125886 ПРУЖИНА, FRT T158 (6HS) 2006-2006 01
030 15125886 ПРУЖИНА, FRT ST158 (7TY) 2006-2006 01
030 15125886 ПРУЖИНА, FRT T158 (7HS) 2006-2006 01
030 15125887 ПРУЖИНА, FRT ST158 (6UD) 2006-2006 01
030 15125887 ПРУЖИНА, FRT T158 (6HT) 2006-2006 01
030 15125887 ПРУЖИНА, FRT ST158 (7UD) 2006-2006 01
030 15125887 ПРУЖИНА, FRT T158 (7HT) 2006-2006 01
030 15125888 ПРУЖИНА, FRT ST158 (6UF) 2006-2006 01
030 15125888 ПРУЖИНА, FRT T158 (6HU) 2006-2006 01
030 15125888 ПРУЖИНА, FRT ST158 (7UF) 2006-2006 01
030 15125888 ПРУЖИНА, FRT T158 (7HU) 2006-2006 01
030 15125889 ПРУЖИНА, FRT ST158 (6HL) 2006-2006 01
030 15125889 ПРУЖИНА, FRT ST158 (6UH) 2006-2006 01
030 15125889 ПРУЖИНА, FRT T158 (6HW) 2006-2006 01
030 15125889 ПРУЖИНА, FRT ST158 (7HL) 2006-2006 01
030 15125889 ПРУЖИНА, FRT ST158 (7UH) 2006-2006 01
030 15125889 ПРУЖИНА, FRT T158 (7HW) 2006-2006 01
031 15159045 BUMPER, FRT S/ABS UPR ST158 2006-2006 02
032 15757063 RETAINER, FRT S/ABS BPR (*KIT1) ST1 2005-2007 02
033 15196797 BOOT, FRT S/ABS ST1 2005-2007 02
034 INSULATOR, FRT SPR (PART OF 35) 2002-2007
035 15743856 INSULATOR, FRT SPR (CODE DL, DM, DP, DR, DS, DT, DU, DW, DX, DY, DZ, FA, FB, FC, FD) (INCLS 34, 36) (TOP MOUNT) (7.420) ST1 2002-2007 02
036 STUD, FRT SPR (PART OF 35) 2002-2007
037 15758160 WASHER, FRT SPR (*KIT1) ST1 2005-2007 02
038 11516781 ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (FRT SPR) (8.917) 2002-2007 02
039 11516781 ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (FRT SPR) (8.917) 2002-2007 02
040 11518576 БОЛТ, FRT LWR CONT ARM RR (M16X2X70) (8.900) ST1 2005-2007 04
041 10289657 ГАЙКА, FRT WHL DRV SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE) T1 2005-2007 02
