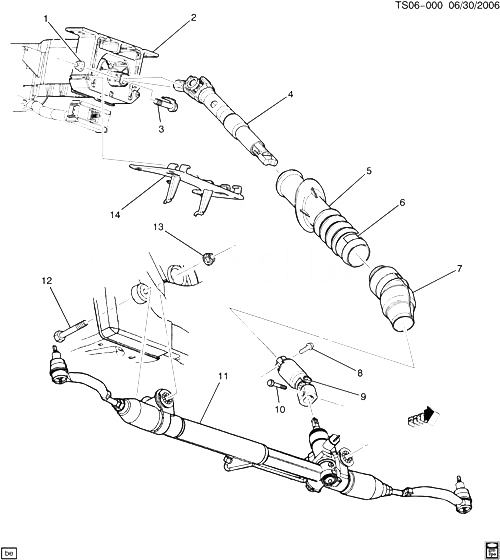

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (UPR INTER STRG SHF) (2.383)
|
2002-2009 |
01 |
|
| 002 |
|
COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
| 003 |
26058124 |
БОЛТ, UPR INTER STRG SHF (M10X1.5X36) (HFH W/RETAINER NYLON LOCK) (UPR TO STRG COL) |
ST1 |
2002-2009 |
01 |
| 004 |
15206668 |
SHAFT, UPR INTER STRG (6.524)
| ST158 |
2002-2006 |
01 |
|
| 005 |
15064639 |
SEAL, INTER STRG SHF UPR (INCLS 6) |
ST1 |
2006-2009 |
01 |
| 006 |
|
LABEL, INFL RST SYS SERV CAUTION (PART OF 5) |
|
2006-2009 |
|
| 007 |
15155711 |
SEAL, INTER STRG SHF LWR (6.518) |
ST1 |
2005-2007 |
01 |
| 008 |
11518143 |
БОЛТ, INTER STRG SHF UPR (M10X1.5X38, 14.5) (8.900)
| ST1 |
2002-2009 |
01 |
|
| 009 |
15880680 |
SHAFT, LWR INTER STRG
| ST158 (06) |
2005-2006 |
01 |
|
| 010 |
11518143 |
БОЛТ, INTER STRG SHF LWR (M10X1.5X38, 14.5) (8.900)
| ST1 |
2002-2009 |
01 |
|
| 011 |
|
GEAR, STRG (СМ. ГРУППУ 06.000 РУЛЕВОЙ МЕХАНИЗМ В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
| 012 |
11519349 |
БОЛТ, S/GR (STAMPED ZA) (M14X2X140, 45 THD) (8.900) |
ST1 (N40) |
2005-2009 |
02 |
| 013 |
11516382 |
ГАЙКА, S/GR (M14X2X15) (W/O J CLIP RETAINER) (8.917)
| ST1 |
2005-2009 |
02 |
|
| 014 |
15017151 |
BRACKET, BODY WRG HARN STRG COL CONN |
ST1 (EXC DAY) |
2006-2007 |
01 |
| 014 |
15076504 |
BRACKET, BODY WRG HARN STRG COL CONN |
ST1 (DAY) |
2006-2007 |
01 |
