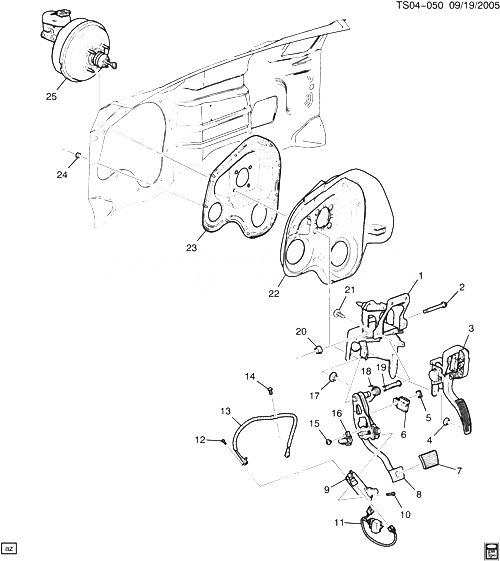

(TS04-050) - 2006-2009 ST(06) ПЕДАЛЬ ТОРМОЗА - КРЕПЛЕНИЕ (POWER ADJUSTABLE PEDAL JF4) CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19148880 BRACKET, BRK ACCEL PED (4.634) ST1 (JF4, JF8) 2005-2009 01
001 19148880 BRACKET, BRK ACCEL PED ST1 (JF4, JF8) 2005-2009 01
002 15000145 БОЛТ, BRK PED PIV (12X1.75X120, 25) ST1 2004-2009 01
003 PEDAL, ACCEL (W/BRKT) (СМ. ГРУППУ 03.000 УПРАВЛЕНИЕ АКСЕЛЕРАТОРОМ FOR DETAILED ILLUSTRATED VIEW) (INCLS 4) 2004-2009
004 ГАЙКА, ACCEL PED BRKT (PART OF 3) 2006-2009
005 15048329 RETAINER, BRK PED PUSH ROD (29.13 MM) (WITHOUT BOLT) ST1 (DAY, OKL) 2004-2009 01
006 25771554 SWITCH, S/LP (ACDelco #D1588G) ST1 2005-2009 01
007 88964292 PAD, BRK PED ST1 (JF4) 2004-2009 01
008 19121977 PEDAL, BRK (INCLS 9, 10, 12, 13, 19) ST1 (JF4, JF8) 2006-2009 01
009 MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 8) 2006-2009
010 БОЛТ, BRK ACCEL PED ADJ ACTR MTR) (PART OF 8) 2006-2009
011 89038607 HARNESS, BRK PED POSN SEN (W/MEMORY) (2.525) ST1 (LH6, AAB, JF4) 2006-2006 01
011 89038607 HARNESS, BRK PED POSN SEN (W/MEMORY) (2.525) ST1 (LL8, AAB, JF4) 2006-2006 01
011 89038607 HARNESS, BRK PED POSN SEN (W/MEMORY) (2.525) ST1 (M30, M70, AAB, DAY, JF4, JF8) 2006-2006 01
012 БОЛТ, ACCEL PED ADJ ACTR CBL (PART OF 8) 2006-2009
013 CABLE, BRK PED ADJR ACTR (PART OF 8) 2006-2009
014 88966995 RETAINER, BRK PED (W/O SCREW) ST1 2004-2009 01
014 89038603 RETAINER, BRK PED (W/SCREW) ST1 2004-2009 01
015 88982978 БОЛТ, BRK PED POSN SEN ST1 2004-2009 02
016 88982977 ДАТЧИК, BRK PED POSN ST1 2004-2009 01
017 11517996 ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917) ST1 (DAY, JF8) 2004-2006 04
017 11517996 ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917) ST1 (OKL) 2004-2006 04
018 19210583 ПРУЖИНА, BRK PED RTN ST1 (JF4, JF8) 2004-2009 01
019 BUSHING, BRK PED PIV (PART OF 8) 2006-2009
020 11514598 ГАЙКА, BRK PED PIV (HF 12X1.75) (8.915) ST1 2004-2009 01
021 11589166 БОЛТ, BRK PED (8.900) ST1 2004-2009 04
022 15870865 INSULATOR, BRK PED BRKT PLT ST1 (06) 2006-2009 01
023 15247616 PLATE, BRK PED BRKT ST1 (JF8, M30, M70) 2006-2009 01
024 11516781 ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (I/P CARR SUPT) (8.917) 2004-2009 09
025 BOOSTER, P/B (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ УСИЛИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) 2004-2009
