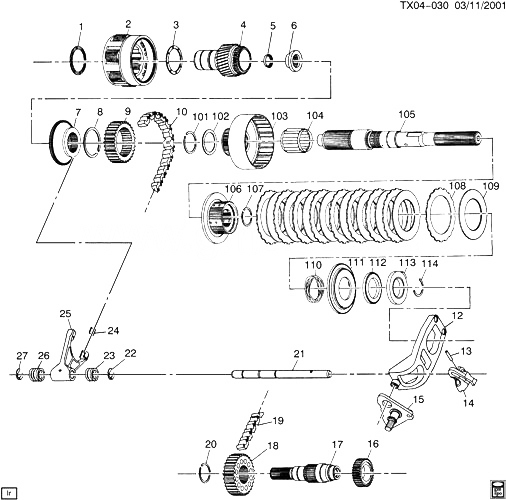

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88935673 |
WASHER, TRFER CASE HIGH/LOW PLNT CARR THR (FRONT) |
T1 (NP8) |
2002-2009 |
01 |
| 002 |
88962360 |
CARRIER, TRFER CASE HIGH/LOW PLNT |
T1 |
2002-2009 |
01 |
| 003 |
88935674 |
WASHER, TRFER CASE HIGH/LOW PLNT CARR THR (REAR) |
T1 (NP8) |
2002-2009 |
01 |
| 004 |
88935672 |
GEAR, TRFER CASE INPUT (W/INPUT SHF) |
T1 (NP8) |
2004-2009 |
01 |
| 005 |
88935695 |
SEAL, TRFER CASE INPUT SHF (BORE SEAL) (INNER)
| T1 (NP8) |
2004-2009 |
01 |
|
| 006 |
88935694 |
BEARING, TRFER CASE INPUT SHF THR
| T1 |
2006-2009 |
01 |
|
| 007 |
89059614 |
СЦЕПЛЕНИЕ, TRFER CASE HIGH/LOW |
T1 |
2002-2009 |
01 |
| 008 |
12547606 |
RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (TO HUB) (1.5) (4.537)
| T1 |
2002-2009 |
01 |
|
| 009 |
88935659 |
SPROCKET, TRFER CASE FRT OUTPUT SHF DRV |
T1 |
2005-2009 |
01 |
| 010 |
89059627 |
CHAIN, TRFER CASE TWO/FOUR WHL DRV
| T1 (NP8) |
2005-2009 |
01 |
|
| 012 |
19178970 |
LEVER, TRFER CASE FOUR WHL DRV CLU (USE T/W 19178973)
| T1 |
2002-2009 |
01 |
|
| 013 |
19132965 |
PIN, TYPE-C-SPRING 3/16X1 1/4 ZC (TRFER CASE TWO/FOUR WHL DRV SHFT FORK) |
|
2002-2009 |
01 |
| 014 |
88935649 |
LEVER, TRFER CASE SHFT DTNT (RANGE COLLAR) |
T1 |
2002-2008 |
01 |
| 015 |
88935647 |
SHAFT, TRFER CASE CONT ACTR LVR |
T1 (NP8) |
2004-2009 |
01 |
| 016 |
88935658 |
WHEEL, TRFER CASE FRT OUTPUT SHF SPD RELUCTOR (4.329) |
T1 |
2005-2009 |
01 |
| 016 |
88935658 |
WHEEL, TRFER CASE FRT OUTPUT SHF SPD RELUCTOR |
T1 |
2002-2009 |
01 |
| 017 |
88935657 |
SHAFT, TRFER CASE FRT OUTPUT (W/WHEEL) |
T1 |
2002-2009 |
01 |
| 018 |
88935660 |
SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN |
T1 |
2002-2009 |
01 |
| 018 |
88935660 |
SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN |
T1 (NP8) |
2005-2009 |
01 |
| 019 |
89059627 |
CHAIN, TRFER CASE TWO/FOUR WHL DRV
| T1 (NP8) |
2005-2009 |
01 |
|
| 020 |
12547477 |
RING, TRFER CASE TWO/FOUR WHL DRV DRVN SPKT RET (2.5) (OUTER)
| T1 |
2003-2006 |
01 |
|
| 021 |
88935648 |
SHAFT, TRFER CASE SHFT FORK |
T1 |
2002-2009 |
01 |
| 022 |
88935662 |
RETAINER, TRFER CASE SHFT FORK SPR
| T1 |
2002-2009 |
02 |
|
| 023 |
88935663 |
ПРУЖИНА, TRFER CASE SHFT FORK |
T1 |
2002-2009 |
02 |
| 024 |
|
PAD, TRFER CASE RANGE SHFT FORK CTR (PART OF 25) |
|
2004-2009 |
|
| 025 |
88935664 |
FORK, TRFER CASE HIGH/LOW SHFT (INCLS 24) |
T1 |
2002-2008 |
01 |
| 026 |
88935663 |
ПРУЖИНА, TRFER CASE SHFT FORK |
T1 |
2002-2009 |
02 |
| 027 |
88935662 |
RETAINER, TRFER CASE SHFT FORK SPR
| T1 |
2002-2009 |
02 |
|
| 101 |
88935696 |
RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (TO HOUSING) (ACDelco #88935696)
| T1 |
2002-2009 |
01 |
|
| 102 |
88935697 |
WASHER, TRFER CASE RR OUTPUT SHF THR (TO СЦЕПЛЕНИЕ HOUSING)
| T1 |
2004-2009 |
01 |
|
| 103 |
88935698 |
HOUSING, TRFER CASE FOUR WHL DRV CLU |
T1 (NP8) |
2005-2009 |
01 |
| 104 |
12470557 |
BEARING, TRFER CASE FOUR WHL DRV CLU HSG
| T1 (NP8) |
2004-2009 |
01 |
|
| 105 |
88935654 |
SHAFT, TRFER CASE RR OUTPUT |
T1 (NP8) |
2002-2009 |
01 |
| 106 |
88935699 |
HUB, TRFER CASE FOUR WHL DRV CLU
| T1 (NP8) |
2005-2009 |
01 |
|
| 107 |
12547606 |
RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (TO HUB) (1.5) (4.537)
| T1 |
2002-2009 |
01 |
|
| 108 |
88935700 |
PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (STEEL)
| T1 |
2002-2009 |
09 |
|
| 109 |
88935701 |
PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (FRICTION)
| T1 |
2002-2009 |
09 |
|
| 110 |
88935702 |
ПРУЖИНА, TRFER CASE FOUR WHL DRV CLU
| T1 (NP8) |
2005-2009 |
01 |
|
| 111 |
88935703 |
PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (APPLY) |
T1 |
2002-2009 |
01 |
| 112 |
19178973 |
BEARING, TRFER CASE FOUR WHL DRV CLU PRESS PLT (INCLS 113) (USE T/W 19178970)
| T1 |
2002-2009 |
01 |
|
| 113 |
|
PLATE, TRFER CASE FOUR WHL DRV CLU BKG (PART OF 112) |
|
2004-2009 |
|
| 114 |
12547623 |
RING, TRFER CASE FOUR WHL DRV CLU PRESS PLT BRG HUB RET
| T1 |
2005-2009 |
01 |
|
