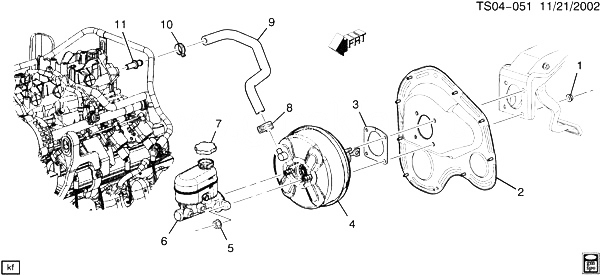

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11517996 |
ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917)
| ST1 (DAY, JF8) |
2003-2006 |
04 |
|
| 001 |
11517996 |
ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917)
| ST1 (OKL) |
2003-2006 |
04 |
|
| 002 |
15247616 |
PLATE, BRK PED BRKT |
ST1 (JF8, M30, M70) |
2006-2009 |
01 |
| 003 |
15015355 |
SEAL, P/B BOOS |
ST155, 158 (06) (JF8) |
2006-2006 |
01 |
| 004 |
|
BOOSTER, P/B (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ УСИЛИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) (4.901) |
|
2003-2009 |
|
| 005 |
11517996 |
ГАЙКА, BRK M/CYL (M10X1.5, 11.2 THK) (8.917)
| ST1 (06) (JF8) |
2006-2009 |
02 |
|
| 006 |
|
CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2009 |
|
| 007 |
22688449 |
CAP, BRK M/CYL RSVR
| ST1 (06) (JF8) |
2006-2008 |
01 |
|
| 008 |
11516220 |
CLAMP, 20MM DIA HOSE, 15MM WIDTH, 6298M MATL (PART OF 9) |
|
2003-2009 |
01 |
| 009 |
15196824 |
HOSE, P/B BOOS VAC (INCLS 8, 10, 11) (ACDelco #176-1145) |
ST1 (06) (LH6, LS2, JF8) |
2006-2009 |
01 |
| 010 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (PART OF 9) (ACDelco #1470030) |
|
2003-2009 |
01 |
| 011 |
12559760 |
NIPPLE, P/B BOOS VAC HOSE (PART OF 9) |
ST1 (06) (LH6, LS2, JF8) |
2006-2009 |
01 |
