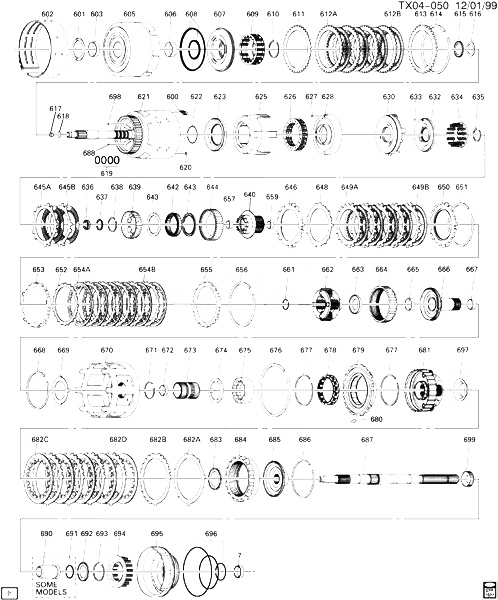

(TX04-050) - 2002-2009 ST АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M30) ЧАСТЬ 3 (4L60-E) ДЕТАЛИ СЦЕПЛЕНИЯ CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
007 08680027 BUSHING, PROP SHF FRT SLIP YOKE (INSIDE DIA 1.506-1.509) (PART OF TRANS CASE) (4.104) ST1 2002-2009 01
600 08667424 ПРУЖИНА, 3RD 4TH CLU BOOST (INCLS RET (2) SPRINGS) (ACDelco #8667424) ST1 (M30) 2002-2009 05
601 08642041 WASHER, REV INPUT CLU HSG THR (1.52-1.63MM) (4.226) (ACDelco #08642041) ST1 (M30) 2002-2009 01
602 24232236 BAND, 2-4 (ACDelco #24232236) ST1 (M30) 2005-2009 01
603 08642905 BUSHING, REV INPUT CLU HSG FRT (PART OF 605) (ACDelco #8642905) ST1 (M30) 2005-2009 01
605 08681295 HOUSING, REV INPUT CLU (INCLS 603, 606) (ACDelco #8681295) ST1 (M30) 2002-2007 01
606 08628917 BUSHING, DIR CLU HSG RR (PART OF 605) (ACDelco #8628917) ST1 (M30) 2005-2009 01
607 08667841 PISTON, REV INPUT CLU (.095 HOLE) (ACDelco #8667841) ST1 (M30) 2005-2009 01
608 08683960 SEAL KIT, REV INPUT CLU (*KIT2) (ACDelco #8683960) ST1 (M30) 2005-2009 01
609 08647284 ПРУЖИНА, REV INPUT CLU (ACDelco #8647284) ST1 (M30) 2002-2009 01
610 08628059 RING, REV INPUT CLU SPR RET (*KIT4) (ACDelco #8628059) ST1 (M30) 2005-2009 01
611 08663074 PLATE, REV INPUT CLU (WAVED) (ACDelco #8663074) ST1 (M30) 2005-2009 01
612 08673605 PLATE, REV INPUT CLU (ILLUSTRATED AS 612B) (153MM DIA) (FIBER) (*KIT9) (ACDelco #8673605) ST1 (M30) 2005-2009 04
612 24205267 PLATE, REV INPUT CLU (ILLUSTRATED AS 612A) (1.97MM THICK) (W/HOLES IN TURB PLATES) (STEEL) (ACDelco #24205267) ST1 (M30) 2005-2009 04
613 24212463 PLATE, REV INPUT CLU BKG (5.787-5.947MM) (ACDelco #24212463) ST1 (M30) 2002-2009 01
613 24212464 PLATE, REV INPUT CLU BKG (6.518-6.678MM) (ACDelco #24212464) ST1 (M30) 2005-2009 01
613 24212465 PLATE, REV INPUT CLU BKG (7.409-7.249MM) (ACDelco #24212465) ST1 (M30) 2005-2009 01
614 08667022 RING, REV INPUT CLU BKG PLT RET (ACDelco #8667022) ST1 (M30) 2005-2009 01
615 08642066 BEARING, REV INPUT CLU HSG THR (ACDelco #8642066) ST1 (M30) 2005-2009 01
616 08642067 WASHER, REV INPUT CLU HSG THR (1.87-1.97MM) (4.158) (ACDelco #8642067) ST1 (M30) 2005-2009 01
616 08642068 WASHER, REV INPUT CLU HSG THR (2.04-2.14MM) (4.158) (ACDelco #8642068) ST1 (M30) 2005-2009 01
616 08642069 WASHER, REV INPUT CLU HSG THR (2.21-2.31MM) (4.158) (ACDelco #8642069) ST1 (M30) 2005-2009 01
616 08642070 WASHER, REV INPUT CLU HSG THR (2.38-2.48MM) (4.158) (ACDelco #8642070) ST1 (M30) 2005-2009 01
616 08642071 WASHER, REV INPUT CLU HSG THR (2.55-2.65MM) (4.158) (ACDelco #8642071) ST1 (M30) 2005-2009 01
616 08642072 WASHER, REV INPUT CLU HSG THR (2.72-2.82MM) (4.158) (ACDelco #8642072) ST1 (M30) 2005-2009 01
616 08642073 WASHER, REV INPUT CLU HSG THR (2.89-2.99MM) (4.158) (ACDelco #8642073) ST1 (M30) 2005-2009 01
616 08642074 WASHER, REV INPUT CLU HSG THR (3.06-3.16MM) (4.158) (ACDelco #8642074) ST1 (M30) 2005-2009 01
617 08685839 VALVE, TURB SHF BALL CHK (ACDelco #8685839) ST1 (M30) 2005-2009 01
618 24212987 SEAL, TURB SHF (O RING) (*KIT2) (ACDelco #24212987) ST1 (M30) 2002-2009 01
619 08667035 RING, INPUT SHF FLUID SEAL (TEFLON) (*KIT2) (ACDelco #8667035) ST1 (M30) 2005-2009 04
620 24208262 VALVE, 3-4 CLU HSG BALL CHK (PART OF 621) (ACDelco #24208262) ST1 (M30) 2005-2009 01
621 24230654 HOUSING, 3-4 CLU (W/INPUT SHF) (INCLS 620, 688, 698) (ACDelco #24230654) ST1 (M30) 2006-2009 01
622 SEAL, FWD CLU HSG (O RING) (*KIT1) 2002-2009
623 24200290 PISTON, 3-4 CLU (ACDelco #24200290) ST1 (M30) 2005-2009 01
625 08685043 RING, 3-4 CLU APPL (1 BAR) (ACDelco #8685043) ST1 (M30) 2005-2009 01
626 08685244 ПРУЖИНА, 3-4 CLU (105.12MM O.D.) (ACDelco #8685244) ST1 (M30) 2002-2009 01
627 24205181 VALVE, FWD CLU HSG BALL CHK (PART OF 628) (SHORT WIDE) (ACDelco #24205181) ST1 (M30) 2005-2009 01
628 24205298 HOUSING, FWD CLU (INCLS 627) (INCLS HOUSINGS VALVE) (ACDelco #24205298) ST1 (M30) 2005-2009 01
630 24205272 PISTON, FWD CLU (INCLS SEALING ELEMENT) (ACDelco #24205272) ST1 (M30) 2005-2009 01
632 24205273 PISTON, OVERRUN CLU (INCLS 633) (STEEL W/ INTEGRAL SEAL) (ACDelco #24205273) ST1 (M30) 2005-2009 01
633 07002117 2002-2009 01
634 24206085 ПРУЖИНА, OVERRUN CLU (ACDelco #24206085) ST1 (M30) 2005-2009 01
635 11500692 RING, OVERRUN CLU SPR RET (OVERRUN CLU SPR RET) (*KIT4) (ACDelco #11500692) 2002-2009 01
636 08677268 SEAL, OUTPUT SHF (29 TEETH/SPLINE) (*KIT1) (ACDelco #8677268) ST1 (M30) 2005-2009 01
637 08642162 BEARING, INPUT SUN GR THR (ACDelco #8642162) ST1 (M30) 2005-2009 01
638 08647083 RING, OVERRUN CLU HUB RET (PART OF 642) (*KIT4) (ACDelco #8647083) ST1 (M30) 2005-2009 01
639 HUB, OVERRUN CLU (PART OF 642) 2002-2009
640 24226180 GEAR, INPUT SUN (PART OF 642) (ACDelco #24226180) ST1 (M30) 2002-2007 01
642 24243750 SPRAG, FWD CLU (GROOVED) (INCLS 638-640, 643, 644, 657, 659) (4.164) (ACDelco #24243750) ST1 (M30) 2005-2009 01
643 RETAINER, FWD CLU RLR (PART OF 642) 2002-2009
644 RACE, FWD CLU RLR OTR (PART OF 642) 2002-2009
645 08642154 PLATE, OVERRUN CLU (ILLUSTRATED AS 645A) (2.34MM THK) (FLAT STEEL) (ACDelco #8642154) ST1 (M30) 2005-2009 02
645 24210766 PLATE, OVERRUN CLU (ILLUSTRATED AS 645B) (1.93-2.13 THK) (GROOVED) (*KIT9) (ACDelco #24210766) ST1 (M30) 2005-2009 02
646 24212462 PLATE, FWD CLU APPLY (ACDelco #24212462) ST1 (M30) 2005-2009 01
648 08647058 PLATE, FWD CLU (WAVED) (ACDelco #8647058) ST1 (M30) 2005-2009 01
649 08654325 PLATE, FWD CLU (ILLUSTRATED AS 649A) (STEEL) (*KIT5, KIT9) (ACDelco #8654325) ST1 (M30) 2005-2009 05
649 24232517 PLATE, FWD CLU (V-NOTCH) (ILLUSTRATED AS 649B) (DOUBLE PARALLEL GROOVES) (*KIT5, KIT9) (ACDelco #24232517) ST1 (M30) 2005-2009 05
650 24212466 PLATE, FWD CLU BKG (4.56MM-4.71MM) (ACDelco #24212466) (ID E) ST1 (M30) 2005-2009 01
650 24212467 PLATE, FWD CLU BKG (5.15MM-5.30MM) (ACDelco #24212467) (ID D) ST1 (M30) 2005-2009 01
650 24212468 PLATE, FWD CLU BKG (5.74MM-5.89MM) (ACDelco #24212468) ST1 (M30) 2005-2009 01
650 24212469 PLATE, FWD CLU BKG (6.33MM-6.48MM) (ACDelco #24212469) ST1 (M30) 2002-2009 01
650 24212470 PLATE, FWD CLU BKG (6.9-7.1MM) (ACDelco #24212470) ST1 (M30) 2005-2009 01
651 08642170 RING, FWD CLU BKG PLT RET (ACDelco #8642170) ST1 (M30) 2005-2009 01
652 PLATE, 3-4 CLU (PART OF 654) 2002-2009
653 08685044 PLATE, 3-4 CLU APPLY (ACDelco #8685044) ST1 (M30) 2005-2009 01
654 24238600 PLATE KIT, 3-4 CLU (INCLS 652) (INCLS STEEL FIBER PLATES) (ACDelco #24238600) ST1 (M30) 2002-2009 01
655 24212459 PLATE, 3-4 CLU BKG (3.90-4.10MM) (ACDelco #24212459) ST1 (M30) 2005-2009 01
655 24212460 PLATE, 3-4 CLU BKG (4.79-4.99MM) (ACDelco #24212460) ST1 (M30) 2005-2009 01
655 24212461 PLATE, 3-4 CLU BKG (5.68-5.88MM) (ACDelco #24212461) ST1 (M30) 2005-2009 01
656 08663636 RING, 3-4 CLU BKG PLT RET (ACDelco #8663636) ST1 (M30) 2005-2009 01
657 08642181 BUSHING, OUTPUT SHF (PART OF 642) (FRT RR) (4.159) (ACDelco #8642181) ST1 (M30) 2002-2007 02
659 08642181 BUSHING, OUTPUT SHF (PART OF 642) (FRT RR) (4.159) (ACDelco #8642181) ST1 (M30) 2002-2007 02
661 08654141 RING, OUTPUT SHF RET (*KIT2, KIT4) (ACDelco #8654141) ST1 (M30) 2005-2009 01
662 24243875 CARRIER KIT, INPUT (INCLS 665-667) (ACDelco #24243875) ST1 (M30) 2005-2006 01
663 24217327 BEARING, REACTION CARR THR (TP REACTION SHF) (43.0 ID X 64.57 OD) (ACDelco #24217327) ST1 (M30) 2002-2006 01
664 24219410 GEAR, INPUT INTL (ACDelco #24219410) ST1 (M30) 2005-2009 01
665 08642908 BUSHING, REACTION CARR SHF FRT (PART OF 662) (ACDelco #8642908) ST1 (M30) 2005-2007 01
666 SHAFT, REACTION CARR (PART OF 662) 2002-2007
667 08642907 BUSHING, REACTION CARR SHF RR (PART OF 662) (ACDelco #8642907) ST1 (M30) 2005-2007 01
668 08642201 RING, REACTION CARR SHF RET (ACDelco #8642201) ST1 (M30) 2005-2009 01
669 08642331 WASHER, REACTION SUN GR SHELL THR (4.176) (ACDelco #8642331) ST1 (M30) 2005-2009 01
670 24217145 SHELL, REACTION SUN GR (ACDelco #24217145) ST1 (M30) 2005-2009 01
671 08681553 RING, REACTION SUN GR RET (ACDelco #8681553) ST1 (M30) 2005-2009 01
672 08642909 BUSHING, REACTION SUN GR (PART OF 673) (ACDelco #8642909) ST1 (M30) 2005-2009 01
673 24241250 GEAR, REACTION SUN (INCLS 672) (ACDelco #24241250) ST1 (M30) 2002-2009 01
674 08642162 BEARING, INPUT SUN GR THR (ACDelco #8642162) ST1 (M30) 2005-2009 01
675 08673300 RACE, LOW CLU RLR INR (ACDelco #8673300) ST1 (M30) 2005-2009 01
676 24200278 RING, LOW REV CLU SUPT RET (ACDelco #24200278) ST1 (M30) 2005-2009 01
677 06261051 RING, LOW CLU RLR RET (ACDelco #6261051) ST1 (M30) 2005-2009 02
678 07471008 ROLLER, LOW CLU (PART OF 679) (*KIT6) (ACDelco #7471008) ST1 (M30) 2005-2009 01
679 08681727 SUPPORT, LOW REV CLU (INCLS 678) (*KIT6) (4.180) (ACDelco #8681727) ST1 (M30) 2002-2008 01
680 06261415 ПРУЖИНА, LOW REV CLU SUPT (ACDelco #6261415) ST1 (M30) 2005-2009 01
681 24226159 CARRIER, REACTION (STANDARD) (W/O DEFLECTOR) (ACDelco #24226159) ST1 (M30) 2002-2009 01
681 24228402 CARRIER, REACTION (HIGH SPEED) (W/DEFLECTOR) (ACDelco #24228402) ST1 (M30) 2005-2009 01
682 08676362 PLATE, LOW REV CLU (WAVED) (ILLUSTRATED AS 682A) (*KIT6) (ACDelco #8676362) ST1 (M30) 2005-2009 01
682 24205268 PLATE, LOW REV CLU (ID BLANK) (ILLUSTRATED AS 682D) (1.829MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205268) ST1 (M30) 2002-2009 04
682 24205269 PLATE, LOW REV CLU (IDENT 0, 8) (ILLUSTRATED AS 682B) (1.314MM) (HAS HOLES IN TURB PLATES) (*KIT6) (ACDelco #24205269) ST1 (M30) 2002-2009 01
682 24205270 PLATE, LOW REV CLU (ID 8) (ILLUSTRATED AS 682B) (2.344MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205270) ST1 (M30) 2002-2009 01
682 24216946 PLATE, LOW REV CLU (FLAT FACED) (ILLUSTRATED AS 682C) (FIBER) (SEGMENTED-DO NOT MIX SEGMENTED W/NON-SEGMENTED СЦЕПЛЕНИЕ PLATES) (*KIT9) (ACDelco #24216946) ST1 (M30) 2005-2009 05
683 08642215 BEARING, REACTION CARR THR (TO SUPT) (52.42 ID X 72.4 OD) (4.176) (ACDelco #8642215) ST1 (M30) 2002-2009 01
684 24233619 GEAR, REACTION INTL (ACDelco #24233619) ST1 (M30) 2005-2009 01
685 24225931 SUPPORT, REACTION INTL GR (ACDelco #24225931) ST1 (M30) 2002-2009 01
686 08642220 RING, INT REACTION GR SUPT RET (ACDelco #8642220) ST1 (M30) 2005-2009 01
687 08683818 SHAFT, OUTPUT (ACDelco #8683818) T1 (M30) 2002-2009 01
688 PLUG, 3-4 CLU HSG FLUID PASG HOLE (PART OF 621) 2002-2009
690 SLEEVE, OUTPUT SHF (NOT REQD) 2002-2009
691 SEAL, OUTPUT SHF (NOT REQD) 2002-2009
692 24217327 BEARING, REACTION CARR THR (TO REACTION SHF) (43.0 ID X 64.57 OD) (ACDelco #24217327) ST1 (M30) 2002-2006 01
693 08647337 RING, LOW REV CLU SPR RET RET (*KIT4, KIT6) (4.159) (ACDelco #8647337) ST1 (M30) 2005-2009 01
694 08642227 ПРУЖИНА, LOW REV CLU (ACDelco #8642227) ST1 (M30) 2005-2009 01
695 08685549 PISTON, LOW REV CLU (*KIT6) (ACDelco #8685549) ST1 (M30) 2005-2009 01
696 08648987 SEAL KIT, LOW REV CLU (SQ RING CTR) (INCLS INR, OTR INTER SEALS) (*KIT2, KIT6) (4.166) (ACDelco #8648987) ST1 (M30) 2005-2009 01
697 DEFLECTOR, REACTION CARR THR BRG LUB 2002-2009
698 08663707 ORIFICE, LUB FLUID (PART OF 621) (4.3MM DIA) (ACDelco #8663707) ST1 (M30) 2005-2009 01
K01 08642919 SEAL KIT, 3-4 CLU PSTN (FOA) (INCLS 622, 636) (ACDelco #8642919) ST1 (M30) 2005-2009 01
K02 24236378 GASKET KIT, A/TRNS SERV (INCLS 608, 618-19, 661, 696) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2, 5 OF THIS TRANSMISSION В СБОРЕ) (W/PISTONS) (ACDelco #24236378) ST1 (M30) 2005-2009 01
K04 24248064 RING KIT, RET (INCLS 610, 635, 638, 661, 693) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE ЧАСТЬ 5 OF THIS TRANSMISSION В СБОРЕ) (ACDelco #24248064) ST1 (M30) 2002-2008 01
K05 24232835 PLATE KIT, FWD CLU (INCLS 649) (INCLS INSTR SHEET FWD СЦЕПЛЕНИЕ PLATES (FIBERS AND STEELS) (ACDelco #24232835) ST1 (M30) 2005-2009 01
K06 08687996 PLATE KIT, LOW REV CLU (INCLS 678-9, 682A, 682B, 682D, 693, 695-6) (STEEL PLATES) (ACDelco #8687996) ST1 (M30) 2005-2009 01
K09 24238603 PLATE KIT, CLU (INCLS 612B, 645B, 649, 682C) (INCLS ONLY 3-4 CLU STEEL PLTS) (INCLS REV INPUT, OVERRUN, FWD, 3-4, LOW/REV FIBER CLU PLT ASM) (ACDelco #24238603) ST1 (M30) 2006-2006 01
