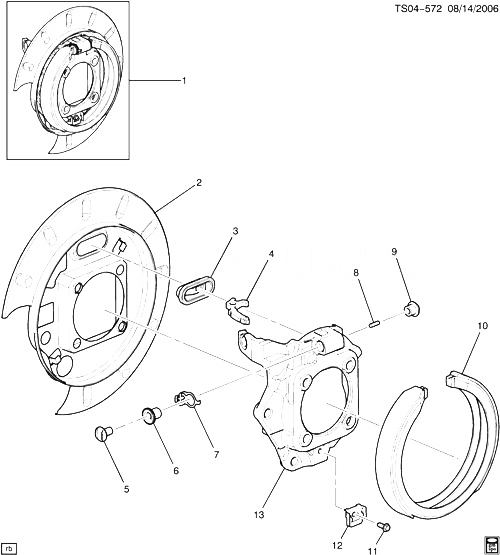

(TS04-572) - 2002-2009 ST1 СТОЯНОЧНЫЙ ТОРМОЗ В СБОРЕ CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15842181 BRAKE, PARK (INCLS 2-13) ST1 2005-2009 01
001 15842182 BRAKE, PARK (INCLS 2-13) ST1 2002-2009 01
002 15158972 SHIELD, RR BRK ST1 2005-2009 01
002 15158973 SHIELD, RR BRK ST1 2002-2009 01
003 COVER, RR PARK BRK ADJ OPG (*KIT1) 2002-2009
004 LEVER, RR PARK BRK (*KIT1) 2002-2009
005 ГАЙКА, RR PARK BRK ADJ (*KIT1) 2002-2009
006 ГАЙКА, RR PARK BRK ADJ (*KIT1) 2002-2009
007 88935744 PAWL, PARK BRK LVR REL (*KIT1) (5.149) ST1 2005-2009 02
008 ROD, RR PARK BRK ACTR LVR PUSH (*KIT1) 2002-2009
009 ACTUATOR, PARK BRK (*KIT1) 2002-2009
010 88935747 LINING KIT, PARK BRK SHOE (INCLS 11, 12) (*KIT1) (ACDelco #171-0930) ST1 2005-2009 02
011 БОЛТ, PARK BRK SHOE ADJR (PART OF 10, 12) (*KIT1) 2002-2009
012 88935748 SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 11) (PART OF 10) (ACDelco #179-2039) ST1 2002-2009 02
013 88935749 PLATE, RR BRK BKG ST1 2005-2009 01
013 88935750 PLATE, RR BRK BKG ST1 2005-2009 01
K01 89027098 BRAKE KIT, RR PARK (INCLS 3-11) (ACDelco #179-2118) ST1 2002-2009 02
