| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

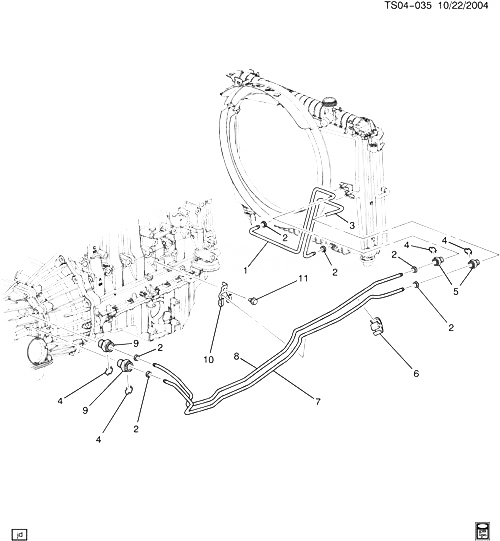

| 001 |
15817514 |
PIPE, TRANS FLUID CLR OTLT (FROM RADIATOR TO CONNECTOR) (INCLS 2, 4, 5) (ACDelco #15817514) |
ST1 (LL8, M30, CJ2, CJ3) |
2005-2009 |
01 |
| 002 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 3, 7, 8) (PLASTIC RETAINER) (ACDelco #15052228)
| ST1 |
2005-2009 |
AR |
|
| 003 |
15817500 |
PIPE, TRANS FLUID CLR INL (FROM RADIATOR TO QUICK CONNECT) (INCLS 2, 4, 5) (ACDelco #15817500)
| ST1 (06-36) (LL8, M30, CJ2, CJ3) |
2002-2008 |
01 |
|
| 004 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 1, 3, 9) (EXPANDING SPRING WIRE) (ACDelco #24205103)
| ST1 |
2005-2009 |
04 |
|
| 005 |
|
CONNECTOR, TRANS FLUID CLR PIPE (PART OF 1, 3) |
|
2002-2009 |
|
| 006 |
15068848 |
CLIP, TRANS FLUID CLR PIPE (LINE TO LINE) (HOLDS 2-9.5MM (3/8) DIA PIPES, CLIP TOP) |
ST1 (LL8, M30) |
2002-2009 |
01 |
| 007 |
15817501 |
PIPE, TRANS FLUID CLR INL (FROM QUICK CONNECT TO TRANS) (INCLS 2) (ACDelco #15817501)
| ST1 (LL8, M30) |
2005-2009 |
01 |
|
| 008 |
15817515 |
PIPE, TRANS FLUID CLR OTLT (FROM QUICK CONNECT TO TRANS) (INCLS 2) (ACDelco #15817515) |
ST1 (LL8, M30) |
2005-2009 |
01 |
| 009 |
24233366 |
FITTING, TRANS FLUID CLR PIPE (INCLS 4) (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (ACDelco #24233366)
| ST1 |
2005-2007 |
02 |
|
| 010 |
15070508 |
CLIP, TRANS FLUID CLR PIPE (LINE TO ENGINE) |
ST1 (LL8, M30) |
2002-2009 |
01 |
| 011 |
11509640 |
БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (TRANS FLUID CLR PIPE CLIP) |
|
2002-2009 |
01 |
