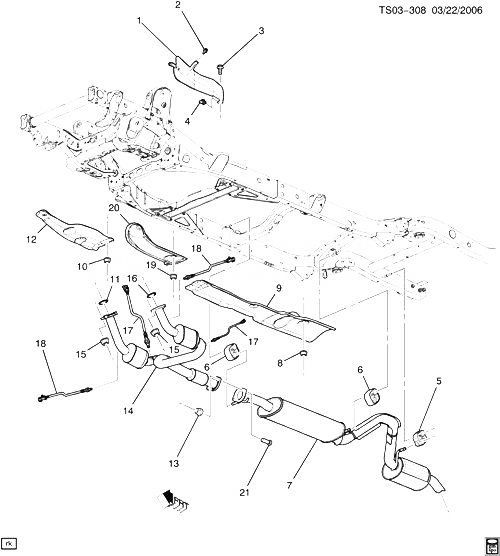

(TS03-308) - 2006 ST158(06) ВЫХЛОПНАЯ СИСТЕМА (LH6/5.3M) CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15170403 SHIELD, EXH HT ST1 2006-2006 01
002 25642453 RETAINER, EXH H/SHLD (6MM DIA) (3.671) ST1 2006-2006 01
003 11519862 БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, 6280M, MACH, MAT-PT (EXH H/SHLD) 2006-2006 01
004 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (EXH H/SHLD) 2006-2006 01
005 15120136 INSULATOR, EXH MUFF RR HNGR (W/2 HANGER HOLES) (3.616) (REAR HANGER) ST1 2006-2006 01
006 15120137 INSULATOR, EXH MUFF HNGR (CENTER HANGER) ST1 2006-2006 01
007 15847574 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 21) ST158 (06) (LH6) (EXC G67) 2006-2006 01
007 15847574 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 21) (3.701) ST158 (06) (LH6) (EXC G67) 2006-2006 01
007 15847574 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 21) (3.701) ST158 (06) (LH6) (EXC G67) 2006-2006 01
007 15847578 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 21) ST158 (06) (LH6, G67) 2006-2006 01
007 15847578 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 21) (3.701) ST158 (06) (LH6, G67) 2006-2006 01
007 15847578 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 21) (3.701) ST158 (06) (LH6, G67) 2006-2006 01
008 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EXH MUFF H/SHLD) 2006-2006 04
009 15821716 SHIELD, EXH MUFF HT ST158 2006-2006 01
010 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CTLTC CONV H/SHLD) 2006-2006 05
011 15035747 SEAL, EXH MANIF PIPE ST158 (LH6) 2006-2006 01
012 15886422 SHIELD, CTLTC CONV HT ST1 (06) 2006-2006 01
013 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF) 2006-2006 02
014 15808213 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) ST158 (LH6) 2006-2006 01
014 15808213 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) ST158 (LH6) 2006-2006 01
015 15032594 ГАЙКА, EXH MANIF PIPE (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) ST1 2006-2006 AR
016 15035747 SEAL, EXH MANIF PIPE ST158 (LH6) 2006-2006 01
016 15077362 SEAL, EXH MANIF PIPE ST1 (LH6) 2006-2006 02
017 12590750 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-3537) (STAMPED WITH PART NUMBER 12590750) (FOR 2ND DES SEE 12600893) ST1 (LH6, LS2) (1ST DES) 2006-2006 02
017 12600893 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-3824) (STAMPED WITH PART NUMBER 12600893) (FOR IST DES SEE 12590750) ST1 (LH6, LS2) (2ND DES) 2006-2006 02
018 12604913 ДАТЧИК, HTD OXY (POSN 2) (ACDelco #213-3839) ST1 (LH6) 2006-2006 02
019 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CTLTC CONV H/SHLD) 2006-2006 02
020 15932097 SHIELD, CTLTC CONV HT ST1 (LH6) 2006-2006 01
021 15028620 STUD, EXH PIPE (PART OF 7) (M10X1.5X30MM) (BUTTON HEAD) ST1 (06) (LH6, LL8) 2006-2006 02
