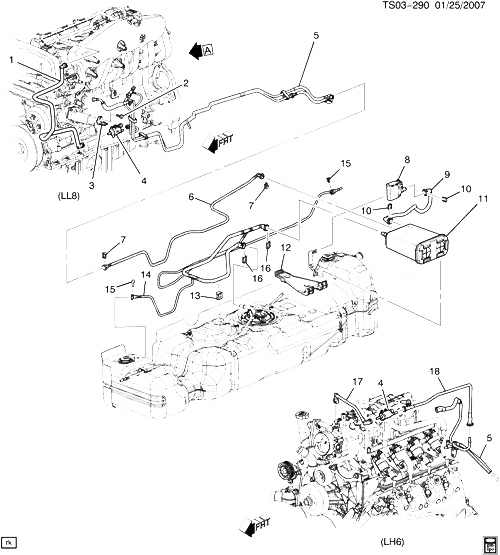

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12597877 |
TUBE, EVAP EMIS CNSTR PURGE |
ST1 (LL8) |
2005-2006 |
01 |
| 002 |
11589241 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (EVAP EMIS CNSTR PURGE SOL VLV BRKT) |
|
2005-2006 |
01 |
| 003 |
24577194 |
BRACKET, EVAP EMIS CNSTR PURGE SOL VLV |
ST1 (LL8) |
2005-2006 |
01 |
| 004 |
12606684 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142)
| ST1 (LH6, LL8, LS2) |
2005-2006 |
01 |
|
| 005 |
|
PIPE, FUEL FEED EVAP EMIS RTN FRT (СМ. ГРУППУ 03.000 ТОПЛИВНАЯ СИСТЕМА FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 006 |
15190484 |
HOSE, EVAP EMIS CNSTR PURGE (INCLS 7) |
ST158 |
2005-2006 |
01 |
| 007 |
22717568 |
RETAINER, FUEL FEED HOSE CONN (PART OF 6) (3/8 INCH QUICK CONNECT RETAINER CLIP) |
ST155, 157, 158 |
2005-2006 |
02 |
| 008 |
25950499 |
VALVE, EVAP EMIS CNSTR VENT SOL (ACDelco #25950499)
| ST1 |
2005-2006 |
01 |
|
| 009 |
15249682 |
PIPE, EVAP EMIS CNSTR VENT (INCLS 10) |
ST158 |
2005-2006 |
01 |
| 010 |
21992746 |
RETAINER, FUEL FEED HOSE CONN (PART OF 9) (5/8 INCH QUICK CONNECT RETAINER CLIP)
| ST155, 157, 158 |
2005-2006 |
02 |
|
| 011 |
15190482 |
CANISTER, EVAP EMIS (ACDelco #215-540) |
ST158 |
2005-2006 |
01 |
| 012 |
|
BRACKET, EVAP EMIS CNSTR VENT SOL VLV (PART OF TANK ASM, FUEL - 03.001) |
|
2005-2006 |
|
| 013 |
15015496 |
CLIP, EVAP EMIS FRT HOSE (6.35 DIA HOLE IN (1THK PNL, HOLDS TWO 7.9DIA NYL TUBES) |
ST1 |
2005-2006 |
02 |
| 014 |
15190485 |
HOSE, EVAP EMIS (INCLS 15, 16) |
ST158 |
2005-2006 |
01 |
| 015 |
21992748 |
RETAINER, FUEL FEED HOSE CONN (PART OF 14) (5/16 INCH QUICK CONNECT RETAINER CLIP)
| ST155, 157, 158 |
2005-2006 |
02 |
|
| 016 |
21992746 |
RETAINER, FUEL FEED HOSE CONN (PART OF 14) (5/8 INCH QUICK CONNECT RETAINER CLIP)
| ST155, 157, 158 |
2005-2006 |
02 |
|
| 017 |
12574897 |
HARNESS, EVAP EMIS CNSTR |
ST1 (LS2, LH6) |
2005-2006 |
01 |
| 018 |
12592088 |
TUBE, EVAP EMIS CNSTR PURGE |
ST1 (LH6, LS2) |
2005-2006 |
01 |
