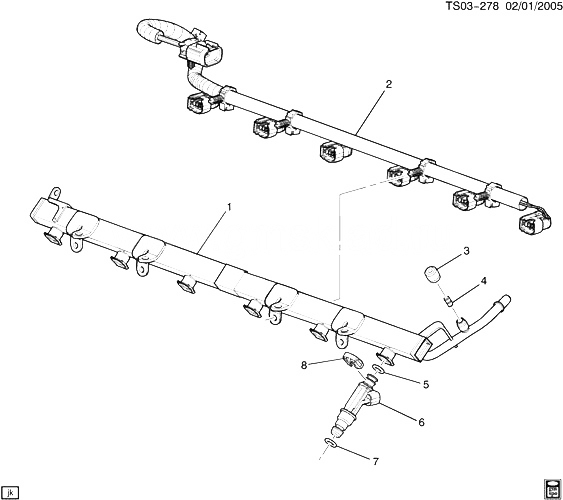

(TS03-278) - 2005-2009 ST РАМА ТОПЛИВНОГО ИНЖЕКТОРА (LL8/4.2S) CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12617904 RAIL KIT, M/PORT F/INJN FUEL (INCLS VALVE, CAP) (INCLS 3, 4) ST1 (LL8) 2005-2009 01
002 12587151 HARNESS, F/INJR WRG ST1 (LL8) 2005-2007 01
003 25532662 CAP, FUEL PRESS SERV VLV (PART OF 1) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044) ST1 2006-2008 01
004 12570619 VALVE KIT, FUEL PRESS SERV (PART OF 1) (ACDelco #12570619) ST1 (LL8) 2005-2009 01
005 SEAL, F/INJR (O RING) (PART OF 6) (*KIT1) 2005-2009
006 12589465 INJECTOR KIT, M/PORT FUEL (INCLS 5, 7, 8) (ACDelco #217-2292) ST1 (LL8) 2006-2006 06
007 SEAL, F/INJR (O RING) (PART OF 6) (*KIT1) 2005-2009
008 12585749 RETAINER, F/INJR (PART OF 6) ST1 (LL8) 2005-2009 06
K01 12587147 SEAL KIT, F/INJR (O RING) (INCLS 5, 7) (W/ 8 UPPER 8 LOWER SEALS) (ACDelco #217-1588) ST1 (LL8) 2005-2007 01
