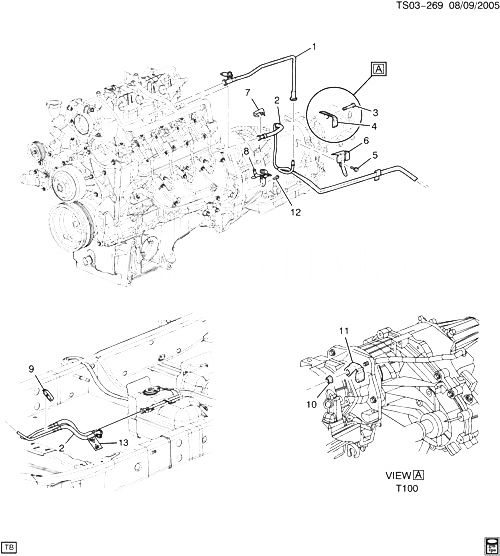

(TS03-269) - 2006-2009 ST1(06) ТОПЛИВНАЯ СИСТЕМА (LH6/5.3M,LS2/6.0H) CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12592088 TUBE, EVAP EMIS CNSTR PURGE ST1 (LH6, LS2) 2005-2006 01
002 25829655 PIPE, FUEL FEED EVAP EMIS RTN FRT (INCLS 8, 9, 13) ST1 (LH6) 2005-2006 01
003 24233360 БОЛТ, T/CV HSG (M10X1.5X45) (TORX) (ACDelco #24233360) ST1 (M30) 2005-2009 08
004 15038808 CLIP, FUEL FEED EVAP EMIS RTN FRT PIPE ST155, 158 (M30, M70) 2006-2006 01
005 11516703 БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED EVAP EMIS RTN PIPE CLIP) (8.977) 2005-2009 01
007 22717568 RETAINER, FUEL FEED HOSE CONN (3/8 INCH QUICK CONNECT RETAINER CLIP) ST1 (LH6, LL8, LS2) 2005-2009 01
008 15103714 BRACKET, F/INJN FUEL FEED RTN PIPE (PART OF 2) ST1 (LH6, LS2) 2006-2006 01
009 15168645 CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 2) (RETAINER) ST1 (LL8, LH6, LS2) 2005-2006 01
010 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) 2005-2009 01
011 15175432 CLIP, FUEL FEED EVAP EMIS RTN PIPE (3.162) T1 2005-2009 01
011 15175432 CLIP, FUEL FEED EVAP EMIS RTN PIPE T1 2005-2009 01
012 11518627 БОЛТ, HFH, M10X1.5X45, 15MM SOCKET, 10.9, GMW3359 (F/INJN FUEL FEED) (ACDelco #11518627) 2005-2009 07
013 LABEL, FUEL FEED PIPE WRNG (PART OF 2) 2006-2009
