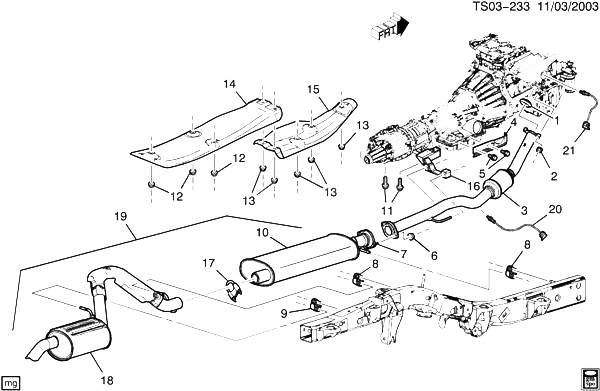

Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
001 |
15167765 |
SEAL, EXH MANIF PIPE
| ST1 (LL8) |
2006-2006 |
01 |
002 |
15032594 |
ГАЙКА, EXH MANIF PIPE (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE)
| ST1 |
2006-2006 |
AR |
003 |
15276513 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) |
ST158 (LL8) |
2006-2006 |
01 |
004 |
15205182 |
SHIELD, CTLTC CONV HT (MOUNTS TO RH SIDE OF TRANS)
| ST1 (06-36) |
2006-2006 |
01 |
005 |
11515754 |
БОЛТ, HVY HEX HD, M8X1.25X12, 18 O.D., 10.9, ZE (CTLTC CONV H/SHLD)
| |
2006-2006 |
02 |
006 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF)
| |
2006-2006 |
02 |
007 |
15028620 |
STUD, EXH PIPE (M10X1.5X30MM) (BUTTON HEAD)
| ST1 (06) (LH6, LL8) |
2006-2006 |
02 |
008 |
15120137 |
INSULATOR, EXH MUFF HNGR (CENTER HANGER) |
ST1 |
2006-2006 |
01 |
009 |
15120136 |
INSULATOR, EXH MUFF RR HNGR (W/2 HANGER HOLES) (3.616) (REAR HANGER) |
ST1 |
2006-2006 |
01 |
010 |
|
MUFFLER, EXH (W/EXH PIPE) (PART OF 19) |
|
2006-2006 |
|
011 |
11518388 |
БОЛТ, TRANS MT (M10X1.5X45)
| T1 |
2006-2006 |
02 |
012 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (EXH MUFF H/SHLD)
| |
2006-2006 |
03 |
013 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (CTLTC CONV H/SHLD)
| |
2006-2006 |
05 |
014 |
15821716 |
SHIELD, EXH MUFF HT |
ST158 |
2006-2006 |
01 |
015 |
15886422 |
SHIELD, CTLTC CONV HT |
ST1 (06-36) |
2006-2006 |
01 |
016 |
89040448 |
MOUNT, TRANS (W/O EXH BRKT ASM)
| T1 (LL8, M30) |
2006-2006 |
01 |
017 |
|
CLAMP, EXH PIPE (2.5) (PART OF 19) |
|
2006-2006 |
|
018 |
|
PIPE, EXH TAIL (PART OF 19) |
|
2006-2006 |
|
019 |
15847573 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10, 17, 18) |
ST158 (06) (LL8) (EXC G67) |
2006-2006 |
01 |
019 |
15847573 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10, 17, 18) (3.701) |
ST158 (06) (LL8) (EXC G67) |
2006-2006 |
01 |
019 |
15847573 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10, 17, 18) (3.701) |
ST158 (06) (LL8) (EXC G67) |
2006-2006 |
01 |
019 |
15847577 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10, 17, 18) |
ST158 (06) (LL8, G67) |
2006-2006 |
01 |
019 |
15847577 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10, 17, 18) (3.701) |
ST158 (06) (LL8, G67) |
2006-2006 |
01 |
019 |
15847577 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10, 17, 18) (3.701) |
ST158 (06) (LL8, G67) |
2006-2006 |
01 |
020 |
12585999 |
ДАТЧИК, HTD OXY (POSN 2) (PRE CONVERTER) (ACDelco #213-3139)
| ST1 (LL8) |
2006-2006 |
01 |
021 |
12592591 |
ДАТЧИК, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-3539)
| ST1 (LL8) |
2006-2006 |
01 |
