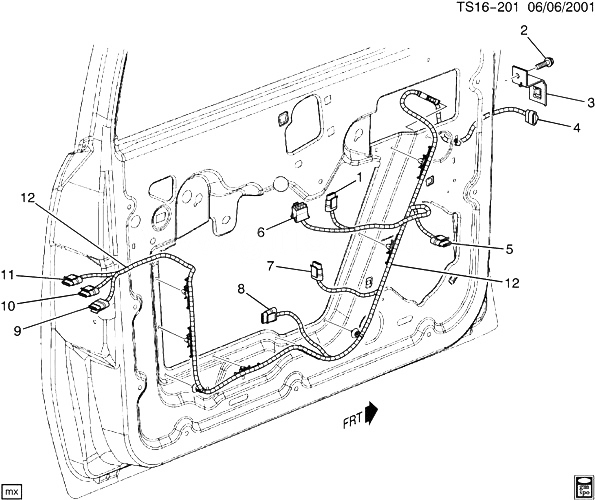

(TS16-201) - 2006-2009 ST(06) ЖГУТ ПРОВОДОВ/ПЕРЕДНЯЯ ДВЕРЬ CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12125636 CONNECTOR, MDL-P/W CONT (PART OF 12) (BLACK) (4-WAY FEMALE) (W/LEADS) (12.243) (ACDelco #PT548) ST1 2002-2009 01
002 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (FRT S/D DR WRG HARN BRKT) (ACDelco #11517518) 2002-2009 02
003 15183876 BRACKET, FRT S/D DR WRG HARN ST1 2005-2009 01
003 15183877 BRACKET, FRT S/D DR WRG HARN ST1 2005-2009 01
004 15306408 CONNECTOR, INLINE-TO BODY HARN (LH, RH FRT DR) (PART OF 12) (9-WAY FEMALE W/LEADS) (W/12 HOLES) (ACDelco #PT1462) ST1 2006-2008 02
005 12101825 CONNECTOR, SPKR-RDO (FRT RR DRS, INDEX TAB CTR CAVITY AB) (PART OF 12) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT217) ST1 (EXC UQA) 2006-2009 04
005 12117323 CONNECTOR, SPKR-RDO (RR DR) (PART OF 12) (BLUE) (2-WAY FEMALE) (W/O LEADS) (10.275) (ACDelco #PT456) ST1 (UQA) 2006-2009 02
005 12125690 CONNECTOR, SPKR-RDO (I/P) (PART OF 12) (GREEN) (2-WAY FEMALE) (W/LEADS) (14.691) (ACDelco #PT601) ST1 (UQA) 2005-2009 02
005 88987981 CONNECTOR, SPKR-RDO (FRT DR) (PART OF 12) (NATURAL) (2-WAY FEMALE) (W/LEADS) (4.589) (ACDelco #PT1769) ST1 2006-2009 02
007 88988609 CONNECTOR, MOT-WDO REG (PART OF 12) (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) ST1 2002-2008 04
008 15306362 CONNECTOR, MDL-INFL RST SI IMP SEN (BLACK TIP) (PART OF 12) (YELLOW) (2-WAY FEMALE GT150 W/LEADS) (14.865) (ACDelco #PT1414) ST1 2005-2006 01
009 12101856 CONNECTOR, SW-DR LK CYL (PART OF 12) (GREEN) (2-WAY FEMALE) (W/LEADS) (OUTSIDE) (2.535) (ACDelco #PT248) ST1 2002-2008 01
010 CONNECTOR, MOT-DR LK ACTR (PART OF 12) 2002-2009
011 15306406 CONNECTOR, SW-SI WDO M/FUNC (PART OF 12) (GRAY) (2-WAY FEMALE) (W/LEADS) (ACDelco #PT1461) ST1 2002-2008 01
011 15306417 CONNECTOR, SW-SI WDO M/FUNC (PART OF 12) (BLUE) (2-WAY FEMALE) (ACDelco #PT1466) ST1 2002-2006 01
012 15240039 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269692.) ST1 (ASF) (EXC UQA) (1ST DES) 2006-2006 01
012 15240039 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269692.) ST1 (EXC ASF, UQA) (1ST DES) 2006-2006 01
012 15240041 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269694) ST1 (ASF) (EXC UA2, UA6, UQA) (1ST DES) 2006-2006 01
012 15240041 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269694.) ST1 (ASF, UA2, UA6) (EXC UQA) (1ST DES) 2006-2006 01
012 15240043 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15913485.) ST1 (ASF, UA2, UA6, UQA) (1ST DES) 2006-2006 01
012 15240043 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15913485.) ST1 (ASF, UQA) (EXC UA2, UA6) (1ST DES) 2006-2006 01
012 15240044 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269697.) ST1 (ASF, UQA) (1ST DES) 2006-2006 01
012 15240044 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269697.) ST1 (UQA) (EXC ASF) (1ST DES) 2006-2006 01
012 15240047 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) ST1 (06-36) (UA2, UA6) (EXC ASF, UQA) 2005-2006 01
012 15240047 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) ST1 (06-36) (EXC ASF, UA2, UA6, UQA) 2006-2006 01
012 15240049 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) ST1 (06-36) (UA2, UA6, UQA) (EXC ASF) 2005-2006 01
012 15240049 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) ST1 (06-36) (UQA) (EXC ASF, UA2, UA6) 2005-2006 01
012 15269697 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240044.) ST1 (06) (UQA) (EXC ASF) (2ND DES) 2006-2006 01
012 15269697 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240044.) ST1 (ASF, UQA) (2ND DES) 2006-2006 01
012 15913481 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240039.) ST1 (06) (ASF) (EXC UQA) (2ND DES) 2006-2006 01
012 15913481 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240039.) ST1 (06) (EXC ASF, UQA) (2ND DES) 2006-2006 01
012 15913483 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240041.) ST1 (ASF) (EXC UA2, UA6, UQA) (2ND DES) 2006-2006 01
012 15913483 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240041.) ST1 (ASF, UA2, UA6) (EXC UQA) (2ND DES) 2006-2006 01
012 15913485 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240043.) ST1 (ASF, UA2, UA6, UQA) (2ND DES) 2006-2006 01
012 15913485 HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240043.) ST1 (ASF, UQA) (EXC UA2, UA6) (2ND DES) 2006-2006 01
