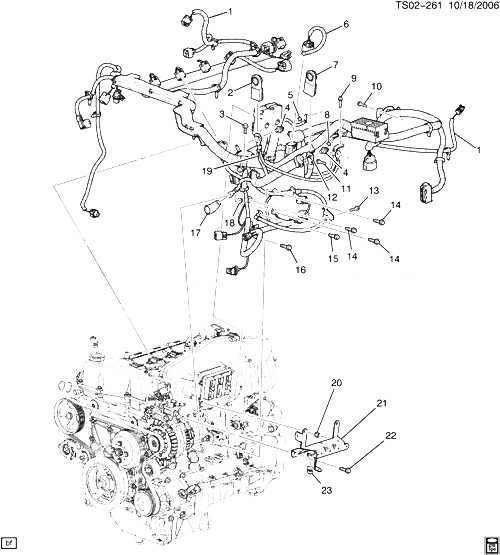

(TS02-261) - 2004-2006 ST ЖГУТ ПРОВОДОВ/ДВИГАТЕЛЬ (LL8/4.2S) CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15866275 HARNESS, ENG WRG (INCLS 2, 4, 7, 9, 12, 17, 19) ST1 (LL8, K18, W49, X88, Z88, Z89) 2006-2006 01
001 15866275 HARNESS, ENG WRG (INCLS 2, 4, 7, 9, 12, 17, 19) ST1 (LL8, X88, Z88, Z89) (EXC K18) 2006-2006 01
002 12160209 COVER, BAT NEG CBL TERM (PART OF 1) (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) ST1 2004-2006 01
003 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (ENG WRG HARN CLIP) (ACDelco #11517518) 2004-2006 01
004 19115561 БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (PART OF 1) (8.900) (ACDelco #19115561) 2004-2006 02
005 21021808 ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS) ST1 2005-2006 01
006 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
007 12160210 COVER, BAT POS CBL TERM (PART OF 1) (RED) (SURROUNDS CABLE END AT BATT SIDE TERM) ST1 2004-2006 01
008 11502848 NUT-HEX STYLE 2 (ENG WRG HARN START MTR LEAD) 2004-2006 01
009 БОЛТ, BAT POS CBL J/BLK (PART OF 1) 2004-2006
010 11516703 БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (ENG WRG HARN CLIP) (8.977) 2004-2006 01
011 11562004 БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN START MOT RLY LEAD CLIP) 2004-2006 01
012 88864196 CABLE, BAT POS (PART OF 1) (2.341) (ALL MAKES) ST158 (06) (LL8) 2004-2006 01
012 88864196 CABLE, BAT POS (PART OF 1) (2.341) (ALL MAKES) T158 (06) (LL8) 2005-2006 01
012 88986186 CABLE, BAT POS (PART OF 1) (1040.0MM) (ACDelco #4SX40-2FSA) ST1 (LL8, M30) 2004-2006 01
013 11518646 БОЛТ, HEX HD, W/CON WA, M6X1X30, 24.33THD, 17 OD, 9.8, 6138M, BLK (BAT NEG CBL) 2004-2006 01
014 11588564 БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN GND) 2004-2006 03
015 11519861 БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 9.8, 6280M, MACH, MAT-PT (BAT NEG CBL) 2004-2006 01
016 11588564 БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN CLIP) 2004-2006 01
017 COVER, GEN WIRE TERM (PART OF 1) 2004-2006
018 11609961 ГАЙКА, BAT POS CBL (8.917) ST1 (06) 2006-2006 01
019 88864188 CABLE, BAT NEG (PART OF 1) (ALL MAKES) ST155, 158 (06) (LL8) 2004-2006 01
019 88864188 CABLE, BAT NEG (PART OF 1) (ALL MAKES) T158 (06) (LL8) 2005-2006 01
019 88987108 CABLE, BAT NEG (PART OF 1) (ACDelco #4SX33-1FSA) ST1 (LL8, M30) 2004-2006 01
020 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (PCM) 2004-2006 02
021 15008622 BRACKET, ENG WRG HARN CLIP (INCLS 23) ST1 (LL8) 2005-2006 01
022 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (ENG WRG HARN CLIP) (ACDelco #11517518) 2004-2006 01
023 ГАЙКА, WRG HARN BRKT (PART OF 21) 2004-2006
