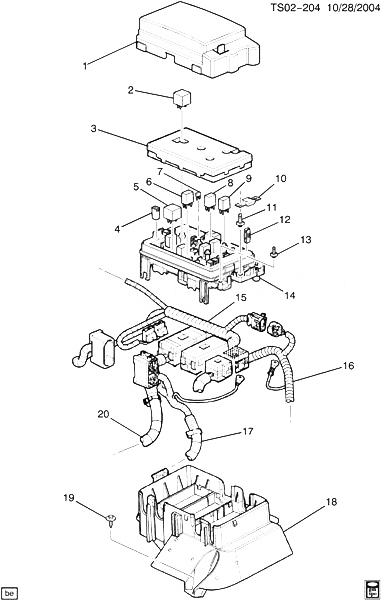

(TS02-204) - 2006 ST(06) КОРОБКА РЕЛЕ И СОЕДИНЕНИЙ CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15141562 COVER, ACSRY WRG J/BLK (ДНИЩЕ BLOCK COVER) ST1 (06-36) (LL8, W49, X88, Z88, Z89) 2006-2006 01
001 15141563 COVER, ACSRY WRG J/BLK ST1 (06-36) (LH6, LS2, W49, X88, Z88, Z89) 2006-2006 01
002 19115082 RELAY, BRK ACCEL PED ADJR SW (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, BLACK, MICRO, CODE 7866) (STDT 280 MICRO) (1.055) (ACDelco #15-50448) ST1 (JF4) 2005-2006 01
003 88987793 COVER, ACSRY WRG J/BLK (PART OF 14) (INNER) ST1 (06-36) 2004-2006 01
004 15319477 FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (PART OF 14) 2004-2006 01
004 15319478 FUSE, 40AMP, GREEN, J-CASE, FEMALE (PART OF 14) (ACDelco #15319478) 2004-2006 03
004 15319480 FUSE, 60 AMP, YELLOW, J-CASE, FEMALE, REGULAR BLOW (PART OF 14) 2004-2006 01
005 12193604 RELAY, STRTR (CODE 3604) (PART OF 14) (GRAY) (SPST 280 MINI) (4-TERMINAL) (CODE 3604) (9.778) (ACDelco #15-8733) ST1 (LH6) 2005-2006 01
006 19115080 RELAY, HDLP HIGH BEAM (CODE 8567) (PART OF 14) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) ST1 2005-2006 01
006 19115080 RELAY, SECD AIR INJN BYPASS VLV WOT (PART OF 14) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) ST1 (LL8) 2004-2006 01
006 19115080 RELAY, F/PMP (PART OF 14) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) ST1 2004-2006 01
006 19115080 RELAY, A/C CMPR (PART OF 14) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) ST1 2004-2006 01
006 19115080 RELAY, WSWA PUMP (PART OF 14) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) ST1 2005-2006 01
007 12092075 FUSE, MINI (30A) (GREEN) (PART OF 14) (ACDelco #12092075) 2004-2006 03
007 88909753 FUSE, MINI, 10 AMP, RED (PART OF 14) 2004-2006 21
007 88909754 FUSE, 15A, MINI, BLUE (PART OF 14) (ACDelco #ATM15-25) 2004-2006 11
007 88909755 FUSE, 20A, MINI, YELLOW (PART OF 14) (ACDelco #ATM20-25) 2004-2006 05
007 88909756 FUSE, 25A, MINI, CLEAR (PART OF 14) (ACDelco #ATM25-25) 2004-2006 02
008 15016745 RELAY, FAN CONT (PART OF 14) (SOLID STATE) (2.485) ST1 2005-2006 01
008 15016745 RELAY, HDLP CUTOFF (PART OF 14) (SOLID STATE) (2.485) ST1 (LL8) 2005-2006 01
008 15016745 RELAY, HDLP (PART OF 14) (SOLID STATE) ST1 2005-2006 01
008 15016745 RELAY, HDLP (PART OF 14) (SOLID STATE) (2.485) ST1 2005-2006 01
009 19115080 RELAY, СИГНАЛ (PART OF 14) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) ST1 2004-2006 01
009 19115080 RELAY, F/PMP (PART OF 14) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) ST1 2004-2006 01
010 12177251 FUSE, 125 AMP MEGA FUSE (PART OF 14) (FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) 2004-2006 01
011 12193775 STUD, ENG WRG HARN J/BLK (PART OF 14) (M8 X 1.25 X 35.9) ST1 2005-2006 01
012 PULLER, FUSE (PART OF 14) 2006-2006
013 БОЛТ, ENG WRG HARN J/BLK (PART OF 14) 2006-2006
014 15141557 BLOCK, ACSRY WRG JUNC (INCLS 3-13) ST158 (06-36) (LL8, X88, Z88, Z89) 2006-2006 01
014 15141559 BLOCK, ACSRY WRG JUNC (INCLS 3-13) ST1 (06) (LH6, LS2, W49, X88, Z88, Z89) 2006-2006 01
015 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
016 HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПЕРЕДНИЕ ФАРЫ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
017 HARNESS, CHAS RR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
018 15210961 BRACKET, ACSRY WRG J/BLK (HAS AN OPENING FOR CHASSIS HARN W/10MM CONDUIT) ST1 2005-2006 01
019 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (ACSRY WRG J/BLK) (T/W 12345493 REPLCS 25534835) 2004-2006 03
020 HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ДВИГАТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
