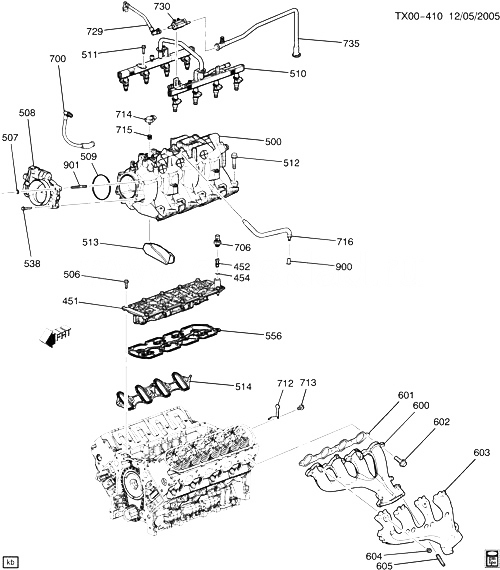

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 451 |
12571609 |
MANIFOLD, VLV LFTR OIL (INCLS 452, 454, 506, 556)
| ST1 (LH6) |
2006-2009 |
01 |
|
| 452 |
12585328 |
FILTER, VLV LFTR OIL (PART OF 451) (INCLS 454)
| ST1 (LH6) |
2006-2009 |
01 |
|
| 454 |
|
SEAL, ENG OIL PRESS SEN (PART OF 451, 452) |
|
2006-2009 |
|
| 500 |
12580420 |
КОЛЛЕКТОР, ВПУСКНОЙ (INCLS 513) |
ST1 (LH6) |
2006-2008 |
01 |
| 506 |
11518075 |
БОЛТ, HFH, THD 22, OD 17, 8.8, GMW14C-PT, HDR POINT (PART OF 451)
|
2006-2009 |
10 |
|
| 507 |
|
ГАЙКА, THROT BODY (*KIT1) |
|
2006-2009 |
|
| 508 |
12580760 |
BODY, THROT (W/THROT ACTR) (ACDelco #217-2422)
| ST1 (LH6) |
2006-2008 |
01 |
|
| 509 |
12589235 |
SEAL, THROT BODY (ACDelco #217-2424)
| ST1 (LH6) |
2006-2009 |
01 |
|
| 510 |
|
RAIL, M/PORT F/INJN FUEL (СМ. ГРУППУ 03.000 РАМА ТОПЛИВНОГО ИНЖЕКТОРА FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2009 |
|
| 511 |
12580910 |
БОЛТ, F/INJR DRVR MDL |
ST1 (LH6) |
2006-2009 |
04 |
| 512 |
12575384 |
БОЛТ, INT MANIF |
ST1 (LH6) |
2006-2009 |
10 |
| 513 |
|
INSULATOR KIT, INT MANIF (PART OF 500) |
|
2006-2009 |
|
| 514 |
89060413 |
GASKET KIT, INT MANIF
| ST1 (LH6) |
2006-2009 |
01 |
|
| 538 |
|
БОЛТ, THROT BODY (*KIT1) |
|
2006-2009 |
|
| 556 |
89017690 |
ПРОКЛАДКА, VLV LFTR OIL UPR MANIF (PART OF 451)
| ST1 (LH6) |
2006-2009 |
01 |
|
| 600 |
12567484 |
КОЛЛЕКТОР, ВЫПУСКНОЙ |
ST1 (LH6) |
2006-2006 |
01 |
| 600 |
12600526 |
КОЛЛЕКТОР, ВЫПУСКНОЙ |
ST1 (LH6) |
2006-2009 |
01 |
| 601 |
12558573 |
ПРОКЛАДКА, EXH MANIF |
ST1 (LH6) |
2006-2006 |
02 |
| 602 |
11518860 |
БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF FLG)
|
2006-2009 |
12 |
|
| 603 |
12597916 |
SHIELD, EXH MANIF HT |
ST1 (LH6) |
2006-2009 |
01 |
| 603 |
12597917 |
SHIELD, EXH MANIF HT |
ST1 (LH6) |
2006-2009 |
01 |
| 604 |
10228350 |
БОЛТ, EXH MANIF H/SHLD (M6X1X6.5 HEX FLANGE)
| ST1 (LH6) |
2006-2008 |
06 |
|
| 605 |
11589264 |
STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE)
|
2006-2009 |
02 |
|
| 700 |
12594124 |
TUBE, PCV (FRESH AIR TUBE) |
ST1 (06-36) (LH6) |
2006-2008 |
01 |
| 706 |
12616646 |
ДАТЧИК, ENG OIL PRESS (ACDelco #D1846A)
| ST1 (06) (LH6) |
2006-2008 |
01 |
|
| 712 |
12578463 |
STOP, F/INJN FUEL RL |
ST1 (LH6) |
2006-2009 |
01 |
| 713 |
11515764 |
БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (F/INJN FUEL RL STOP) |
|
2006-2009 |
07 |
| 714 |
09359409 |
ДАТЧИК, MAP (INCLS SEAL) (INCLS 715) (ACDelco #9359409)
| ST1 (LH6) |
2006-2008 |
01 |
|
| 715 |
16194007 |
SEAL, MAP SEN (PART OF 714) |
ST1 (LH6) |
2006-2009 |
01 |
| 716 |
12611592 |
TUBE, PCV (DIRTY AIR TUBE)
| ST1 (LH6) |
2006-2008 |
01 |
|
| 729 |
12574897 |
HARNESS, EVAP EMIS CNSTR |
ST1 (LS2, LH6) |
2006-2009 |
01 |
| 730 |
12606684 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142)
| ST1 (LH6, LL8, LS2) |
2006-2008 |
01 |
|
| 735 |
12592088 |
TUBE, EVAP EMIS CNSTR PURGE |
ST1 (LH6, LS2) |
2006-2006 |
01 |
| 900 |
12567915 |
FITTING, PCV |
ST1 (LH6) |
2006-2006 |
01 |
| 901 |
|
STUD, THROT BODY (*KIT1) |
|
2006-2009 |
|
| K01 |
89017591 |
BOLT KIT, THROT BODY (INLCS 507, 538, 901) (INCLS BOLT, STUD, NUT) |
ST1 (LH6) |
2006-2009 |
02 |
