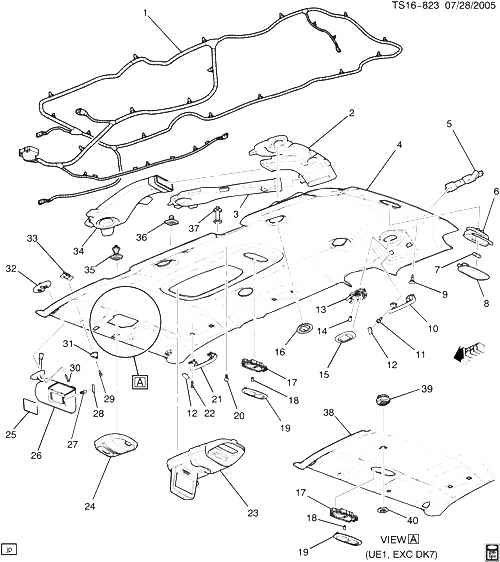

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, DM LP WRG (PART OF 4, 38) |
|
2005-2006 |
|
| 002 |
|
DUCT, RF AUX AIR OTLT (PART OF 4, 38) |
|
2005-2006 |
|
| 003 |
|
DUCT, RF AUX AIR OTLT (PART OF 4, 38) |
|
2005-2006 |
|
| 004 |
19122051 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/DVD, XM LESS RF RAIL AIRBAG) |
ST158 (06) (DK7, U42, 27I, 28I, 48I) (EXC CF5) |
2006-2006 |
01 |
| 004 |
19122053 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/DVD, XM RF RAIL AIRBAG) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151063) |
ST158 (06) (DK7, U42, 27I, 28I, 48I) (EXC CF5) (2ND DES) |
2006-2006 |
01 |
| 004 |
19122059 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/XM LESS RF RAIL AIRBAG) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151058) |
ST158 (06) (DK7, 27I, 28I, 48I) (EXC CF5, U42) (2ND DES) |
2006-2006 |
01 |
| 004 |
19122061 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/XM RF RAIL AIRBAG) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151059) |
ST158 (06) (DK7, 27I, 28I, 48I) (EXC CF5, U42) (2ND DES) |
2006-2006 |
01 |
| 004 |
19151058 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (LESS ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122059) |
ST158 (06) (DK7, 27I, 28I, 48I) (EXC CF5, U42) (1ST DES) |
2006-2006 |
01 |
| 004 |
19151059 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (W/ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122061) |
ST158 (06) (DK7, 27I, 28I, 48I) (EXC CF5, U42) (1ST DES) |
2006-2006 |
01 |
| 004 |
19151062 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (LESS ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122051) |
ST158 (06) (DK7, U42, 27I, 28I, 48I) (EXC CF5) (1ST DES) |
2006-2006 |
01 |
| 004 |
19151063 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (W/ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122053) |
ST158 (06) (DK7, U42, 27I, 28I, 48I) (EXC CF5) (1ST DES) |
2006-2006 |
01 |
| 005 |
|
BRACKET, ASST HDL |
|
2006-2006 |
|
| 006 |
88935735 |
HOUSING, CARGO LP (RR DOME LAMP) |
ST1 |
2005-2006 |
01 |
| 007 |
09431809 |
BULB, 6CP TRADE #212-2 (CARGO LP) (ACDelco #L212-2) |
|
2005-2006 |
01 |
| 008 |
88935736 |
LENS, CARGO LP (RR DOME LAMP) |
ST1 |
2005-2006 |
01 |
| 009 |
89023762 |
RETAINER, HDLNG TR MDL (PUSH IN) (GRAY) (14.640) |
ST158 (06) |
2005-2006 |
02 |
| 010 |
15269144 |
HANDLE, ASST (INCLS 11, 12) (GRAY) |
ST158 (06) (27I, 28I, 47I, 48I) |
2006-2006 |
01 |
| 010 |
15269146 |
HANDLE, ASST (INCLS 11, 12) (GRAY) |
ST158 (06) (27I, 28I, 47I, 48I) |
2005-2006 |
01 |
| 011 |
|
БОЛТ, ASST HDL (PART OF 10) |
|
2005-2006 |
|
| 012 |
10395950 |
COVER, ASST HDL BOLT (PART OF 10, 21) (GRAY) |
ST1 (27I, 28I, 47I, 48I) |
2005-2006 |
AR |
| 014 |
09421330 |
BULB, TRADE#194, 12V, 2CP (R/RL C/LP) (ACDelco #L194)
|
2005-2006 |
02 |
|
| 016 |
15217394 |
DEFLECTOR, AUX A/C AIR OTLT (GRAY) |
ST158 (06) (27I, 28I, 47I, 48I) |
2005-2006 |
04 |
| 017 |
19115097 |
HOUSING, DM RDG LP |
ST1 |
2005-2006 |
01 |
| 018 |
01999382 |
BULB, (DM LP) (ACDelco #W5WLL) (LONGER LIFE)
|
2005-2006 |
02 |
|
| 019 |
19115098 |
BEZEL, DM RDG LP (INCLS LENSES) |
ST1 |
2005-2006 |
01 |
| 020 |
15111596 |
RETAINER, HDLNG T/PNL (PUSH IN) |
ST158 (06) (U42) |
2005-2006 |
02 |
| 020 |
15111596 |
RETAINER, HDLNG T/PNL (PUSH IN) |
ST158 (06) (EXC U42) |
2005-2006 |
03 |
| 021 |
15269142 |
HANDLE, ASST (INCLS 12, 22) (GRAY) |
ST1 (27I, 28I, 47I, 48I) |
2005-2006 |
03 |
| 022 |
|
БОЛТ, ASST HDL (PART OF 21) |
|
2005-2006 |
|
| 023 |
|
DISPLAY, VIDEO W/ DVD (СМ. ГРУППУ 09.000 РАЗВЛЕКАТЕЛЬНАЯ СИСТЕМА/ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 024 |
|
CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 025 |
15006352 |
LABEL, INFL RST SYS WRNG (ENGLISH/FRENCH) |
ST1 (06) (EXC VBW) |
2005-2006 |
02 |
| 025 |
15114992 |
LABEL, INFL RST SYS WRNG (ENGLISH/ARABIC) |
ST1 (AL0, VBX) (EXPORT) |
2005-2006 |
02 |
| 025 |
15116388 |
LABEL, INFL RST SYS WRNG (ENGLISH/SPANISH)
| ST1 (EXC VBW) |
2005-2006 |
02 |
|
| 026 |
15207768 |
SUNSHADE, (INCLS 27, 28) (GRAY) |
ST158 (06) (27I, 28I, 47I, 48I) (EXC DH2, VBW) |
2005-2006 |
01 |
| 026 |
15207770 |
SUNSHADE, (INCLS 27, 28) (GRAY) |
ST158 (06) (27I, 28I, 47I, 48I) (EXC DH2, VBW) |
2005-2006 |
01 |
| 026 |
15207777 |
SUNSHADE, (INCLS 27, 28) (GRAY) |
ST158 (06) (DH2, 27I, 28I, 47I, 48I) (EXC VBW) |
2005-2006 |
01 |
| 026 |
15207778 |
SUNSHADE, (INCLS 27, 28) (GRAY) |
ST158 (06) (DH2, 27I, 28I, 47I, 48I) (EXC VBW) |
2005-2006 |
01 |
| 027 |
09436789 |
BULB, CP-.5 AMP-.9 L-.8 TRADE #37-12VOLT (PART OF 26) (ACDelco #L37) |
|
2005-2006 |
04 |
| 028 |
|
LENS, S/S ILLUM MIR LP (PART OF 26) |
|
2005-2006 |
|
| 029 |
89024603 |
БОЛТ, S/S SUPT (8 X 8 X 20 MM) |
ST158 |
2005-2006 |
02 |
| 030 |
11517072 |
SCREW, PAN HD C/R TAP M4.2X1.41X30 AB POR (S/S RET) (8.913) |
|
2005-2006 |
06 |
| 031 |
89024598 |
RETAINER, S/S (GRAY) (PO PNL PKG SUNSHADE PKG) |
ST158 (06) (27I, 28I, 47I, 48I) |
2005-2006 |
01 |
| 031 |
89024599 |
RETAINER, S/S (GRAY) |
ST158 (06) (27I, 28I, 47I, 48I) |
2005-2006 |
01 |
| 032 |
89024851 |
CLIP, S/S SUPT (RH MODULARITY CLIP) |
ST158 |
2005-2006 |
01 |
| 032 |
89024852 |
CLIP, S/S SUPT (LH MODULARITY CLIP) |
ST158 |
2005-2006 |
01 |
| 033 |
03637204 |
RETAINER, R/RL FRT ASST STRP BOLT (Z-AXIS PINCH TOP RET) (10.219) |
ST158 |
2005-2006 |
02 |
| 034 |
|
DUCT, RF AUX AIR OTLT (PART OF 4, 38) |
|
2005-2006 |
|
| 035 |
11588380 |
SPACER, HDLNG T/PNL (NON-ЛЮК/NON-DVD ONLY) |
ST158 (06) (EXC CF5, U42) |
2005-2006 |
02 |
| 036 |
10280777 |
RETAINER, HDLNG TR MDL (PUSH IN) (BLACK) (26.0 SQ X 7.5 DIA) (W/ VELCRO BACKING) (12.190) |
ST158 (06) |
2005-2006 |
02 |
| 037 |
11588373 |
SPACER, M10X52.5, NYLON 6/6 PER GMP.PA66.015, BRIGHT ORANGE (FOR ID) (HDLNG T/PNL) (16.742) |
|
2005-2006 |
03 |
| 038 |
19122063 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/XM RF RAIL AIRBAG) |
ST158 (06) (27I, 28I, 48I) (EXC A34, CF5, DK7, UE1, U42) |
2006-2006 |
01 |
| 038 |
19122065 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/XM LESS RF RAIL AIRBAG) |
ST158 (06) (27I, 28I, 48I) (EXC A34, CF5, DK7, UE1, U42) |
2006-2006 |
01 |
| 038 |
19122067 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/XM, O/S RF RAIL AIRBAG) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151067) |
ST158 (06) (UE1, 27I, 28I, 48I) (EXC A34, CF5, DK7, U42) (2ND DES) |
2006-2006 |
01 |
| 038 |
19122069 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/XM, O/S LESS RF RAIL AIRBAG) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151066) |
ST158 (06) (UE1, 27I, 28I, 48I) (EXC A34, CF5, DK7, U42) (2ND DES) |
2006-2006 |
01 |
| 038 |
19122071 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/DVD, XM, O/S RF RAIL AIRBAG) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151069) |
ST158 (06) (UE1, U42, 27I, 28I, 48I) (EXC A34, CF5, DK7) (2ND DES) |
2006-2006 |
01 |
| 038 |
19122073 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/DVD, XM, O/S LESS RF RAIL AIRBAG) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151068) |
ST158 (06) (UE1, U42, 27I, 28I, 48I) (EXC A34, CF5, DK7) (2ND DES) |
2006-2006 |
01 |
| 038 |
19122075 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/DVD, XM RF RAIL AIRBAG) |
ST158 (06) (U42, 27I, 28I, 48I) (EXC A34, CF5, DK7, UE1) |
2006-2006 |
01 |
| 038 |
19122077 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (SUBSTRATE W/DVD, XM LESS RF RAIL AIRBAG) |
ST158 (06) (U42, 27I, 28I, 48I) (EXC A34, CF5, DK7, UE1) |
2006-2006 |
01 |
| 038 |
19151066 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (LESS ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122069) |
ST158 (06) (UE1, 27I, 28I, 48I) (EXC A34, CF5, DK7, U42) (1ST DES) |
2006-2006 |
01 |
| 038 |
19151067 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (W/ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122067) |
ST158 (06) (UE1, 27I, 28I, 48I) (EXC A34, CF5, DK7, U42) (1ST DES) |
2006-2006 |
01 |
| 038 |
19151068 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (LESS ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122073) |
ST158 (06) (UE1, U42, 27I, 28I, 48I) (EXC A34, CF5, DK7) (1ST DES) |
2006-2006 |
01 |
| 038 |
19151069 |
PANEL, HDLNG TR (INCLS 1-3, 34) (GRAY) (W/ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122071) |
ST158 (06) (UE1, U42, 27I, 28I, 48I) (EXC A34, CF5, DK7) (1ST DES) |
2006-2006 |
01 |
| 039 |
15264477 |
MICROPHONE, MOBILE TEL (GRAY) |
ST1 (UE1) (EXC CF5, DK7) |
2005-2006 |
01 |
| 040 |
22666403 |
BEZEL, MOBILE TEL MIC (GRAY) |
ST1 (UE1) (EXC CF5, DK7) |
2005-2006 |
01 |
