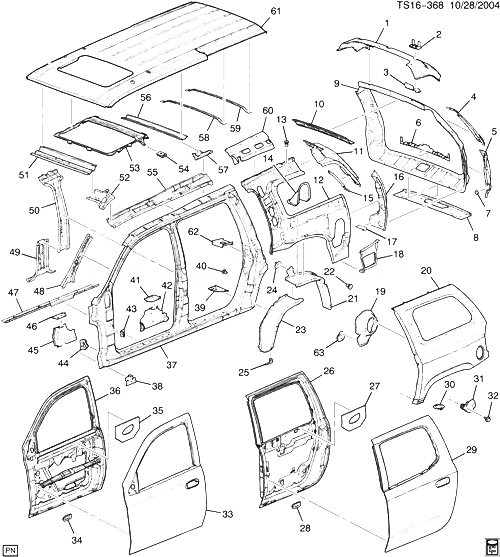

(TS16-368) - 2005-2006 ST158(06) ЛИСТОВОЙ МЕТАЛЛ/КУЗОВ - БОКОВАЯ ЧАСТЬ И КРЫША (SUN ROOF CF5) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12478037 REINFORCEMENT, BK BODY OPG FRM UPR (INCLS 2, 3) (W/BODY LIFT GATE HINGES) ST158 (06) 2005-2006 01
002 HINGE, L/GATE (BODY SI) (PART OF 1) 2005-2006
003 REINFORCEMENT, L/GATE HGE (BODY SI) (PART OF 1) 2005-2006
004 10368619 EXTENSION, BODY SI OTR PNL RR UPR ST158 (06) (X88) 2005-2006 01
004 10368620 EXTENSION, BODY SI OTR PNL RR UPR ST158 (06) (X88) 2005-2006 01
005 15157233 FILLER, T/LP ST1 (06) (X88) 2005-2006 01
005 15157234 FILLER, T/LP ST1 (06) (X88) 2005-2006 01
006 15031061 BRACKET, RR BPR FASCIA ST1 (06) 2005-2006 01
007 15171185 SEALER, BODY SI OTR PNL (TO L/GATE FRM) ST158 (06) 2005-2006 02
008 15094220 REINFORCEMENT, BK BODY OPG FRM LWR ST1 (06) 2005-2006 01
009 15051834 FRAME, BK BODY OPG ST158 (06) 2005-2006 01
010 15051838 EXTENSION, BK BODY OPG FRM UPR ST158 (06) 2005-2006 01
011 88944128 REINFORCEMENT, BK BODY OPG SI FRM (INCLS 15) (UPPER) (INCLS BRKT AND PLATE) ST158 (06) 2005-2006 01
011 88944131 REINFORCEMENT, BK BODY OPG SI FRM (INCLS 15) (UPPER) (INCLS BRKT AND PLATE) ST158 (06) 2005-2006 01
012 89045611 PANEL, BODY SI INR ST158 (06) 2005-2006 01
012 89045612 PANEL, BODY SI INR ST158 (06) 2005-2006 01
013 10268593 ГАЙКА, RIVNUT, M6X1.0, FITS .375 - .413 HOLE, STL, ZN (COAT HOOK) 2005-2006 02
014 15158438 PANEL, F/TNK FIL PIPE HSG ST1 2005-2006 01
015 BRACKET, BODY SI RR T/PNL (PART OF 11) 2005-2006
016 15173956 REINFORCEMENT, BK BODY OPG SI FRM (LOWER) ST158 (06) 2005-2006 01
016 15173957 REINFORCEMENT, BK BODY OPG SI FRM (LOWER) ST158 (06) 2005-2006 01
017 15071010 BRACKET, BK BODY OPG FRM ST1 (06) 2005-2006 01
017 15071011 BRACKET, BK BODY OPG FRM ST1 (06) 2005-2006 01
018 15201660 FILLER, BODY SI OTR PNL ST1 (06) (X88) 2005-2006 01
018 15201661 FILLER, BODY SI OTR PNL ST1 (06) (X88) 2005-2006 01
019 15158439 EXTENSION, F/TNK FIL PIPE HSG ST1 (06) (X88) 2005-2006 01
020 15192229 PANEL, BODY SI OTR ST158 (06) (X88) 2005-2006 01
020 15197145 PANEL, BODY SI OTR ST158 (06) (X88) 2005-2006 01
021 88936993 PANEL, RR W/H OTR (INCLS 24) (INCLS PANEL, PLATE) (12.944) ST1 (06) (X88) 2005-2006 01
021 88936994 PANEL, RR W/H OTR (INCLS 24) (INCLS PANEL, PLATE) (12.944) ST1 (06) (X88) 2005-2006 01
022 10268593 ГАЙКА, RIVNUT, M6X1.0, FITS .375 - .413 HOLE, STL, ZN (RDO SPKR AMPF BRKT) 2005-2006 04
023 15058593 EXTENSION, RR W/H PNL FRT (INCLS UPR LWR EXT) ST158 (06) 2005-2006 01
023 15058594 EXTENSION, RR W/H PNL FRT (INCLS UPR LWR EXT) ST158 (06) 2005-2006 01
024 PLATE, R/SEAT BELT ANC (RETR SI) (PART OF 21) 2005-2006
025 15045211 BRACKET, RKR PNL MLDG ST1 (06) 2006-2006 02
026 89025268 DOOR KIT, RR SI (INCLS 29) (W/O HINGES) ST158 (X88) 2005-2006 01
026 89025269 DOOR KIT, RR SI (INCLS 29) (W/O HINGES) ST158 (X88) 2005-2006 01
027 INSULATOR, RR S/D I/S HDL 2006-2006
028 15065805 PLUG, RR S/D DRN HOLE ST1 2005-2006 02
029 15189769 PANEL, RR S/D OTR (PART OF 26) ST158 (X88) 2005-2006 01
029 15189770 PANEL, RR S/D OTR (PART OF 26) ST158 (X88) 2005-2006 01
030 15908858 PLUG, BODY SI OTR PNL FIL DRN HOLE (APPLIED TO RH FILLER PANEL ONLY) (38.1 MM) (12.980) ST1 (06) 2005-2006 02
031 15776458 DOOR, F/TNK FIL ST1 (06) (X88) 2005-2006 01
032 11589010 SCREW, M4.2X1.4X13 HWH W/FL WA 12.5-OD 6010M TAP GMW4205, BR-PT. (F/TNK FIL DR) 2005-2006 02
033 15079576 PANEL, FRT S/D OTR (PART OF 36) ST1 (06) 2005-2006 01
033 15079577 PANEL, FRT S/D OTR (PART OF 36) ST1 (06) 2005-2006 01
034 15065805 PLUG, FRT S/D DRN HOLE ST1 2005-2006 04
035 INSULATOR, FRT S/D I/S HDL 2006-2006
036 88937088 ДВЕРЬ, ПЕРЕДНЯЯ SI (INCLS 33) (W/O HINGES) ST1 (06) 2005-2006 01
036 88937089 ДВЕРЬ, ПЕРЕДНЯЯ SI (INCLS 33) (W/O HINGES) ST1 (06) 2005-2006 01
037 89045414 FRAME, S/D OPG (INCLS 38, 43, 62) ST158 (06) 2006-2006 01
037 89045415 FRAME, S/D OPG (INCLS 38, 43, 62) ST158 (06) 2006-2006 01
038 15030770 BRACKET, F/FDR RR LWR (PART OF 37) ST1 (06) 2005-2006 01
038 15030771 BRACKET, F/FDR RR LWR (PART OF 37) ST1 (06) 2005-2006 01
039 10397556 BAFFLE, BODY L/PLR LWR INR (C PILLAR) ST158 2005-2006 01
039 10397557 BAFFLE, BODY L/PLR LWR INR (C PILLAR) ST158 2005-2006 01
040 10268593 ГАЙКА, RIVNUT, M6X1.0, FITS .375 - .413 HOLE, STL, ZN (BCM GND) 2005-2006 01
041 15072210 BAFFLE, C/PLR LWR (INR) (AT B PILLAR) ST1 (06) 2005-2006 01
041 15072211 BAFFLE, C/PLR LWR (INR) (AT B PILLAR) ST1 (06) 2005-2006 01
042 15158950 FILLER, RKR INR PNL (B PILLAR) ST1 (06) 2005-2006 02
043 BRACKET, F/FDR RR CTR (PART OF 37) 2005-2006
044 15030712 REINFORCEMENT, BODY SI FRM RKR ST1 (06) 2005-2006 01
044 15030713 REINFORCEMENT, BODY SI FRM RKR ST1 (06) 2005-2006 01
045 15049759 FILLER, RKR INR PNL FRT ST1 (06) 2005-2006 01
045 15049760 FILLER, RKR INR PNL FRT ST1 (06) 2005-2006 01
046 15072208 BAFFLE, BODY H/PLR LWR (A PILLAR) ST1 (06) 2005-2006 01
046 15072209 BAFFLE, BODY H/PLR LWR (A PILLAR) ST1 (06) 2005-2006 01
047 10397546 EXTENSION, FLR PNL ST158 (06) 2005-2006 01
047 10397547 EXTENSION, FLR PNL ST158 (06) 2005-2006 01
048 10386668 PANEL, FRT S/D OPG FRM ST1 (06) 2005-2006 01
048 10386669 PANEL, FRT S/D OPG FRM ST1 (06) 2005-2006 01
049 15066534 PANEL, C/PLR INR LWR (B PILLAR) ST1 (06) 2005-2006 01
049 15066535 PANEL, C/PLR INR LWR (B PILLAR) ST1 (06) 2005-2006 01
050 15299929 PANEL, C/PLR INR UPR (B PILLAR) ST1 (06) 2005-2006 01
050 15299930 PANEL, C/PLR INR UPR (B PILLAR) ST1 (06) 2005-2006 01
051 15243576 PANEL, RF FRT HDR ST1 (06) 2005-2006 01
052 10399499 REINFORCEMENT, S/D OPG FRM UPR (PILLAR) ST1 (06) 2005-2006 01
052 10399500 REINFORCEMENT, S/D OPG FRM UPR (PILLAR) ST1 (06) 2005-2006 01
053 REINFORCEMENT, SUN RF OPG (PART OF 61) 2005-2006
054 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 61) 2005-2006 02
055 89025172 PANEL, S/D HDR ST158 (06) 2005-2006 01
055 89025173 PANEL, S/D HDR ST158 (06) 2005-2006 01
056 15173952 BOW, RF PNL ST158 (06) 2005-2006 01
057 15049793 REINFORCEMENT, RF PNL BOW ST158 (06) 2005-2006 01
057 15083452 REINFORCEMENT, RF PNL BOW ST158 (06) 2005-2006 01
058 15049825 BOW, RF PNL #4 ST158 (06) 2005-2006 01
059 15049825 BOW, RF PNL #5 ST158 (06) 2005-2006 01
060 15190735 PANEL, BODY SI R/WDO HDR ST158 (06) 2005-2006 01
060 15190736 PANEL, BODY SI R/WDO HDR ST158 (06) 2005-2006 01
061 15197200 PANEL, RF (INCLS 53, 54) ST158 (06) (CF5) 2005-2006 01
062 15747903 REINFORCEMENT, BODY L/PLR LWR (PART OF 37) ST158 (06) 2005-2006 01
062 15747904 REINFORCEMENT, BODY L/PLR LWR (PART OF 37) ST158 (06) 2005-2006 01
063 15210660 BRACKET, F/TNK FIL PIPE ST1 (06-36) 2005-2006 01
