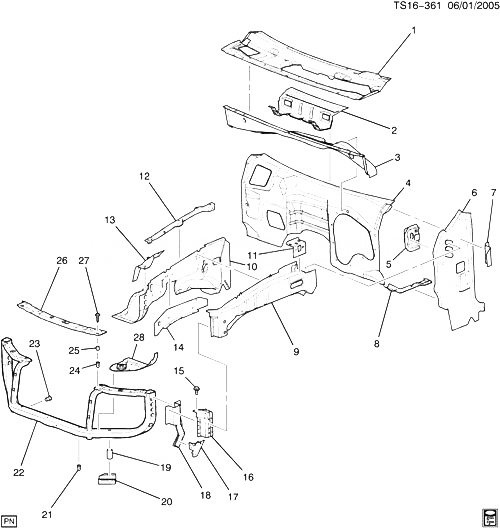

(TS16-361) - 2006-2009 ST1(06) ЛИСТОВОЙ МЕТАЛЛ/ОБТЕКАТЕЛИ И ОТСЕК ДВИГАТЕЛЯ CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88980362 PANEL, PLNM UPR (INCLUDES WELD NUTS STUDS) ST1 (06) 2005-2009 01
002 15752309 REINFORCEMENT, PLNM PNL ST1 (06) 2005-2009 01
003 15126285 PANEL, PLNM FRT ST1 (06) 2003-2009 01
004 88980432 PANEL, DA (T/W 52493545-COVER, 52493544-CASE, 52492933-CASE, 52498635-EVAPORATOR, 52498633-CORE, 52493548-CASE AND 15194270-COVER) ST1 (06) 2003-2009 01
005 15125902 BRACKET, INST CARR ST1 2002-2009 01
005 15125903 BRACKET, INST CARR ST1 2002-2009 01
006 15280946 PANEL, COWL SI ST1 (06) 2005-2009 01
006 15280947 PANEL, COWL SI ST1 (06) 2005-2009 01
007 15054171 REINFORCEMENT, COWL SI UPR ST1 (06) 2005-2009 01
007 15054172 REINFORCEMENT, COWL SI UPR ST1 (06) 2005-2009 01
008 15083333 REINFORCEMENT, COWL SI LWR (COWL SIDE TO FLOOR PANEL) ST1 (06) 2003-2009 01
008 15083334 REINFORCEMENT, COWL SI LWR (COWL SIDE TO FLOOR PANEL) ST1 (06) 2003-2009 01
009 12478029 RAIL, F/CMPT UPR SI (INCLS 11) ST1 (06) 2005-2009 01
009 12478030 RAIL, F/CMPT UPR SI (INCLS 11) ST1 (06) 2005-2009 01
010 19179469 PANEL, FRT W/H RR ST1 (06) 2002-2009 01
010 88980370 PANEL, FRT W/H RR ST1 (06) 2005-2009 01
011 REINFORCEMENT, КАПОТ HGE (BODY SI) (PART OF 9) 2006-2009
012 15127929 BRACKET, F/FDR UPR ST1 (06) 2005-2009 01
012 15127930 BRACKET, F/FDR UPR ST1 (06) 2005-2009 01
013 25885962 REINFORCEMENT, BAT TRAY ST1 2002-2009 01
014 15187077 REINFORCEMENT, FRT W/H PNL ST1 (06) 2005-2009 01
014 15187078 REINFORCEMENT, FRT W/H PNL ST1 (06) 2005-2009 01
015 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (F/CMPT S/RL) (ACDelco #11517518) 2002-2009 02
016 12478035 BRACKET, RAD SUPT (PART OF 22) (1.270) ST1 (06) 2005-2008 01
016 12478036 BRACKET, RAD SUPT (PART OF 22) (1.270) ST1 (06) 2005-2008 01
017 15147253 BRACKET, FRT BPR FASCIA (PART OF 22) ST1 (06) 2005-2009 01
017 15147254 BRACKET, FRT BPR FASCIA (PART OF 22) ST1 (06) 2003-2009 01
018 15032352 REINFORCEMENT, RAD LWR SUPT (PART OF 22) ST1 (06) 2005-2009 01
018 15032353 REINFORCEMENT, RAD LWR SUPT (PART OF 22) ST1 (06) 2005-2009 01
019 SPACER, BODY BOLT (PART OF 22) 2006-2009
020 REINFORCEMENT, BODY MT (PART OF 22) 2006-2009
021 11609317 ГАЙКА, M6X1X19.35, 13.5 OD, 1010 STL, GMW3200, HEX HOLE, GRP RING 0.7-4 (PART OF 22) 2002-2009 02
022 89025314 SUPPORT KIT, RAD (INCLS 16-21, 23-27) ST1 (06) 2005-2009 01
023 11569618 NUT-RIVET HEX SPECIAL, M8X1.25X24.95, SAE 1010 STL, GMW3200 (PART OF 22) 2002-2009 04
024 11569618 NUT-RIVET HEX SPECIAL, M8X1.25X24.95, SAE 1010 STL, GMW3200 (PART OF 22) 2002-2009 04
025 SPACER, RAD SUPT (PART OF 22) 2006-2009
026 15176209 SUPPORT, RAD UPR (PART OF 22) ST1 (06) 2005-2009 01
027 11610010 БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (PART OF 22) 2002-2009 04
028 15076501 PANEL, FRT W/H FRT ST1 (06) 2005-2009 01
028 15077864 PANEL, FRT W/H FRT ST1 (06) 2005-2009 01
