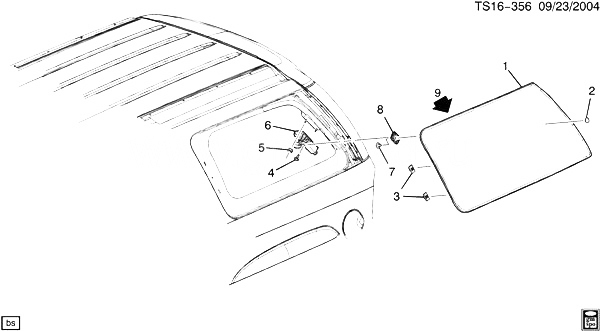

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15807628 |
WINDOW, BODY SI (INCLS 2, 3, 7, 8) (INCLS ACTUATOR BRKT) |
ST158 (06) (AJ1, A34, X88) |
2005-2006 |
01 |
| 001 |
15807629 |
WINDOW, BODY SI (INCLS 2, 3, 7, 8) (INCLS LATCH BRKT) |
ST158 (06) (A34, X88) (EXC AJ1) |
2005-2006 |
01 |
| 001 |
15807630 |
WINDOW, BODY SI (INCLS 2, 3, 7, 8) (INCLS LATCH BRKT) (16.460) |
ST158 (A34, X88) (EXC AJ1) |
2005-2006 |
01 |
| 001 |
15807630 |
WINDOW, BODY SI (INCLS 2, 3, 7, 8) (INCLS LATCH BRKT) |
ST158 (A34, X88) (EXC AJ1) |
2005-2006 |
01 |
| 001 |
15807631 |
WINDOW, BODY SI (INCLS 2, 3, 7, 8) (INCLS ACTUATOR BRKT) |
ST158 (06) (AJ1, A34, X88) |
2005-2006 |
01 |
| 002 |
11588268 |
ГАЙКА, BODY SI R/WDO LAT (PART OF 1) (BLACK) (M5X0.8X8, 10 LONG) (ALUMINUM) |
ST158 (X88, Z88) |
2002-2006 |
02 |
| 003 |
11609697 |
CLIP- 12X14X16.6, SAE 1050-1080, GM6280M, W/SEALER (PART OF 1) |
|
2002-2006 |
04 |
| 004 |
11518618 |
SCREW, TORX, W/WA, M5X0.8X16, 14.4 THD, 14.25 OD, 9.8, 6138M (PART OF 6) |
|
2002-2006 |
02 |
| 005 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200
|
2002-2006 |
06 |
|
| 006 |
15297365 |
ACTUATOR, BODY SI WDO (INCLS 4) (INCLS LINKAGE) |
ST158 (06) (A34) |
2005-2006 |
01 |
| 006 |
15297366 |
ACTUATOR, BODY SI WDO (INCLS 4) (INCLS LINKAGE) |
ST158 (06) (A34) |
2005-2006 |
01 |
| 007 |
11518891 |
БОЛТ, BODY SI WDO (PART OF 1) (M5X0.8X8, 4.4 THD) |
ST158 (X88, Z88, U84) |
2002-2006 |
01 |
| 008 |
|
BRACKET, BODY SI R/WDO (PART OF 1) |
|
2002-2006 |
|
| 009 |
12346392 |
ADHESIVE KIT, GLASS URETHANE (GLS URETHANE) (FOR INSTALLATION OF ALL STATIONARY WINDOW GLASS) |
|
2002-2006 |
AR |
