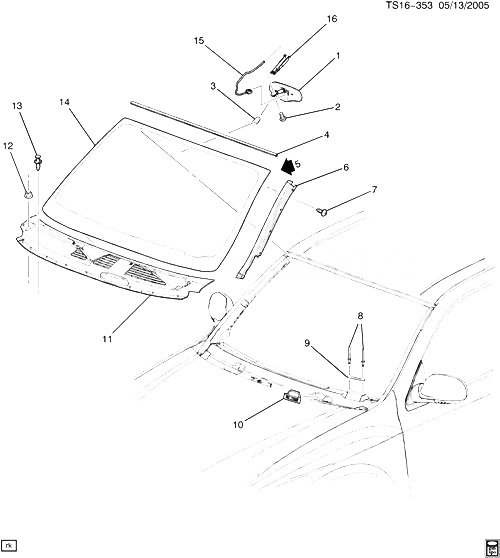

(TS16-353) - 2006-2008 ST1(06) СТЕКЛООЧИСТИТЕЛЬ И СОПРЯЖЕННЫЕ ДЕТАЛИ CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15093039 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (DD7, VCG) (EXC AL0, UE1) 2002-2007 01
001 15125007 MIRROR, I/S RR VIEW (INCLS 2) (FRT PASS/CHILD PRESENCE DETECTOR) ST1 (06) (EXC DD7, DF5, UE1, VCG) 2006-2008 01
001 15125008 MIRROR, I/S RR VIEW (INCLS 2) (FRT PASS/CHILD PRESENCE DETECTOR) ST1 (06) (VCG) (EXC DD7, DF5, UE1) 2006-2006 01
001 15144156 MIRROR, I/S RR VIEW (INCLS 2) (INSIDE) ST1 (06) (UE1, VCG) (EXC DD7, DF5) 2006-2008 01
001 15144157 MIRROR, I/S RR VIEW (INCLS 2) (INSIDE) ST1 (06) (UE1) (EXC DD7, DF5, VCG) 2006-2008 01
001 15144162 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (DD5, UE1) (EXC VCG) 2005-2006 01
001 15144166 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (DD5, UE1, VCG) 2005-2006 01
001 15144171 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (DD5) (EXC UE1, VCG) 2005-2006 01
001 15144172 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (DD5, VCG) (EXC UE1) 2005-2006 01
001 15176974 MIRROR, I/S RR VIEW (INCLS 2) (LT SEN, COMPASS, TEMP, FRT PASS/CHILD PRESENCE DETECTOR) ST1 (06) (DF5) (EXC UE1, VCG) 2006-2008 01
001 15176975 MIRROR, I/S RR VIEW (INCLS 2) (LT SEN, COMPASS, TEMP, FRT PRESENCE DETECTOR) ST1 (06) (DF5, VCG) (EXC UE1) 2006-2008 01
001 15237545 MIRROR, I/S RR VIEW (INCLS 2) (LT SEN, COMPASS, TEMP, FRT PRESENCE DETECTOR, GPS) ST1 (06) (DF5, UE1, VCG) 2006-2008 01
001 15237546 MIRROR, I/S RR VIEW (INCLS 2) (LT SEN, COMPASS, TEMP, FRT PASS/CHILD PRESENCE DETECTOR, GPS) ST1 (06) (DF5, UE1) (EXC VCG) 2006-2008 01
001 15812021 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (DD7, UE1) (EXC VCG) 2006-2008 01
001 15812022 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (DD7, UE1, VCG) 2006-2008 01
001 15812023 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (AL0, DD7, VCG) (EXC UE1) 2006-2007 01
001 15812024 MIRROR, I/S RR VIEW (INCLS 2) ST1 (06) (DD7) (EXC UE1, VCG) 2006-2006 01
002 БОЛТ, I/S RR VIEW MIR (PART OF 1) 2006-2008
003 20626174 BRACKET, I/S RR VIEW MIR (PART OF 14) (10.187) ST1 2006-2008 01
004 15095432 MOLDING, W/S UPR RVL ST1 (06) 2005-2008 01
005 12346392 ADHESIVE KIT, GLASS URETHANE (GLS URETHANE) (FOR INSTALLATION OF ALL STATIONARY WINDOW GLASS) 2002-2008 AR
006 15100759 MOLDING, W/S SI RVL ST1 (06) 2005-2008 01
006 15100760 MOLDING, W/S SI RVL ST1 (06) 2005-2008 01
007 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (W/S SI R/MLDG) 2002-2008 08
008 RIVET, VIN PLT 2006-2008
009 PLATE, VIN (CONTACT APPROPRIATE AUTHORITY GOVERNING MOTOR VEHICLES FOR REPLACEMENT PROCESS) 2006-2008
010 15061964 SUPPORT, W/S ST1 (06) 2002-2008 02
011 PANEL, AIR INL GRL (СМ. ГРУППУ 16.000 СИСТЕМА СТЕКЛООЧИСТИТЕЛЯ/ЛОБОВОЕ СТЕКЛО FOR DETAILED ILLUSTRATED VIEW) 2002-2008
012 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL GRL PNL) 2002-2008 02
013 11561878 RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (AIR INL GRL PNL) 2002-2008 02
014 15892616 WINDSHIELD, (INCLS 3) (INCLUDES RAIN SENSOR MOUNTING RING) (WINDSHIELD NO LONGER HAS SUNSHADE LINE DUE TO PRODUCTION CHANGE) ST1 (CE1) (EXC A26) 2002-2006 01
014 15892617 WINDSHIELD, (INCLS 3) ST1 (A26, CE1) (EXPORT) 2002-2006 01
014 15892620 WINDSHIELD, (INCLS 3) ST1 (Y91) (EXC A26, CE1) 2005-2006 01
014 25799187 WINDSHIELD, (LESS RAIN SENSOR MTG RING) (INCLS 3) (LESS SUNSHADE BAND ON WINDSHIELD) ST1 (06) (X88, Z88, Z89) (EXC A26, CE1, Y91) 2006-2006 01
014 25974700 WINDSHIELD, (INCLS 3) ST1 (A26) (EXC CE1) (EXPORT) 2002-2006 01
015 HARNESS, DM LP WRG (СМ. ГРУППУ 16.000 TRIM/INTERIOR ROOF FOR DETAILED ILLUSTRATED VIEW) 2002-2008
016 10397579 COVER, I/S RR VIEW MIR WRG HARN ST1 2005-2008 01
