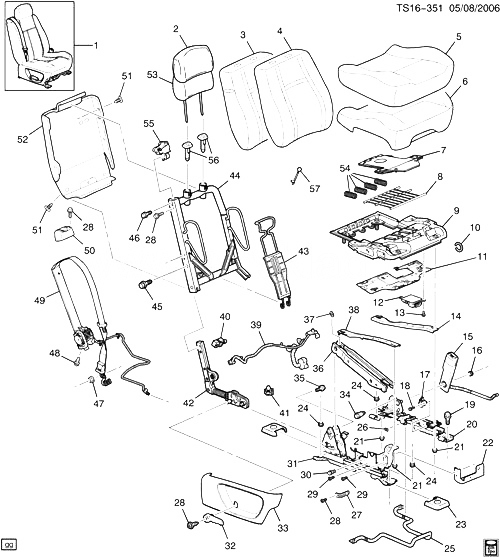

(TS16-351) - 2006-2009 ST(06) СИДЕНЬЕ ПАССАЖИРА/ПОДУШКА СИДЕНЬЯ (AR9,EXC (V40)) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
002 89042178 COVER, P/SEAT H/RST (EBONY) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) 2006-2006 01
002 89042202 COVER, P/SEAT H/RST (GRAY) ST1 (282) 2005-2009 01
002 89042203 COVER, P/SEAT H/RST (CASHMERE) ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) 2006-2007 01
002 89042203 COVER, P/SEAT H/RST (CASHMERE) ST1 (06) (AK5, AR9, X88, 272) (EXC AX4, KA1) 2006-2007 01
003 19151240 PAD, P/SEAT BK CUSH ST1 (AK5, A50, B4U, X88) (EXC AX4) 2006-2009 01
003 19151240 PAD, P/SEAT BK CUSH ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2009 01
003 89042239 PAD, P/SEAT BK CUSH ST1 (EXC B4U) 2005-2009 01
004 19150347 COVER, P/SEAT BK CUSH (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042445) ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4) (2ND DES) 2006-2006 01
004 19151236 COVER, P/SEAT BK CUSH (SS) (EBONY) ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6, 482) (EXC AX4) 2006-2007 01
004 19151285 COVER, P/SEAT BK CUSH (EBONY) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) 2006-2006 01
004 19151339 COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042443) ST1 (06) (AK5, AL0, AR9, KA1, X88, 282) (EXC AX4) (2ND DES) 2006-2006 01
004 19151339 COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042443) ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (EXC AX4) (2ND DES) 2006-2006 01
004 19151340 COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042444) ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) (2ND DES) 2006-2006 01
004 19151340 COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042444) ST1 (06) (AK5, AR9, X88, Z88, Z89, 272) (EXC AX4) (2ND DES) 2006-2006 01
004 19151344 COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK= CARPET) (1ST DES SEE 89042251) ST1 (06) (AK5, AR9, AX4, X88, 28H) (EXC V40) (2ND DES) (EXPORT) 2006-2006 01
004 19151345 COVER, P/SEAT BK CUSH (EBONY) (ST BK TRIM BOTTOM TOEKICK= CARPET) (1ST DES SEE 89042271) ST1 (06) (AK5, AR9, X88, 48H) (EXC V40) (2ND DES) 2006-2006 01
004 89042271 COVER, P/SEAT BK CUSH (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH) (2ND DES SEE 19151345) ST1 (06) (AK5, AR9, X88, 48H) (EXC V40) (1ST DES) 2006-2006 01
004 89042443 COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19151339) ST1 (06) (AK5, AL0, AR9, KA1, X88, 282) (EXC AX4) (1ST DES) 2006-2006 01
004 89042443 COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19151339) ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (1ST DES) 2006-2006 01
004 89042444 COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19151340) ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) (1ST DES) 2006-2006 01
004 89042444 COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19151340) ST1 (06) (AK5, AR9, X88, Z88, Z89, 272) (EXC AX4) (1ST DES) 2006-2006 01
004 89042445 COVER, P/SEAT BK CUSH (EBONY) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19150347) ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4) (1ST DES) 2006-2006 01
005 19151238 COVER, P/SEAT CUSH (SS) (EBONY) ST1 (AK5, AR9, B4U, KA1, X88, 482) (EXC AX4) 2006-2009 01
005 89042269 COVER, P/SEAT CUSH (EBONY) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) 2006-2006 01
005 89042439 COVER, P/SEAT CUSH (GRAY) ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (EXC AX4) 2006-2006 01
005 89042440 COVER, P/SEAT CUSH (CASHMERE) ST1 (06) (AK5, AR9, KA1, X88, 272) 2005-2006 01
005 89042440 COVER, P/SEAT CUSH (CASHMERE) ST1 (AK5, AR9, KA1, X88, Z88, 272) (EXC AX4) 2006-2007 01
005 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (06) (AK5, AR9, KA1, X88, 482) (EXC B4U) 2005-2007 01
005 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, KA1) 2006-2006 01
005 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (AK5, AL0, AR9, KA1, X88, YC6, 482) (EXC AX4, B4U) 2006-2007 01
005 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4, B4U) 2006-2007 01
006 PAD, P/SEAT CUSH (PART OF 12) 2006-2009
007 ДАТЧИК, INFL RST FRT PASS PRESENCE (PART OF 12) 2006-2009
008 89043624 WIRE, P/SEAT CUSH PAD ST1 2005-2009 01
009 89043623 FRAME, P/SEAT CUSH ST1 2005-2009 01
010 04876466 RING, HOG (F/SEAT CUSH CVR HOG) 2005-2009 AR
011 89045016 BRACKET, INFL RST SEN (POWER PASS.) ST1 2005-2009 01
012 19168633 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 6, 7) ST1 2005-2009 01
013 89042167 БОЛТ, P/SEAT (M4 X 12.5) ST1 (AR9) 2005-2007 02
014 89042212 REINFORCEMENT, P/SEAT RSR (I/B) ST1 (AR9, A50) 2005-2007 01
015 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, X88, 48I) 2005-2006 01
015 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, X88, Z88, Z89, 27I) 2005-2007 01
015 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, 48H) 2005-2009 01
015 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (06) (AR9, AK5, X88, Z88, 482) (EXC AX4, KA1) 2006-2006 01
015 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (AR9, X88, 482) 2006-2006 01
015 19148786 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (GRAY) ST1 (AR9, 28I) 2005-2009 01
016 12531799 ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) ST1 2005-2009 01
017 19180158 SENSOR KIT, INFL RST FRT PASS POSN ST1 2005-2009 01
017 88982093 SENSOR KIT, INFL RST FRT PASS POSN (INCLS RIVETS) ST1 2005-2006 01
018 89046203 БОЛТ, INFL RST D/SEAT POSN SEN (8-32X5/8) ST1 2005-2007 02
020 89042234 ADJUSTER, P/SEAT INR (I/B) (2 WAY MANUAL) ST1 2005-2009 01
021 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) 2005-2009 04
022 89039522 BRACKET, P/SEAT WRG HARN ST1 2005-2009 01
023 15133275 COVER, F/SEAT ADJR FIN (EBONY) (4=PASS SIDE 4=DRVR SIDE) ST1 (27I, 48I) 2005-2009 08
023 15133276 COVER, F/SEAT ADJR FIN (GRAY) (3=PASS SIDE 3=DRVR SIDE) ST1 (28I) 2005-2009 08
023 15133277 COVER, F/SEAT ADJR FIN (CASHMERE) (3=PASS SIDE 3=DRVR SIDE) ST1 (47I) 2005-2007 08
024 11519879 ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (P/SEAT) 2005-2009 01
025 89042233 BAR, P/SEAT INR OTR ADJR TIE ST1 2005-2009 01
026 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR HDL) 2005-2009 02
027 89042219 BRACKET, P/SEAT (MANUAL) ST1 (X88, Z88, Z89) 2005-2009 01
027 89042263 BRACKET, P/SEAT (POWER) ST1 2005-2009 AR
028 88949546 БОЛТ, P/SEAT (M4.2X16) (16.686) ST1 (AR9, X88, W49, Z88, Z89) 2005-2007 04
029 88949560 БОЛТ, P/SEAT RECL (M5X0.8X10) ST1 2005-2007 03
030 88949559 БОЛТ, P/SEAT RECL (M10X1.50-6G) (SHOULDER BOLT W/BUSHING) ST1 2005-2007 01
031 89042236 ADJUSTER, P/SEAT OTR (O/B) (MANUAL) ST1 2005-2009 01
032 88949346 HANDLE, P/SEAT RECL (BLACK) ST1 (06) 2005-2009 01
033 89042242 COVER, P/SEAT ADJR FIN (GRAY) (MANUAL) ST1 (AR9, A50, 28I) 2005-2009 01
033 89042243 COVER, P/SEAT ADJR FIN (CASHMERE) (MANUAL) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) 2005-2007 01
033 89042244 COVER, P/SEAT ADJR FIN (EBONY) (MANUAL) ST1 (AR9, A50, 48I) 2005-2009 01
034 88949561 БОЛТ, P/SEAT ADJR ST1 2005-2007 01
035 88949563 БОЛТ, P/SEAT RECL (M14 X 64.5) (SHOULDER BOLT, HEX HEAD) ST1 2005-2007 01
036 89039542 BRACKET, P/SEAT RECL (T/W 89039523 WASHER PLASTIC SNAP-ON) (W/SLOT) ST1 2005-2009 01
038 89042213 REINFORCEMENT, P/SEAT RSR (O/B) ST1 (AR9, A50) 2005-2007 01
039 89026429 HARNESS, P/SEAT WRG ST1 (AK5, AR9, A50) (EXC AX4, B4U) 2006-2009 01
040 88949567 CLIP, P/SEAT WRG (6MM) (NYLON, PUSH-IN DELPHI) (HOLDS ONE WIRE) ST1 2005-2009 02
041 88949567 CLIP, P/SEAT WRG (6MM) (NYLON, PUSH-IN DELPHI) (HOLDS ONE WIRE) ST1 2005-2009 02
042 19150345 RECLINER, P/SEAT (POWER) ST1 (AR9) (EXC AX4) 2006-2009 01
042 19151342 RECLINER, P/SEAT (MANUAL) ST1 (AR9, A50) 2006-2009 01
042 89042237 RECLINER, P/SEAT (MANUAL) ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2006 01
042 89042261 RECLINER, P/SEAT (POWER) ST1 (AK5, AR9, B4U) 2006-2007 01
043 89042268 SUPPORT, P/SEAT LUMBAR (2-WAY POWER) (INCLUDES MOTOR) ST1 (AR9, AK5) 2005-2007 01
044 19151239 FRAME, P/SEAT BK CUSH ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2009 01
044 89042235 FRAME, P/SEAT BK CUSH ST1 (EXC B4U) 2005-2009 01
045 88983477 БОЛТ, P/SEAT RECL (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) ST1 (AR9, A50) 2005-2007 04
046 88983477 БОЛТ, P/SEAT RECL (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) ST1 (AR9, A50) 2005-2007 01
047 12531799 ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) ST1 2005-2009 01
048 88983477 БОЛТ, P/SEAT BELT BRKT (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) (16.682) ST1 2005-2009 01
049 19177470 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (EBONY) (EBONY WEBBING W/EBONY BEZEL) ST1 (AR9, 48I) 2005-2009 01
049 19177471 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (GRAY) ST1 (AR9, 28I) 2005-2007 01
050 89042245 BEZEL, P/SEAT SHLDR BELT OPG (GRAY) ST1 (X88, Z88, Z89, 28I) 2005-2009 01
050 89042247 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) ST1 (48I) 2005-2009 01
051 88948904 RETAINER, P/SEAT BK CUSH INR FIN PNL (16.716) ST1 2005-2009 06
052 88949340 PANEL, P/SEAT BK CUSH INR FIN ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2006 01
052 89045017 PANEL, P/SEAT BK CUSH INR FIN (HARDBACK) ST1 2005-2009 01
053 88979706 PAD, P/SEAT H/RST ST1 2005-2009 01
054 88948986 ПРУЖИНА, P/SEAT CUSH PAD SUPT ST1 2005-2009 04
055 88949336 BRACKET, P/SEAT SHLDR BELT RETR ST1 2005-2009 01
056 89042186 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) ST1 (48I) 2005-2009 01
056 89042187 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) ST1 (47I) 2005-2007 01
056 89042187 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) ST1 (27I) 2006-2007 01
056 89042188 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) ST1 (48I) 2005-2009 01
056 89042189 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) ST1 (27I) 2005-2009 01
056 89043635 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) ST1 (28I) 2005-2009 01
056 89043637 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) ST1 (28I) (EXC AX4) 2005-2009 01
057 89043628 CLIP, P/SEAT ADJR WRG HARN (13.090) ST1 2005-2009 01
