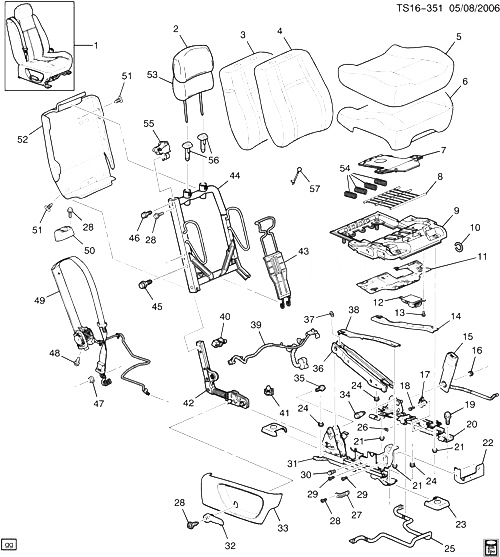

(TS16-351) - 2006-2009 ST(06) СИДЕНЬЕ ПАССАЖИРА/ПОДУШКА СИДЕНЬЯ (A50) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10365824 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810760) ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6, 482) (EXC AX4) (1ST DES) 2006-2006 01
001 10365826 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810762) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) 2006-2006 01
001 15231796 SEAT, PASS (GRAY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810766) ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) (1ST DES) 2006-2006 01
001 15231797 SEAT, PASS (PEWTER) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LTHR) (2ND DES SEE 15810767) ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4) (1ST DES) 2006-2006 01
001 15231798 SEAT, PASS (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LTHR) (2ND DES SEE 15810768) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (1ST DES) 2006-2006 01
001 15248968 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810795) ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, KA1) (1ST DES) 2006-2006 01
001 15248973 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810800) ST1 (06) (AK5, AR9, AL0, X88, KA1, 482) (EXC AX4, B4U) (1ST DES) 2006-2006 01
001 15248985 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810804) ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4) (1ST DES) 2006-2006 01
001 15810762 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 10365826) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (2ND DES) 2006-2006 01
001 15810767 SEAT, PASS (PEWTER) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15231797) ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) (2ND DES) 2006-2006 01
001 15810768 SEAT, PASS (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15231798) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (2ND DES) 2006-2006 01
001 15810795 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248968) ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, KA1) (2ND DES) 2006-2006 01
001 15810800 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248973) ST1 (06) (AK5, AL0, AR9, KA1, X88, 482) (EXC AX4, B4U) (2ND DES) 2006-2006 01
001 15810804 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248985) ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4) (2ND DES) 2006-2006 01
001 15932946 SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6, 482) (EXC AX4) 2006-2006 01
002 89042178 COVER, D/SEAT H/RST (EBONY) ST1 (AK5, AR9, A50, X88, 48H) 2005-2006 01
002 89042179 COVER, D/SEAT H/RST (CASHMERE) ST1 (AK5, A50, X88, 27H) 2005-2006 01
003 89042239 PAD, P/SEAT BK CUSH ST1 (EXC B4U) 2005-2009 01
005 89042249 COVER, P/SEAT CUSH (GRAY) ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) 2005-2006 01
005 89042269 COVER, P/SEAT CUSH (EBONY) ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) 2006-2006 01
005 89042269 COVER, P/SEAT CUSH (EBONY) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) 2006-2006 01
005 89042270 COVER, P/SEAT CUSH (CASHMERE) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) 2006-2006 01
005 89042441 COVER, P/SEAT CUSH (EBONY) ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, KA1) 2006-2006 01
006 PAD, P/SEAT CUSH (PART OF 12) 2006-2009
007 ДАТЧИК, INFL RST FRT PASS PRESENCE (PART OF 12) 2006-2009
008 89043624 WIRE, P/SEAT CUSH PAD ST1 2005-2009 01
009 89043623 FRAME, P/SEAT CUSH ST1 2005-2009 01
010 04876466 RING, HOG (F/SEAT CUSH CVR HOG) 2005-2009 AR
011 89043617 BRACKET, INFL RST SEN ST1 2005-2009 01
011 89045016 BRACKET, INFL RST SEN (POWER PASS.) ST1 2005-2009 01
012 19168633 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 6, 7) ST1 2005-2009 01
013 89042167 БОЛТ, P/SEAT (M4 X 12.5) ST1 (AR9) 2005-2007 02
014 89042212 REINFORCEMENT, P/SEAT RSR (I/B) ST1 (AR9, A50) 2005-2007 01
015 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) ST1 (A50, 27I, 48I) 2005-2006 01
015 19148786 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (GRAY) ST1 (A50, 28I) 2005-2009 01
016 12531799 ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) ST1 2005-2009 01
017 19180158 SENSOR KIT, INFL RST FRT PASS POSN ST1 2005-2009 01
017 88982093 SENSOR KIT, INFL RST FRT PASS POSN (INCLS RIVETS) ST1 2005-2006 01
019 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (P/SEAT) 2005-2007 01
020 89042234 ADJUSTER, P/SEAT INR (I/B) (2 WAY MANUAL) ST1 2005-2009 01
021 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) 2005-2009 04
022 89039522 BRACKET, P/SEAT WRG HARN ST1 2005-2009 01
023 15133275 COVER, F/SEAT ADJR FIN (EBONY) (4=PASS SIDE 4=DRVR SIDE) ST1 (27I, 48I) 2005-2009 08
023 15133276 COVER, F/SEAT ADJR FIN (GRAY) (3=PASS SIDE 3=DRVR SIDE) ST1 (28I) 2005-2009 08
023 15133277 COVER, F/SEAT ADJR FIN (CASHMERE) (3=PASS SIDE 3=DRVR SIDE) ST1 (47I) 2005-2007 08
024 11519879 ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (P/SEAT) 2005-2009 01
025 89042233 BAR, P/SEAT INR OTR ADJR TIE ST1 2005-2009 01
026 88948909 ГАЙКА, P/SEAT ADJR HDL (PUSH NUT, RECTANGULAR) (16.714) ST1 2005-2009 02
027 89042263 BRACKET, P/SEAT (POWER) ST1 2005-2009 AR
028 88949546 БОЛТ, P/SEAT (M4.2X16) (16.686) ST1 (AR9, X88, W49, Z88, Z89) 2005-2007 04
029 88949560 БОЛТ, P/SEAT RECL (M5X0.8X10) ST1 2005-2007 03
030 88949559 БОЛТ, P/SEAT RECL (M10X1.50-6G) (SHOULDER BOLT W/BUSHING) ST1 2005-2007 01
031 89042236 ADJUSTER, P/SEAT OTR (O/B) (MANUAL) ST1 2005-2009 01
032 88949346 HANDLE, P/SEAT RECL (BLACK) ST1 (06) 2005-2009 01
033 89042242 COVER, P/SEAT ADJR FIN (GRAY) (MANUAL) ST1 (AR9, A50, 28I) 2005-2009 01
033 89042243 COVER, P/SEAT ADJR FIN (CASHMERE) (MANUAL) ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) 2005-2007 01
033 89042244 COVER, P/SEAT ADJR FIN (EBONY) (MANUAL) ST1 (AR9, A50, 48I) 2005-2009 01
034 88949561 БОЛТ, P/SEAT ADJR ST1 2005-2007 01
035 88949563 БОЛТ, P/SEAT RECL (M14 X 64.5) (SHOULDER BOLT, HEX HEAD) ST1 2005-2007 01
036 89039542 BRACKET, P/SEAT RECL (T/W 89039523 WASHER PLASTIC SNAP-ON) (W/SLOT) ST1 2005-2009 01
037 89039523 WASHER, P/SEAT (PLASTIC SNAP-ON) ST155, 158 (06) 2005-2007 01
038 89042213 REINFORCEMENT, P/SEAT RSR (O/B) ST1 (AR9, A50) 2005-2007 01
039 89026429 HARNESS, P/SEAT WRG ST1 (AK5, AR9, A50) (EXC AX4, B4U) 2006-2009 01
040 89043619 RETAINER, P/SEAT H/RST ST1 2005-2009 01
041 88949567 CLIP, P/SEAT WRG (6MM) (NYLON, PUSH-IN DELPHI) (HOLDS ONE WIRE) ST1 2005-2009 02
042 19150345 RECLINER, P/SEAT (POWER) ST1 (AR9) (EXC AX4) 2006-2009 01
042 19151342 RECLINER, P/SEAT (MANUAL) ST1 (AR9, A50) 2006-2009 01
042 89042237 RECLINER, P/SEAT (MANUAL) ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2006 01
042 89042261 RECLINER, P/SEAT (POWER) ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6) (EXC AX4) 2006-2006 01
042 89042261 RECLINER, P/SEAT (POWER) ST1 (AK5, AR9, B4U) 2006-2007 01
043 89042238 SUPPORT, P/SEAT LUMBAR (STATIC) ST1 (A50) 2006-2007 01
043 89042238 SUPPORT, P/SEAT LUMBAR (STATIC) ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2007 01
043 89042268 SUPPORT, P/SEAT LUMBAR (2-WAY POWER) (INCLUDES MOTOR) ST1 (282, 482) 2005-2009 01
044 89042235 FRAME, P/SEAT BK CUSH ST155, 158 (06) (AK5, AR9, A50) 2005-2007 01
045 БОЛТ, P/SEAT RECL UPR 2005-2009
046 88983477 БОЛТ, P/SEAT BELT BRKT (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) (16.682) ST1 2005-2009 01
047 12531799 ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) ST1 2005-2009 01
048 88983477 БОЛТ, P/SEAT BELT BRKT (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) (16.682) ST1 2005-2009 01
049 19177470 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (EBONY) (EBONY WEBBING W/EBONY BEZEL) ST1 (06) (A50, 48H) 2005-2006 01
049 19177471 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (GRAY) ST1 (A50, 28H) 2005-2007 01
050 89042245 BEZEL, P/SEAT SHLDR BELT OPG (GRAY) ST1 (X88, Z88, Z89, 28I) 2005-2009 01
050 89042247 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) ST1 (48I) 2005-2009 01
051 88948904 RETAINER, P/SEAT BK CUSH INR FIN PNL (16.716) ST1 2005-2009 06
052 88949340 PANEL, P/SEAT BK CUSH INR FIN ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2006 01
052 89045017 PANEL, P/SEAT BK CUSH INR FIN (HARDBACK) ST1 2005-2009 01
053 88979706 PAD, P/SEAT H/RST ST1 2005-2009 01
054 88948986 ПРУЖИНА, P/SEAT CUSH PAD SUPT ST1 2005-2009 04
055 88949336 BRACKET, P/SEAT SHLDR BELT RETR ST1 2005-2009 01
056 89042186 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) ST1 (48I) 2005-2009 01
056 89042187 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) ST1 (47I) 2005-2007 01
056 89042187 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) ST1 (27I) 2006-2007 01
056 89042188 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) ST1 (48I) 2005-2009 01
056 89042189 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) ST1 (27I) 2005-2009 01
056 89043635 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) ST1 (28I) 2005-2009 01
056 89043637 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) ST1 (28I) (EXC AX4) 2005-2009 01
057 89043628 CLIP, P/SEAT ADJR WRG HARN (13.090) ST1 2005-2009 01
