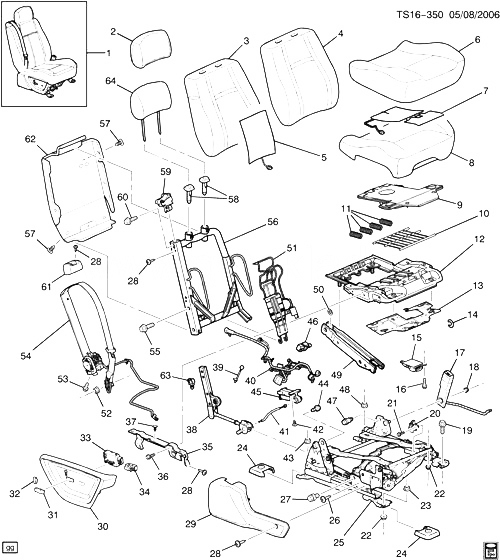

Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
001 |
10365824 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810760) |
ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6, 482) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
001 |
10365826 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810762) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
001 |
15231796 |
SEAT, PASS (GRAY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810766) |
ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
001 |
15231797 |
SEAT, PASS (PEWTER) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LTHR) (2ND DES SEE 15810767) |
ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
001 |
15231798 |
SEAT, PASS (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LTHR) (2ND DES SEE 15810768) |
ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
001 |
15248967 |
SEAT, PASS (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810794) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 272) (EXC AX4, KA1) (1ST DES) |
2006-2006 |
01 |
001 |
15248968 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810795) |
ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, KA1) (1ST DES) |
2006-2006 |
01 |
001 |
15248969 |
SEAT, PASS (GRAY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810796) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (EXC AX4, KA1) (1ST DES) |
2006-2006 |
01 |
001 |
15248971 |
SEAT, PASS (GRAY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810798) |
ST1 (AK5, AL0, AR9, KA1, X88, 282) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
001 |
15248973 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810800) |
ST1 (06) (AK5, AR9, AL0, X88, KA1, 482) (EXC AX4, B4U) (1ST DES) |
2006-2006 |
01 |
001 |
15248985 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH/LEATHER) (2ND DES SEE 15810804) |
ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4) (1ST DES) |
2006-2006 |
01 |
001 |
15810762 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 10365826) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
001 |
15810767 |
SEAT, PASS (PEWTER) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15231797) |
ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) (2ND DES) |
2006-2006 |
01 |
001 |
15810768 |
SEAT, PASS (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15231798) |
ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
001 |
15810794 |
SEAT, PASS (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248967) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 272) (EXC AX4, KA1) (2ND DES) |
2006-2006 |
01 |
001 |
15810795 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248968) |
ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, KA1) (2ND DES) |
2006-2006 |
01 |
001 |
15810796 |
SEAT, PASS (GRAY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248969) |
ST1 (06) (AK5, AR9, X88, Z88, 282) (EXC AX4, KA1) (2ND DES) |
2006-2006 |
01 |
001 |
15810798 |
SEAT, PASS (GRAY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248971) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 282) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
001 |
15810799 |
SEAT, PASS (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248972) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
001 |
15810800 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248973) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 482) (EXC AX4, B4U) (2ND DES) |
2006-2006 |
01 |
001 |
15810802 |
SEAT, PASS (GRAY) |
ST1 (AK5, AR9, KA1, X88, YC6, 282) (EXC AL0, AX4) |
2006-2007 |
01 |
001 |
15810803 |
SEAT, PASS (CASHMERE) |
ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) |
2006-2007 |
01 |
001 |
15810804 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 15248985) |
ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4) (2ND DES) |
2006-2006 |
01 |
001 |
15932946 |
SEAT, PASS (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) |
ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6, 482) (EXC AX4) |
2006-2006 |
01 |
002 |
89042178 |
COVER, P/SEAT H/RST (EBONY) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) |
2006-2006 |
01 |
002 |
89042202 |
COVER, P/SEAT H/RST (GRAY) |
ST1 (282) |
2005-2009 |
01 |
002 |
89042203 |
COVER, P/SEAT H/RST (CASHMERE) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) |
2006-2007 |
01 |
002 |
89042203 |
COVER, P/SEAT H/RST (CASHMERE) |
ST1 (06) (AK5, AR9, X88, 272) (EXC AX4, KA1) |
2006-2007 |
01 |
002 |
89042203 |
COVER, P/SEAT H/RST (CASHMERE) |
ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) |
2006-2007 |
01 |
003 |
19151240 |
PAD, P/SEAT BK CUSH |
ST1 (AK5, A50, B4U, X88) (EXC AX4) |
2006-2009 |
01 |
003 |
19151240 |
PAD, P/SEAT BK CUSH |
ST1 (AK5, AR9, B4U, X88) (EXC AX4) |
2006-2009 |
01 |
003 |
89042239 |
PAD, P/SEAT BK CUSH |
ST1 (EXC B4U) |
2005-2009 |
01 |
004 |
19150347 |
COVER, P/SEAT BK CUSH (EBONY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042445) |
ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
004 |
19151236 |
COVER, P/SEAT BK CUSH (SS) (EBONY) |
ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6, 482) (EXC AX4) |
2006-2007 |
01 |
004 |
19151285 |
COVER, P/SEAT BK CUSH (EBONY) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) |
2006-2006 |
01 |
004 |
19151339 |
COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042443) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 282) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
004 |
19151339 |
COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042443) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
004 |
19151340 |
COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042444) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
004 |
19151340 |
COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CARPET) (1ST DES SEE 89042444) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 272) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
004 |
19151344 |
COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK= CARPET) (1ST DES SEE 89042251) |
ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
004 |
19151345 |
COVER, P/SEAT BK CUSH (EBONY) (ST BK TRIM BOTTOM TOEKICK= CARPET) (1ST DES SEE 89042271) |
ST1 (06) (AK5, AR9, A50, X88, 48H) (EXC B4U) (2ND DES) |
2006-2006 |
01 |
004 |
19151346 |
COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK= CARPET) (1ST DES SEE 89042485) |
ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (2ND DES) |
2006-2006 |
01 |
004 |
89042251 |
COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=CLOTH) (2ND DES SEE 19151344) |
ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
004 |
89042271 |
COVER, P/SEAT BK CUSH (EBONY) (ST BK TRIM BOTTOM TOEKICK=CLOTH) (2ND DES SEE 19151345) |
ST1 (06) (AK5, AR9, A50, X88, 48H) (EXC B4U) (1ST DES) |
2006-2006 |
01 |
004 |
89042443 |
COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19151339) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 282) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
004 |
89042443 |
COVER, P/SEAT BK CUSH (GRAY) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19151339) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (1ST DES) |
2006-2006 |
01 |
004 |
89042444 |
COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19151340) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
004 |
89042444 |
COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19151340) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 272) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
004 |
89042445 |
COVER, P/SEAT BK CUSH (EBONY) (ST BK TRIM BOTTOM TOEKICK=LEATHER) (2ND DES SEE 19150347) |
ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
004 |
89042485 |
COVER, P/SEAT BK CUSH (CASHMERE) (ST BK TRIM BOTTOM TOEKICK=CLOTH) (2ND DES SEE 19151346) |
ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) (1ST DES) |
2006-2006 |
01 |
005 |
88949406 |
HEATER, P/SEAT BK CUSH
| ST1 (KA1) |
2005-2009 |
01 |
006 |
19151238 |
COVER, P/SEAT CUSH (SS) (EBONY) |
ST1 (AK5, AR9, B4U, KA1, X88, 482) (EXC AX4) |
2006-2009 |
01 |
006 |
89042249 |
COVER, P/SEAT CUSH (GRAY) |
ST1 (AK5, AR9, A50, X88, 28H) (EXC AX4) |
2005-2006 |
01 |
006 |
89042269 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (AK5, AR9, A50, X88, 48H) (EXC AX4, B4U) |
2006-2006 |
01 |
006 |
89042269 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) |
2006-2006 |
01 |
006 |
89042270 |
COVER, P/SEAT CUSH (CASHMERE) |
ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) |
2006-2006 |
01 |
006 |
89042439 |
COVER, P/SEAT CUSH (GRAY) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (EXC AX4) |
2006-2006 |
01 |
006 |
89042440 |
COVER, P/SEAT CUSH (CASHMERE)
| ST1 (06) (AK5, AR9, KA1, X88, 272) |
2005-2006 |
01 |
006 |
89042440 |
COVER, P/SEAT CUSH (CASHMERE)
| ST1 (AK5, AR9, KA1, X88, Z88, 272) (EXC AX4) |
2006-2007 |
01 |
006 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (06) (AK5, AR9, KA1, X88, 482) (EXC B4U) |
2005-2007 |
01 |
006 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, KA1) |
2006-2006 |
01 |
006 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (AK5, AL0, AR9, KA1, X88, YC6, 482) (EXC AX4, B4U) |
2006-2007 |
01 |
006 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4, B4U) |
2006-2007 |
01 |
007 |
89042164 |
HEATER, P/SEAT CUSH
| ST1 (AR9) (EXC AX4) |
2005-2009 |
01 |
008 |
|
PAD, P/SEAT CUSH (PART OF 15) |
|
2006-2009 |
|
009 |
|
ДАТЧИК, INFL RST FRT PASS PRESENCE (PART OF 15) |
|
2006-2009 |
|
010 |
89043624 |
WIRE, P/SEAT CUSH PAD |
ST1 |
2005-2009 |
01 |
011 |
88948986 |
ПРУЖИНА, P/SEAT CUSH PAD SUPT |
ST1 |
2005-2009 |
04 |
012 |
89043623 |
FRAME, P/SEAT CUSH |
ST1 |
2005-2009 |
01 |
013 |
89045016 |
BRACKET, INFL RST SEN (POWER PASS.) |
ST1 |
2005-2009 |
01 |
014 |
04876466 |
RING, HOG (F/SEAT CUSH CVR HOG) |
|
2005-2009 |
16 |
015 |
19168633 |
MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 8, 9) |
ST1 |
2005-2009 |
01 |
016 |
89042167 |
БОЛТ, P/SEAT (M4 X 12.5) |
ST1 (AR9) |
2005-2007 |
02 |
017 |
19148785 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) |
ST1 (AR9, X88, 48I) |
2005-2006 |
01 |
017 |
19148785 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) |
ST1 (AR9, X88, Z88, Z89, 27I) |
2005-2007 |
01 |
017 |
19148785 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) |
ST1 (AR9, 48H) |
2005-2009 |
01 |
017 |
19148785 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) |
ST1 (06) (AR9, AK5, X88, Z88, 482) (EXC AX4, KA1) |
2006-2006 |
01 |
017 |
19148785 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) |
ST1 (AR9, X88, 482) |
2006-2006 |
01 |
017 |
19148786 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (GRAY) |
ST1 (AR9, 28I) |
2005-2009 |
01 |
018 |
12531799 |
ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) |
ST1 |
2005-2009 |
01 |
019 |
11519940 |
БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (D/SEAT) |
|
2005-2007 |
01 |
020 |
19180158 |
SENSOR KIT, INFL RST FRT PASS POSN
| ST1 |
2005-2009 |
01 |
020 |
88982093 |
SENSOR KIT, INFL RST FRT PASS POSN (INCLS RIVETS)
| ST1 |
2005-2006 |
01 |
021 |
89046203 |
БОЛТ, P/SEAT INFL RST SUPPRESSION MDL (8-32X5/8) |
ST1 |
2005-2009 |
AR |
022 |
11609746 |
ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR)
| |
2005-2009 |
04 |
023 |
11519879 |
ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (P/SEAT)
| |
2005-2009 |
01 |
024 |
15133275 |
COVER, F/SEAT ADJR FIN (EBONY) (4=PASS SIDE 4=DRVR SIDE) |
ST1 (27I, 48I) |
2005-2009 |
08 |
024 |
15133276 |
COVER, F/SEAT ADJR FIN (GRAY) (3=PASS SIDE 3=DRVR SIDE) |
ST1 (28I) |
2005-2009 |
08 |
024 |
15133277 |
COVER, F/SEAT ADJR FIN (CASHMERE) (3=PASS SIDE 3=DRVR SIDE) |
ST1 (47I) |
2005-2007 |
08 |
025 |
89026673 |
ADJUSTER, P/SEAT (TO SERVICE ADJUSTER WITH SENSOR, ORDER 88982093 SENSOR BRACKET SEPERATELY) (INCLS 32) (6-WAY POWER) (INCLS MOTORS EXC RECL ACTUATOR MOTOR)
| ST1 (AR9) |
2005-2009 |
01 |
026 |
88949560 |
БОЛТ, P/SEAT RECL (M5X0.8X10) |
ST1 (A50, AR9) |
2005-2007 |
03 |
027 |
88949559 |
БОЛТ, P/SEAT RECL (ATTACHES MAIN BODY OF RECLINER TO ADJUSTER) (M10X1.50-6G) (SHOULDER BOLT W/BUSHING) |
ST1 |
2005-2007 |
02 |
028 |
88949546 |
БОЛТ, P/SEAT (M4.2X16) (16.686) |
ST1 (06) (AR9, X88, W49, Z88, Z89) |
2005-2007 |
04 |
029 |
89042265 |
COVER, P/SEAT OTR ADJR LWR FIN (GRAY) |
ST1 (06) (28H, 282) |
2005-2009 |
01 |
029 |
89042266 |
COVER, P/SEAT OTR ADJR LWR FIN (CASHMERE) |
ST1 (06) (272) |
2005-2009 |
01 |
029 |
89042266 |
COVER, P/SEAT OTR ADJR LWR FIN (CASHMERE) |
ST1 (06) (27H, 272) |
2005-2009 |
01 |
029 |
89042267 |
COVER, P/SEAT OTR ADJR LWR FIN (EBONY) |
ST1 (48H, 482) |
2005-2009 |
01 |
030 |
19121432 |
COVER, P/SEAT OTR ADJR UPR FIN (GRAY) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 282) (EXC AX4) |
2006-2006 |
01 |
030 |
19121432 |
COVER, P/SEAT OTR ADJR UPR FIN (GRAY) |
ST1 (AK5, AR9, X88, Z88, Z89, 282) (EXC AX4, KA1) |
2006-2006 |
01 |
030 |
19121432 |
COVER, P/SEAT OTR ADJR UPR FIN (GRAY) |
ST1 (AK5, AR9, AX4, X88, 272, 282) (EXPORT) |
2006-2009 |
01 |
030 |
19121433 |
COVER, P/SEAT OTR ADJR UPR FIN (CASHMERE)
| ST1 (AK5, AR9, AX4, X88, 282) (EXPORT) |
2006-2006 |
01 |
030 |
19121433 |
COVER, P/SEAT OTR ADJR UPR FIN (CASHMERE)
| ST1 (AR9) |
2006-2009 |
01 |
030 |
19121433 |
COVER, P/SEAT OTR ADJR UPR FIN (CASHMERE)
| ST1 (AR9, 272) |
2006-2009 |
01 |
030 |
19121434 |
COVER, P/SEAT OTR ADJR UPR FIN (EBONY) |
ST1 (AR9, 482) |
2006-2009 |
01 |
030 |
89042253 |
COVER, P/SEAT OTR ADJR UPR FIN (GRAY) |
ST1 (AK5, AR9, KA1, X88, YC6, 282) (EXC AL0, AX4) |
2006-2006 |
01 |
030 |
89042254 |
COVER, P/SEAT OTR ADJR UPR FIN (CASHMERE) |
ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) |
2006-2007 |
01 |
031 |
15256984 |
KNOB, P/SEAT ADJR SW (EBONY)
| ST1 |
2005-2009 |
01 |
032 |
25752511 |
KNOB, P/SEAT RECL (GRAY) (11.377) |
ST1 (06) (X88, Z88, Z89, 28I) (EXC AX4) |
2006-2009 |
01 |
032 |
25770401 |
KNOB, P/SEAT RECL (CASHMERE) (11.377) |
ST1 (AR9, 27I) |
2005-2009 |
01 |
032 |
89043626 |
KNOB, P/SEAT RECL (EBONY) (11.588)
| ST1 (AR9, 28H, 28I, 48I) |
2005-2009 |
01 |
033 |
89042262 |
SWITCH, P/SEAT ADJR RECL (11.588) |
ST1 (AR9) |
2005-2007 |
01 |
034 |
19121422 |
SWITCH, P/SEAT LUMBAR CONT (2-WAY) |
ST1 (AR9) |
2006-2009 |
01 |
035 |
89042219 |
BRACKET, P/SEAT (MANUAL) |
ST1 (X88, Z88, Z89) |
2005-2009 |
01 |
035 |
89042263 |
BRACKET, P/SEAT (POWER) |
ST1 |
2005-2009 |
AR |
036 |
12470011 |
БОЛТ, P/SEAT SI INFL RST MDL (M6X1.0X12.4) (16.670) |
ST1 |
2005-2009 |
02 |
037 |
88948904 |
RETAINER, P/SEAT BK CUSH INR FIN PNL (16.716)
| ST1 |
2005-2009 |
06 |
038 |
19150345 |
RECLINER, P/SEAT (POWER) |
ST1 (AR9) (EXC AX4) |
2006-2009 |
01 |
038 |
19151342 |
RECLINER, P/SEAT (MANUAL) |
ST1 (AR9, A50) |
2006-2009 |
01 |
038 |
89042237 |
RECLINER, P/SEAT (MANUAL) |
ST1 (AK5, AR9, B4U, X88) (EXC AX4) |
2006-2006 |
01 |
038 |
89042261 |
RECLINER, P/SEAT (POWER) |
ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6) (EXC AX4) |
2006-2006 |
01 |
038 |
89042261 |
RECLINER, P/SEAT (POWER) |
ST1 (AK5, AR9, B4U) |
2006-2007 |
01 |
039 |
89043628 |
CLIP, P/SEAT ADJR WRG HARN (13.090) |
ST1 |
2005-2009 |
01 |
040 |
19121435 |
HARNESS, P/SEAT ADJR WRG (W/HEAT) |
ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6) (EXC AX4) |
2006-2007 |
01 |
040 |
19121435 |
HARNESS, P/SEAT ADJR WRG (W/HEAT) |
ST1 (AK5, AL0, AR9, KA1, X88, 272, 282, 482) (EXC AX4) |
2006-2007 |
01 |
041 |
88950998 |
CABLE, P/SEAT RECL ACTR (W/O POTENTIOMETER) |
ST1 |
2005-2009 |
01 |
042 |
|
RIVIT, (PROCURE LOCALLY) |
|
2006-2009 |
|
043 |
11519879 |
ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (P/SEAT)
| |
2005-2009 |
02 |
044 |
88949563 |
БОЛТ, P/SEAT RECL (ATTACHES RECL TO ADJUSTER) (M14 X 64.5) (SHOULDER BOLT, HEX HEAD) |
ST1 |
2005-2007 |
01 |
045 |
89039409 |
MOTOR, P/SEAT RECL ACTR (MOTOR ONLY) (PART OF 19152357 KIT) (ACDelco #89039409) |
ST1 |
2005-2009 |
01 |
046 |
89043619 |
RETAINER, P/SEAT H/RST |
ST1 |
2005-2009 |
01 |
047 |
88949561 |
БОЛТ, P/SEAT ADJR (ATTACHES BACK РАМА TO ADJUSTER INBOARD) |
ST1 |
2005-2007 |
01 |
048 |
11588541 |
NUT ASM - HEX AND CONICAL SPR WA, M12X1.75, GM510M (10) STL CA, GM7111M ZE (P/SEAT) (8.917) |
|
2005-2009 |
01 |
049 |
89039542 |
BRACKET, P/SEAT RECL (T/W 89039523 WASHER PLASTIC SNAP-ON) (W/SLOT) |
ST1 |
2005-2009 |
01 |
050 |
89039523 |
WASHER, P/SEAT (PLASTIC SNAP-ON) |
ST1 |
2005-2009 |
01 |
051 |
89042268 |
SUPPORT, P/SEAT LUMBAR (2-WAY POWER) (INCLUDES MOTOR) |
ST1 (AR9, AK5) |
2005-2007 |
01 |
052 |
12531799 |
ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) |
ST1 |
2005-2009 |
01 |
053 |
88949554 |
БОЛТ, P/SEAT BELT BRKT |
ST1 |
2005-2007 |
02 |
054 |
19177470 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (EBONY) (EBONY WEBBING W/EBONY BEZEL) |
ST1 (AR9, 48I) |
2005-2009 |
01 |
054 |
19177471 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (GRAY) |
ST1 (AR9, 28I) |
2005-2007 |
01 |
055 |
88983477 |
БОЛТ, P/SEAT RECL (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) |
ST1 (AR9, A50) |
2005-2007 |
04 |
056 |
19151239 |
FRAME, P/SEAT BK CUSH |
ST1 (AK5, AR9, B4U, X88) (EXC AX4) |
2006-2009 |
01 |
056 |
89042235 |
FRAME, P/SEAT BK CUSH |
ST1 (EXC B4U) |
2005-2009 |
01 |
057 |
88948904 |
RETAINER, P/SEAT BK CUSH INR FIN PNL (16.716)
| ST1 |
2005-2009 |
06 |
058 |
89042186 |
GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) |
ST1 (48I) |
2005-2009 |
01 |
058 |
89042187 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) |
ST1 (47I) |
2005-2007 |
01 |
058 |
89042187 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) |
ST1 (27I) |
2006-2007 |
01 |
058 |
89042188 |
GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) |
ST1 (48I) |
2005-2009 |
01 |
058 |
89042189 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) |
ST1 (27I) |
2005-2009 |
01 |
058 |
89043635 |
GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) |
ST1 (28I) |
2005-2009 |
01 |
058 |
89043637 |
GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) |
ST1 (28I) (EXC AX4) |
2005-2009 |
01 |
059 |
88949336 |
BRACKET, P/SEAT SHLDR BELT RETR |
ST1 |
2005-2009 |
01 |
060 |
88983477 |
БОЛТ, P/SEAT BELT BRKT (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) (16.682) |
ST1 |
2005-2009 |
01 |
061 |
89042245 |
BEZEL, P/SEAT SHLDR BELT OPG (GRAY) |
ST1 (X88, Z88, Z89, 28I) |
2005-2009 |
01 |
061 |
89042247 |
BEZEL, P/SEAT SHLDR BELT OPG (EBONY) |
ST1 (48I) |
2005-2009 |
01 |
062 |
88949340 |
PANEL, P/SEAT BK CUSH INR FIN |
ST1 (AK5, AR9, B4U, X88) (EXC AX4) |
2006-2006 |
01 |
062 |
89045017 |
PANEL, P/SEAT BK CUSH INR FIN (HARDBACK) |
ST1 |
2005-2009 |
01 |
063 |
88949567 |
CLIP, P/SEAT WRG (6MM) (NYLON, PUSH-IN DELPHI) (HOLDS ONE WIRE) |
ST1 |
2005-2009 |
02 |
064 |
88979706 |
PAD, P/SEAT H/RST |
ST1 |
2005-2009 |
01 |
