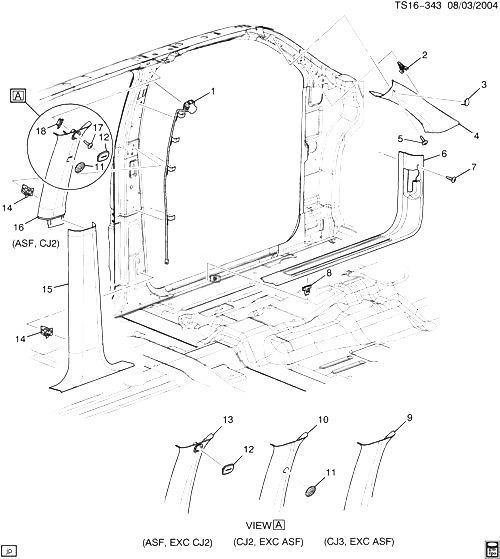

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15188388 |
ДАТЧИК, I/S AIR TEMP (ACDelco #15-50103) |
ST1 (CJ2) |
2005-2007 |
01 |
| 002 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 4)
|
2005-2007 |
02 |
|
| 003 |
10391654 |
CAP, W/S SI G/MLDG BOLT (PART OF 4) (GRAY)
| ST1 (27I, 48I) |
2005-2007 |
01 |
|
| 004 |
15782063 |
MOLDING, W/S SI GARN (INCLS 2, 3, 5) (GRAY) |
ST1 (27I, 48I) |
2005-2007 |
01 |
| 004 |
15782063 |
MOLDING, W/S SI GARN (INCLS 2, 3, 5) (GRAY) |
ST1 (28I) |
2005-2007 |
01 |
| 005 |
11609460 |
SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 4)
|
2005-2007 |
02 |
|
| 006 |
15125629 |
PLATE, FRT S/D SILL TR (INCLS 8) (EBONY)
| ST1 (06) (X88, 27I, 48I) |
2005-2007 |
01 |
|
| 006 |
15125630 |
PLATE, FRT S/D SILL TR (INCLS 8) (GRAY) |
ST1 (06) (X88, 28I) |
2005-2007 |
01 |
| 007 |
15117274 |
RETAINER, FRT S/D SILL TR PLT (GRAY) (PLASTIC) |
ST1 (06) (28I) |
2005-2007 |
02 |
| 007 |
15125627 |
RETAINER, FRT S/D SILL TR PLT (EBONY) (PLASTIC) |
ST1 (06) (27I, 48I) |
2005-2007 |
02 |
| 008 |
11588861 |
RETAINER, FRT S/D SILL TR PLT (PART OF 6) (SILVER) (STEEL) |
ST1 |
2005-2007 |
08 |
| 009 |
15235687 |
MOLDING, C/PLR UPR GARN (INCLS 14) (GRAY) |
ST1 (CJ3, 27I, 28I, 48I) (EXC ASF) |
2006-2007 |
01 |
| 010 |
15207504 |
MOLDING, C/PLR UPR GARN (INCLS 11, 14) (CASHMERE) |
ST1 (CJ2, 47I) (EXC ASF) |
2005-2007 |
01 |
| 011 |
89023843 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 10, 16) (CASHMERE) |
ST1 (CJ2, 47I) |
2005-2007 |
01 |
| 011 |
89023848 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 10, 16) (GRAY) |
ST1 (CJ2, 27I, 28I, 48I) |
2005-2007 |
01 |
| 012 |
10391817 |
CAP, C/PLR UPR T/PNL BOLT (PART OF 13, 16) (CASHMERE) |
ST1 (ASF, CJ2, CJ3, 47I) |
2005-2007 |
02 |
| 012 |
10391818 |
CAP, C/PLR UPR T/PNL BOLT (PART OF 13, 16) (GRAY) |
ST1 (CJ2, CJ3, 27I, 28I, 48I) |
2006-2007 |
02 |
| 013 |
15233539 |
MOLDING, C/PLR UPR GARN (INCLS 12, 14, 17, 18) (GRAY) |
ST1 (ASF, CJ3, 27I, 28I, 48I) |
2005-2007 |
01 |
| 014 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 9, 10, 13, 15, 16)
|
2005-2007 |
16 |
|
| 015 |
15110539 |
MOLDING, C/PLR LWR GARN (INCLS 14) (CASHMERE) |
ST1 (47I) |
2005-2007 |
01 |
| 015 |
15246138 |
MOLDING, C/PLR LWR GARN (INCLS 14) (EBONY)
| ST1 (27I, 48I) |
2005-2007 |
01 |
|
| 015 |
15246140 |
MOLDING, C/PLR LWR GARN (INCLS 14) (GRAY) |
ST1 (28I) |
2005-2007 |
01 |
| 016 |
15233544 |
MOLDING, C/PLR UPR GARN (INCLS 11, 12, 14, 17, 18) (CASHMERE) |
ST1 (ASF, CJ2, 47I) |
2005-2007 |
01 |
| 016 |
15233545 |
MOLDING, C/PLR UPR GARN (INCLS 11, 12, 14, 17, 18) (GRAY) |
ST1 (ASF, CJ2, 27I, 28I, 48I) |
2005-2007 |
01 |
| 017 |
11609460 |
SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 13, 16)
|
2005-2007 |
02 |
|
| 018 |
11518447 |
CLIP, C/PLR UPR T/PNL (PART OF 13, 16) (TRIM TO BODY-UPR) (10.056) |
ST1 (CJ2) |
2005-2007 |
02 |
| 018 |
11518447 |
CLIP, C/PLR UPR T/PNL (PART OF 13, 16) (TRIM TO BODY-UPR) (10.056) |
ST1 (CJ3) |
2005-2007 |
02 |
